FORWARD 800W D15 957 WH FB
FORWARD 800W D15 957 WH FB
830 Wluminaire power
93000 lmlight flow
112 lm/Wenergy efficiency
code1864002860
beam angleD15
color temperature5700
weight28 kg
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
830 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
luminaire power
830 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІ
material
Алюминий
weight
28 kg
length, mm
710 mm
width, mm
620 mm
height, mm
350 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
340 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1864002860
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
112 lm/W
color rendition index (CRI)
>90
light flow
93000 lm
flickering factor
<1%

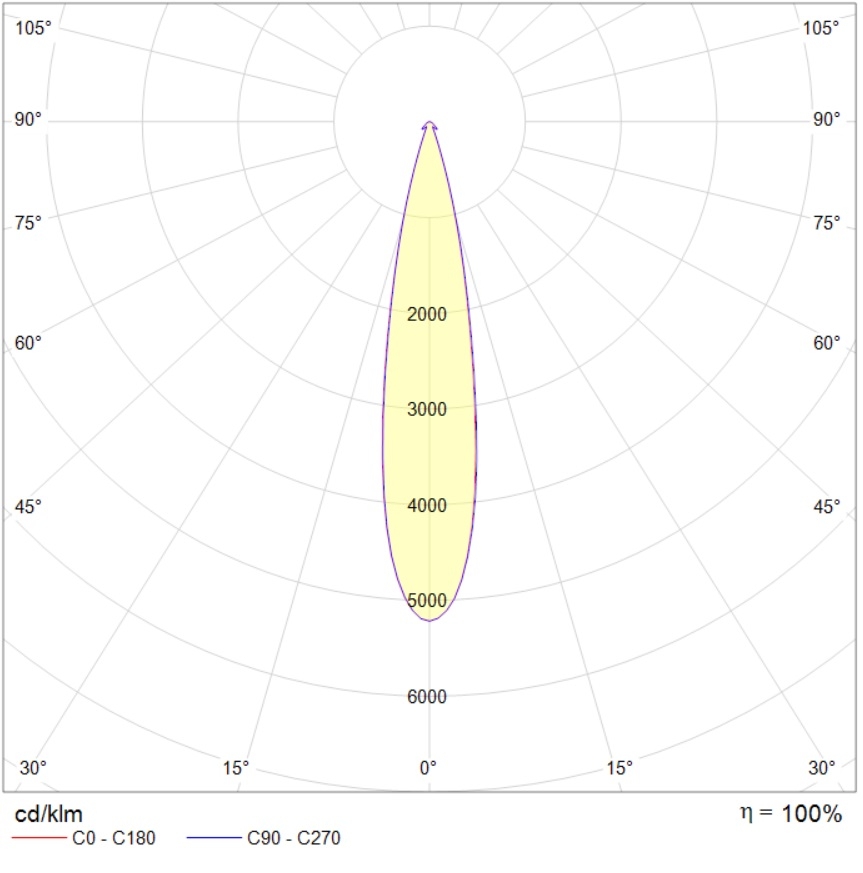

beam angle
D15
color temperature
5700
light source type
LED
emission color
Белый
model files
model files
photometric files
сертификаты
photometric files
jpg83.6 kB
ldt173.5 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
