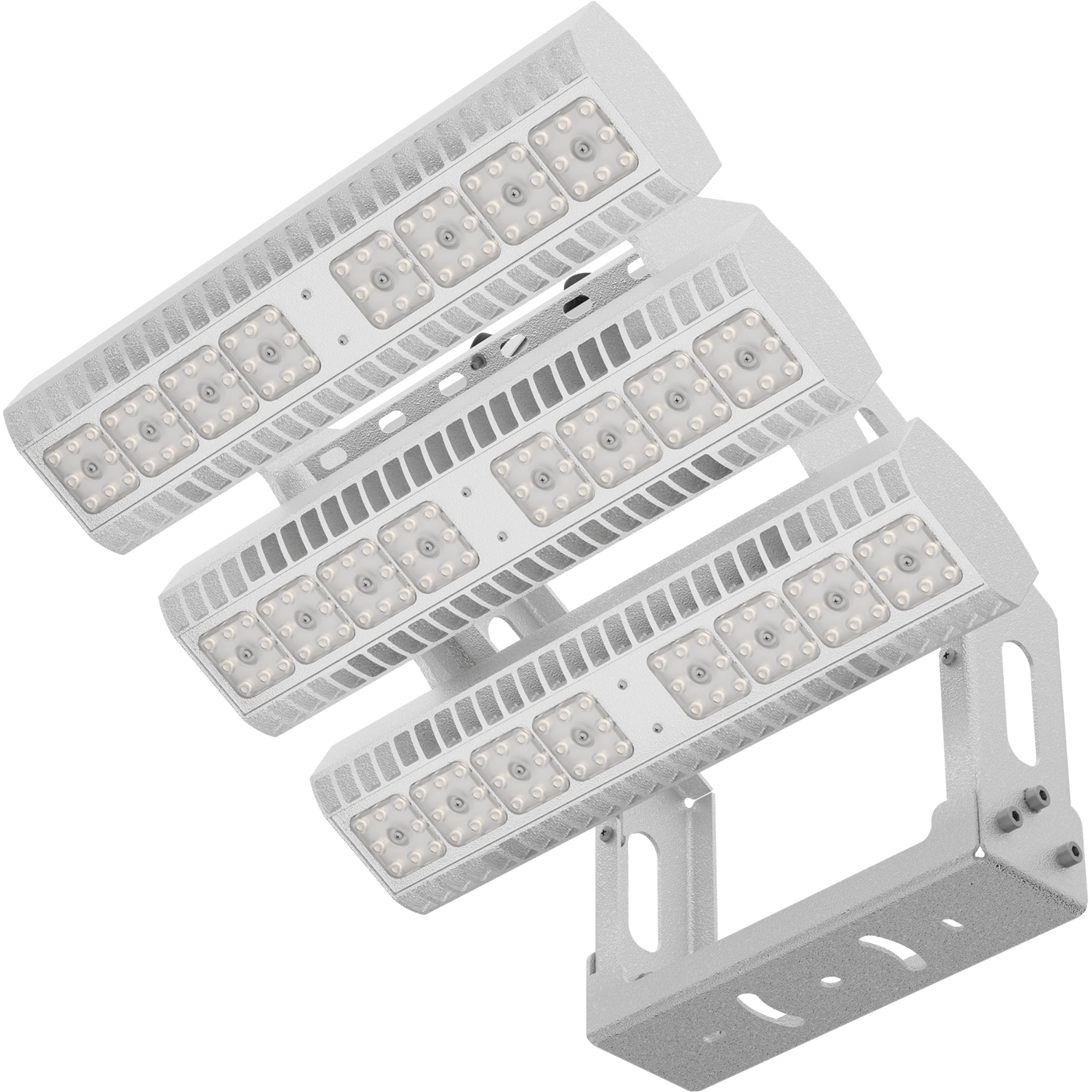

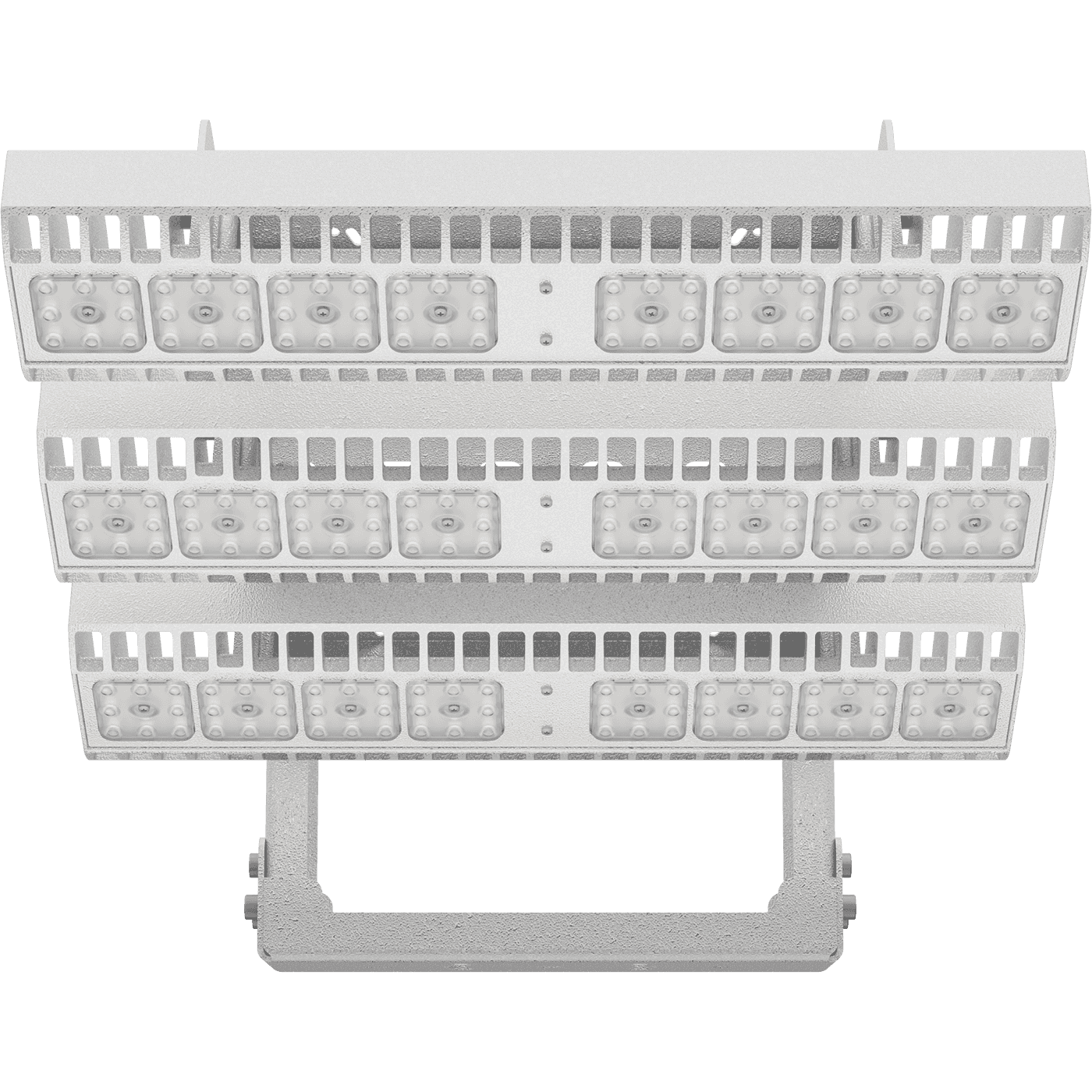

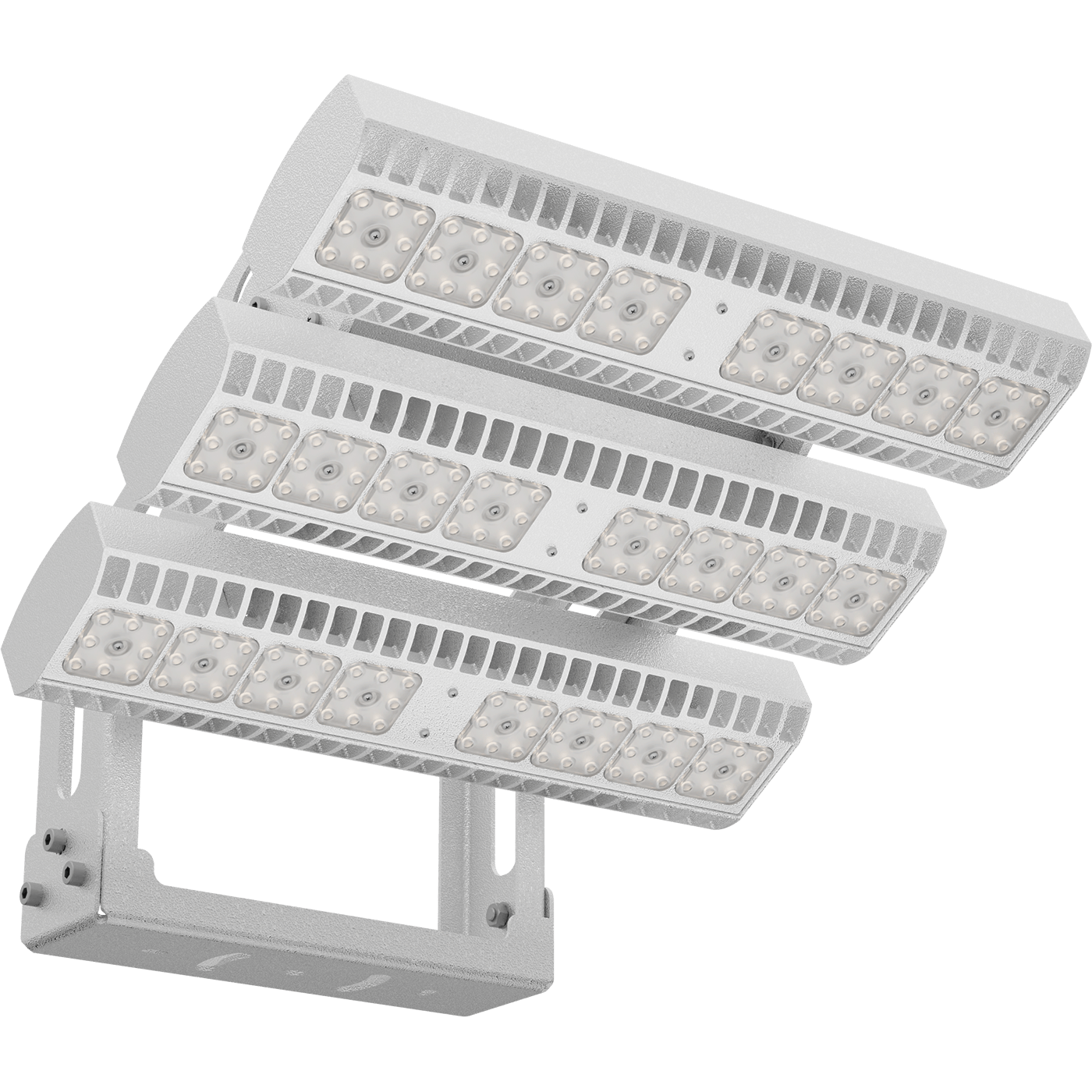

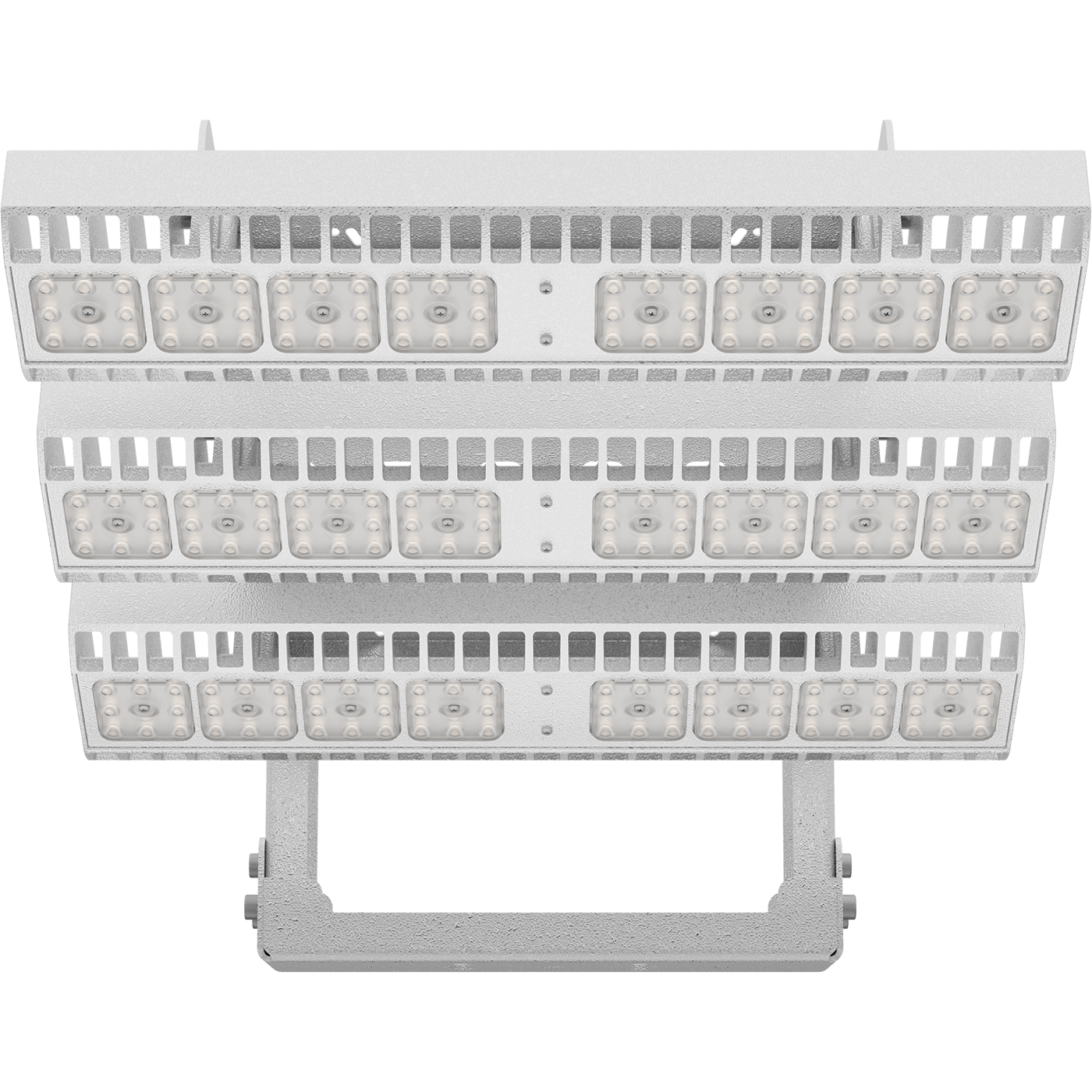

FORWARD 450W D130 957 WH FB
FORWARD 450W D130 957 WH FB
400 Wluminaire power
47400 lmlight flow
119 lm/Wenergy efficiency
code1864001990
beam angleD130
color temperature5700 K
weight12.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
119 lm/Wcolor rendition index (CRI)
>90light flow
47400 lmflickering factor
<1%beam angle
D130color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
119 lm/W
color rendition index (CRI)
>90
light flow
47400 lm
flickering factor
<1%
beam angle
D130
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
400 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,97
constructional
climatic performance
УХЛ1*
width
480 mm
height
350 mm
installation length
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
463 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
12.5 kg
common
code
1864001990
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

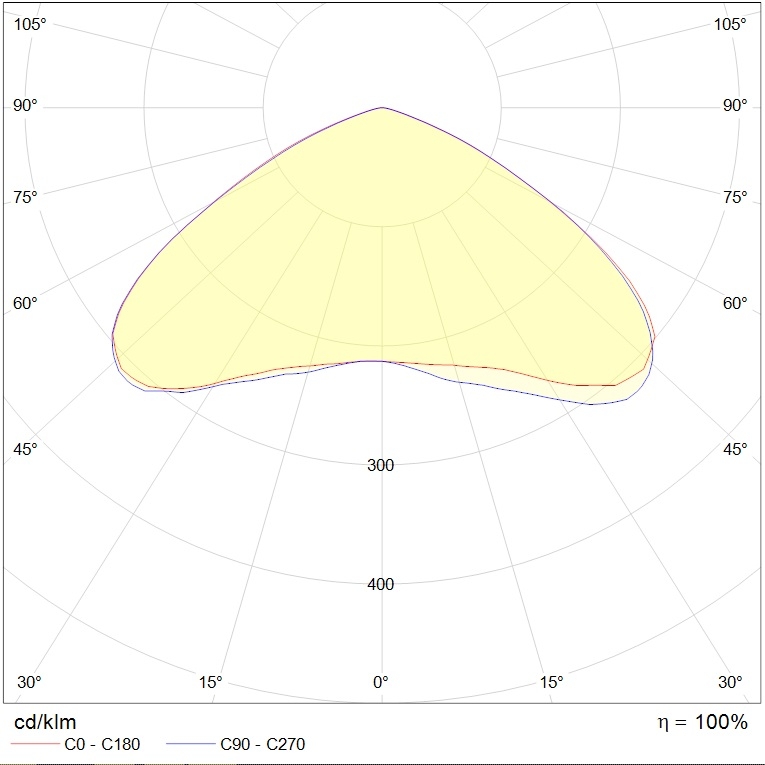

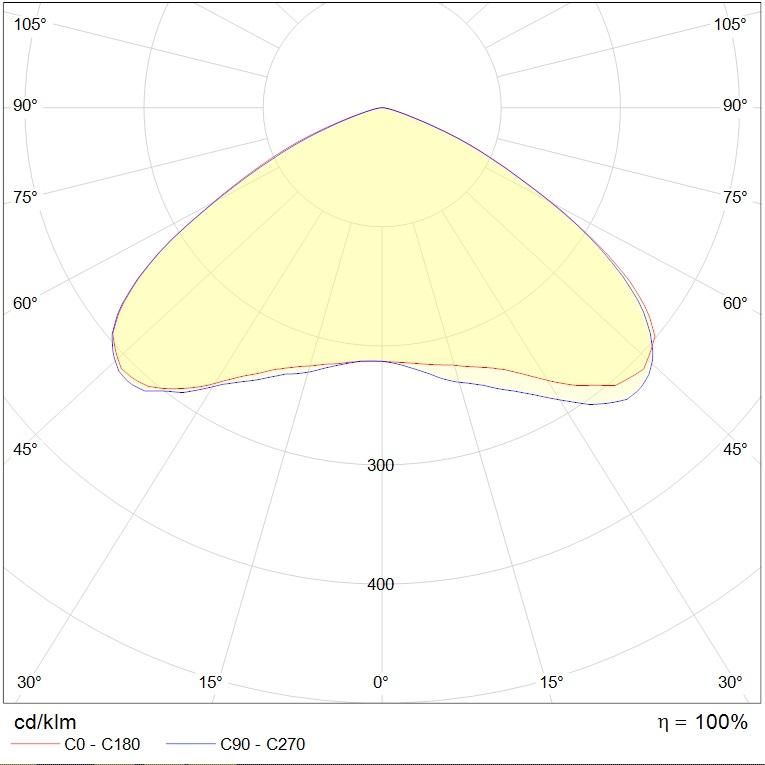

photometric files
сертификаты
photometric files
ies107 kB
jpg77.9 kB
ldt65.5 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
