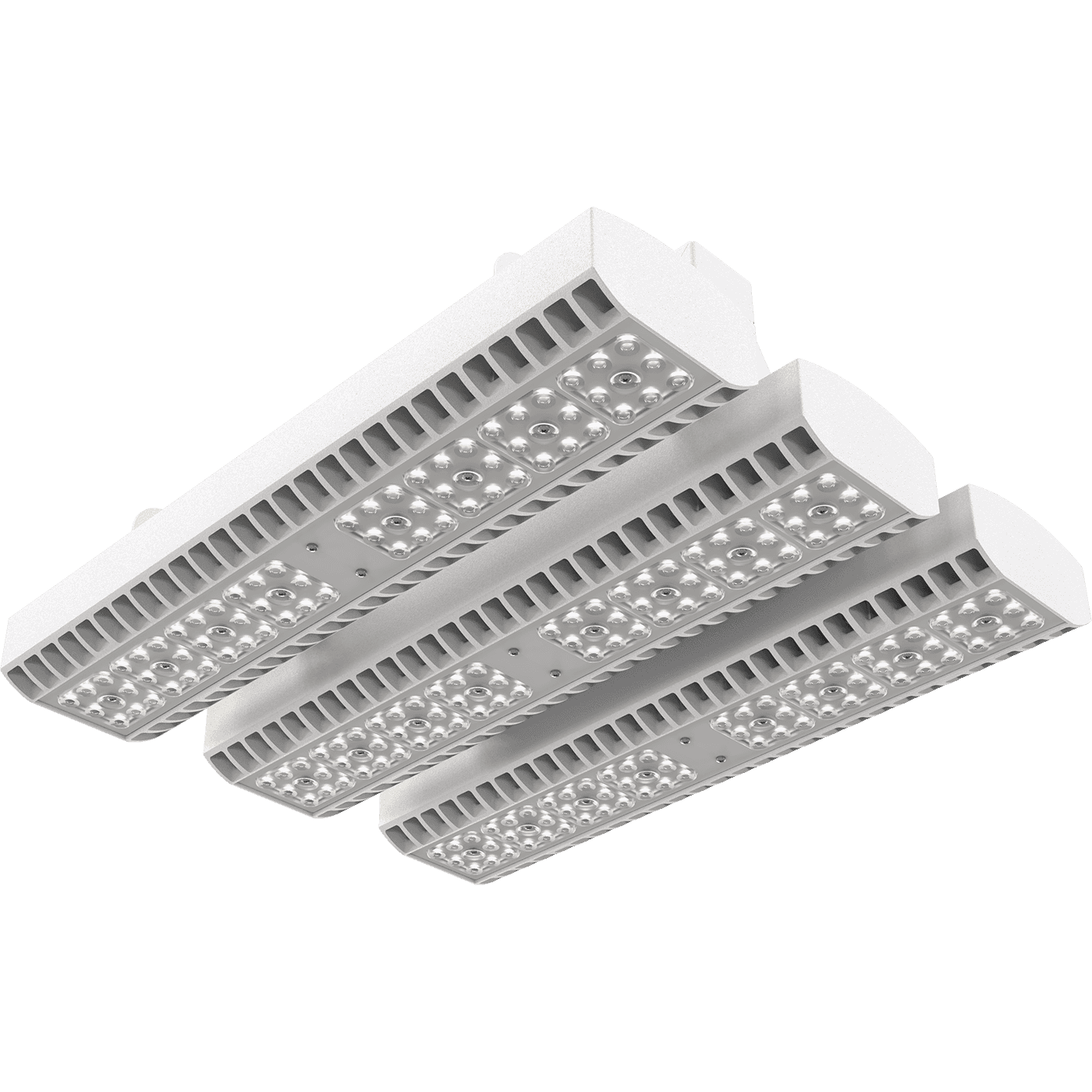

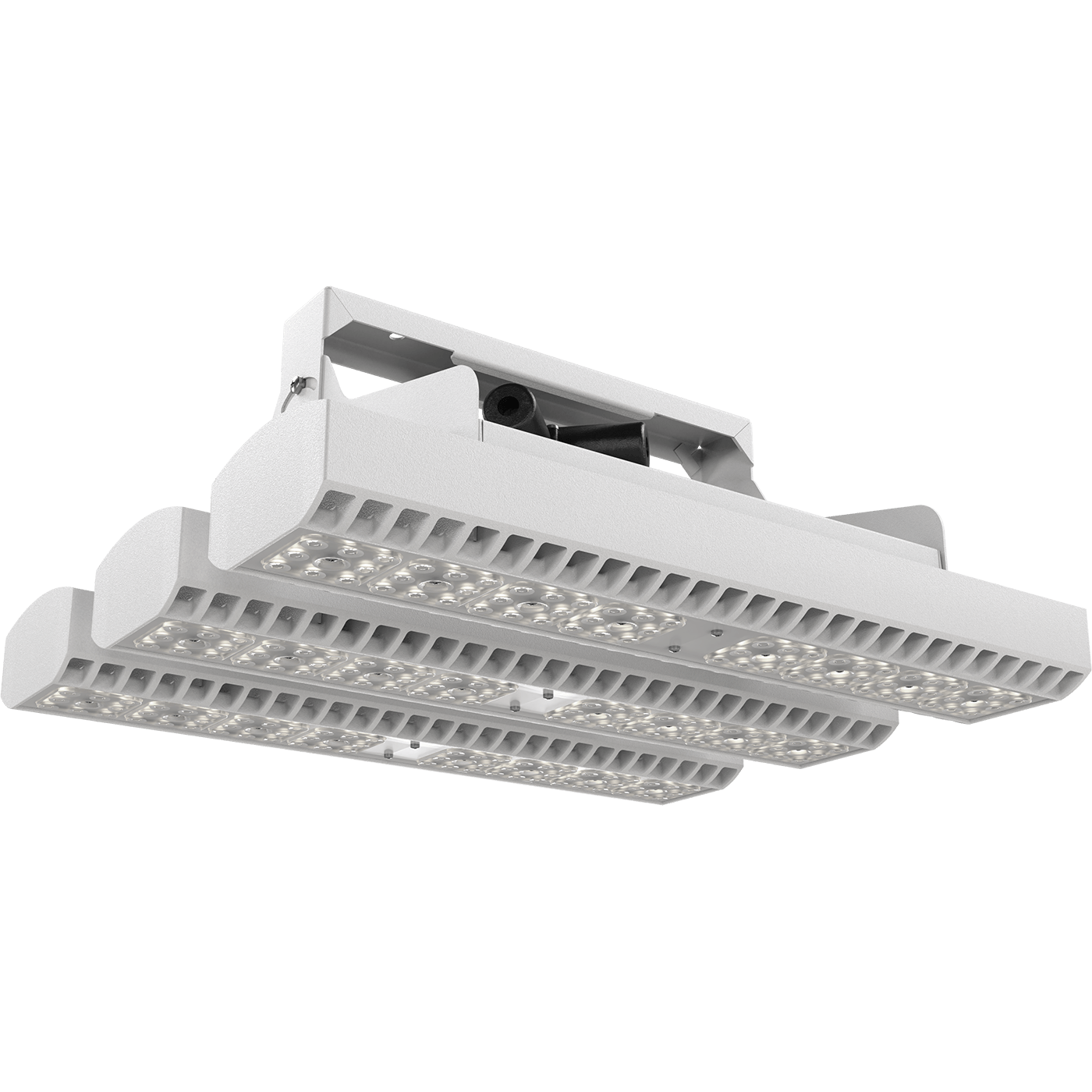

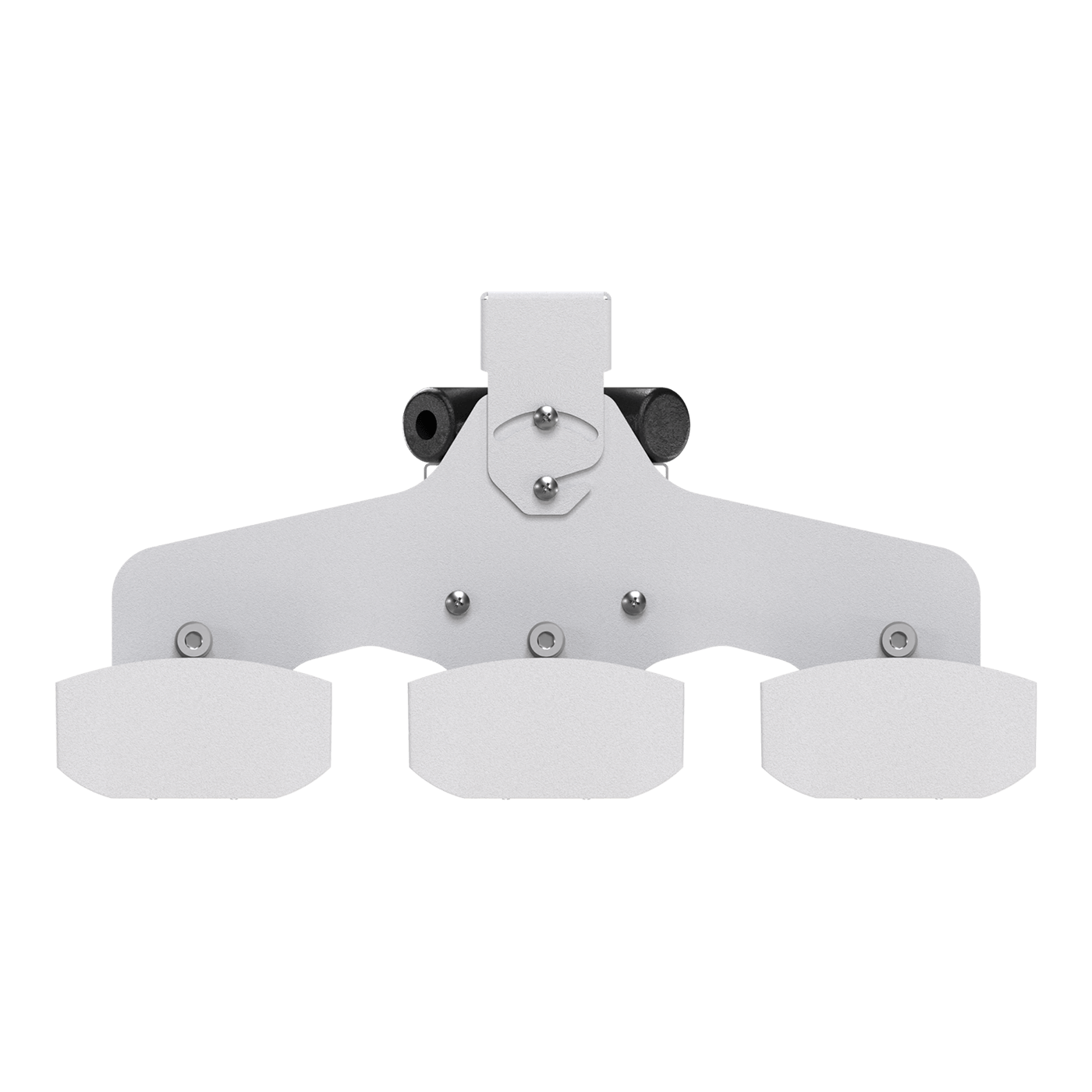

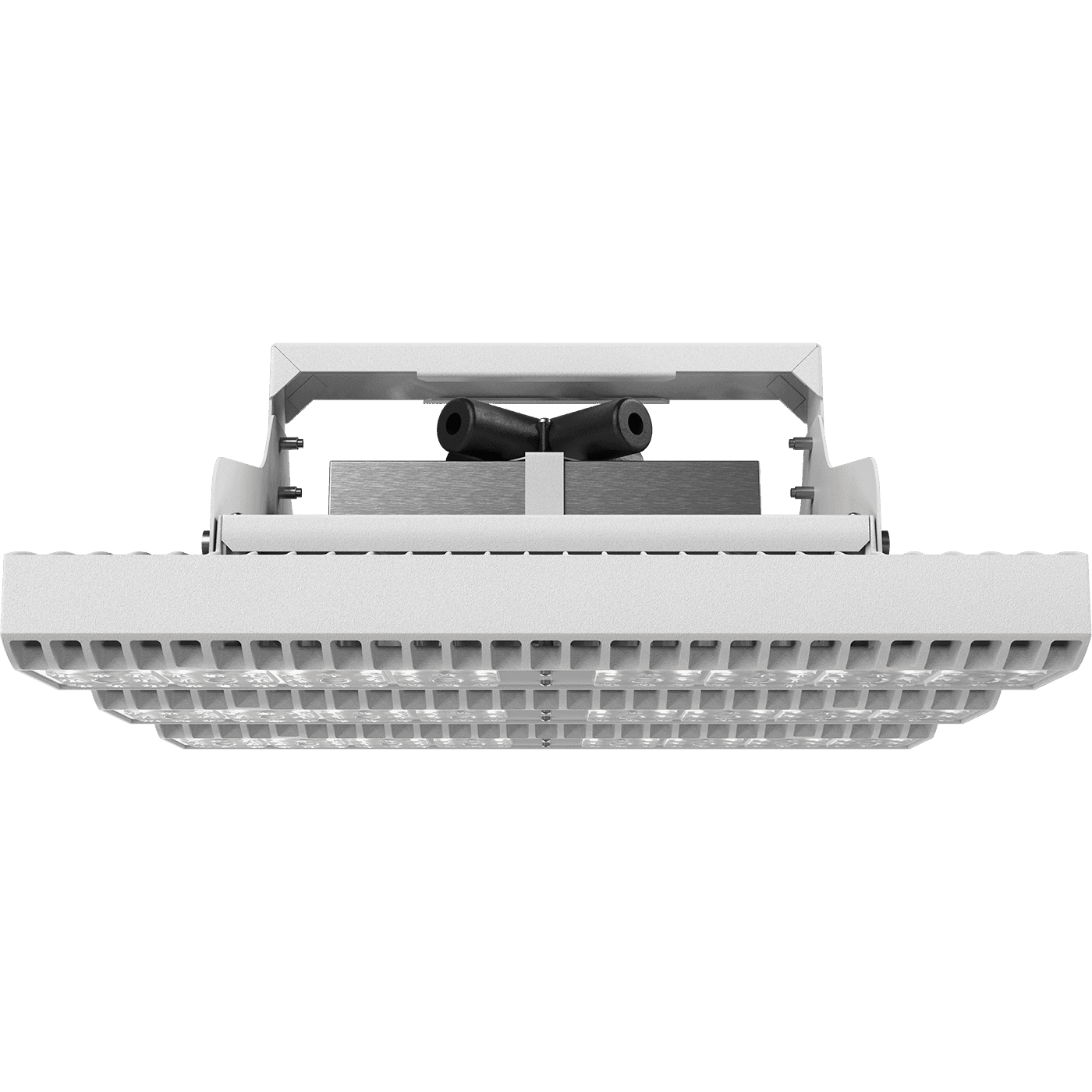

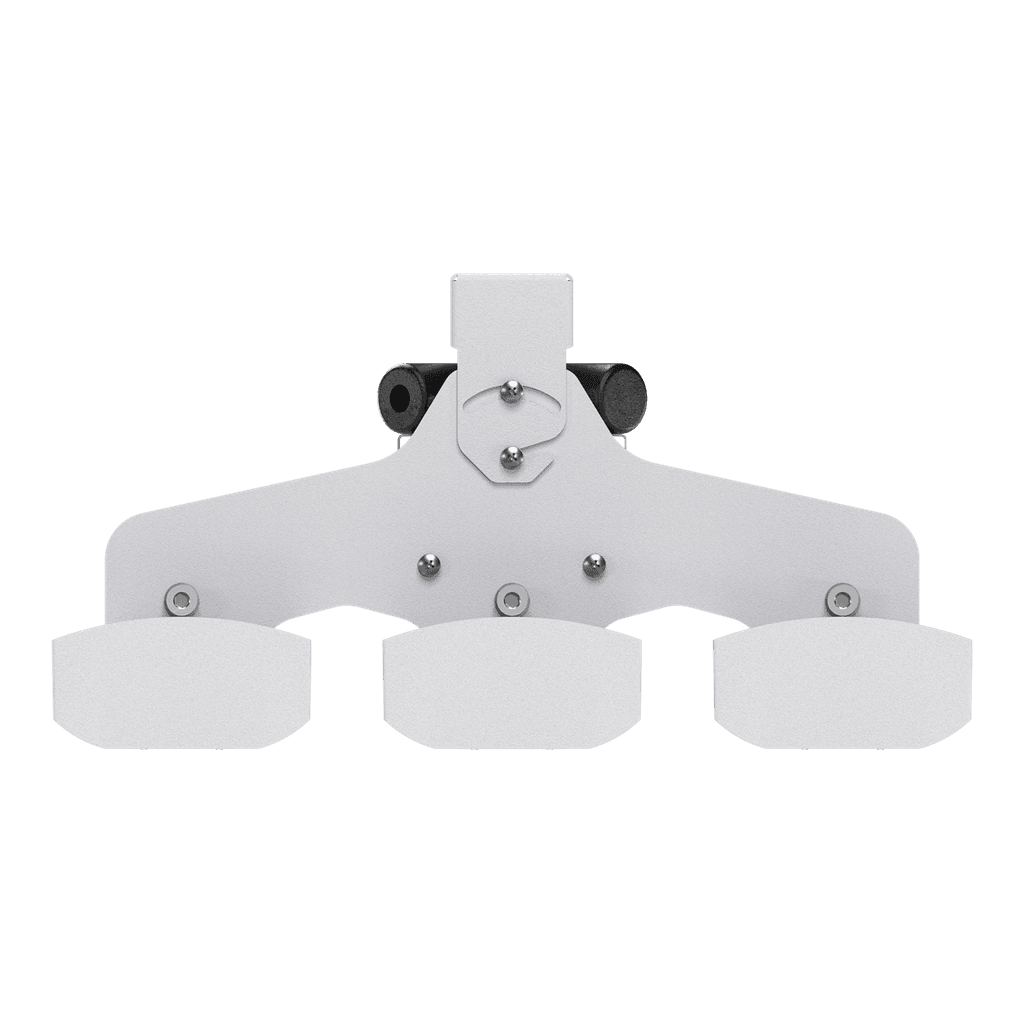

FORWARD 450W A30 950 WH SB
FORWARD 450W A30 950 WH SB
400 Wluminaire power
46000 lmlight flow
115 lm/Wenergy efficiency
code1864001900
beam angleA30
color temperature5000
weight9.7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
115 lm/Wcolor rendition index (CRI)
>90light flow
46000 lmflickering factor
<1%beam angle
A30color temperature
5000light source type
LEDemission color
Белыйilluminating
energy efficiency
115 lm/W
color rendition index (CRI)
>90
light flow
46000 lm
flickering factor
<1%
beam angle
A30
color temperature
5000
light source type
LED
emission color
Белый
electrical
luminaire power
400 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,97
constructional
climatic performance
УХЛ1*
width, mm
389 mm
height, mm
222 mm
installation length, mm
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
463 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
9.7 kg
common
code
1864001900
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files
photometric files
сертификаты

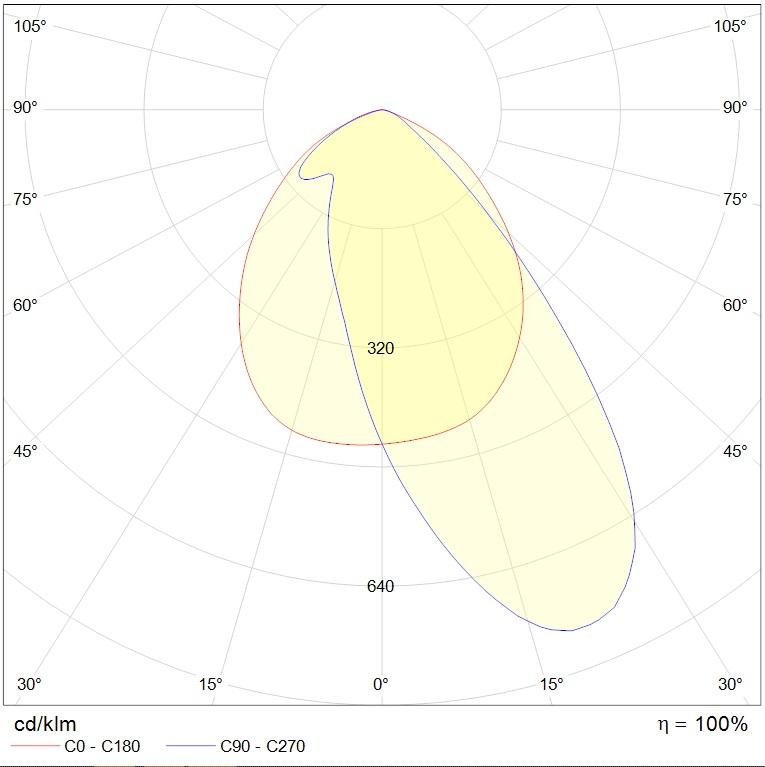

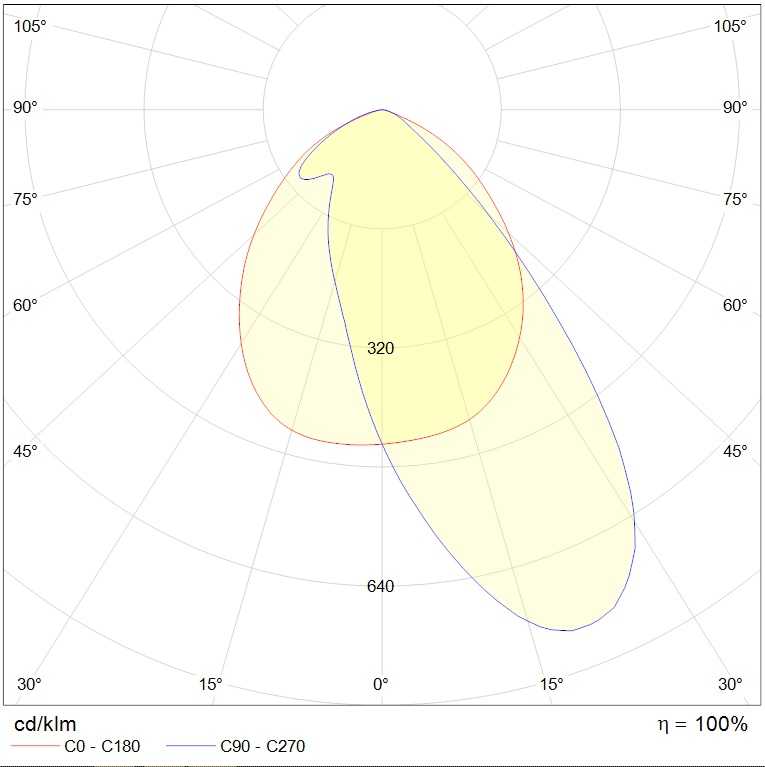

photometric files
ies107 kB
jpg80.6 kB
ldt65.5 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
