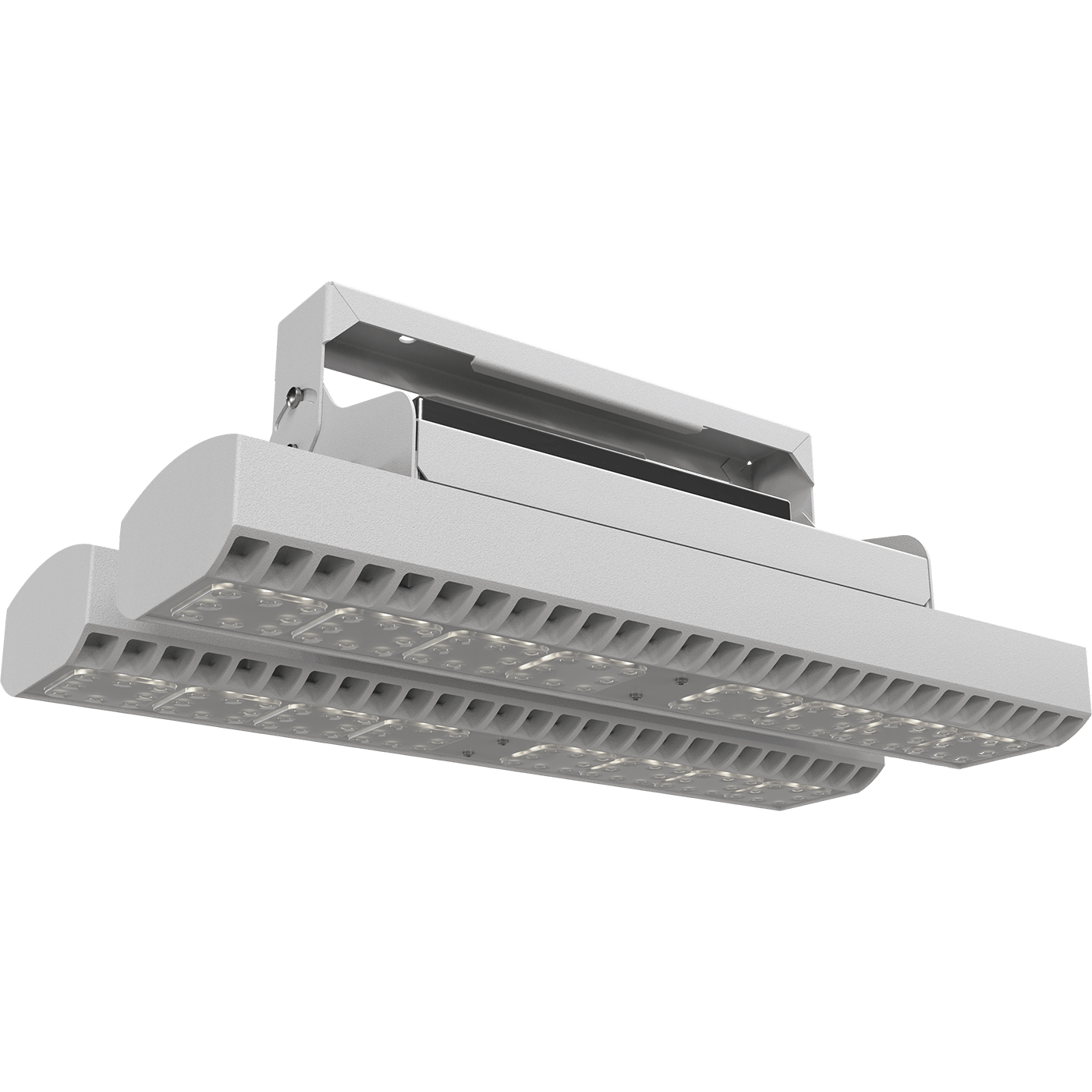

FORWARD 300W D130 850 WH SB
FORWARD 300W D130 850 WH SB
270 Wluminaire power
35400 lmlight flow
131 lm/Wenergy efficiency
code1864000780
beam angleD130
color temperature5000
weight7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
131 lm/Wcolor rendition index (CRI)
>80light flow
35400 lmflickering factor
<1%beam angle
D130color temperature
5000light source type
LEDemission color
Белыйilluminating
energy efficiency
131 lm/W
color rendition index (CRI)
>80
light flow
35400 lm
flickering factor
<1%
beam angle
D130
color temperature
5000
light source type
LED
emission color
Белый
electrical
luminaire power
270 W
electric shock protection
I
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
70 A
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage, direct current
127-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,97
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
width, mm
249 mm
height, mm
180 mm
installation length, mm
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
463 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
7 kg
common
code
1864000780
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

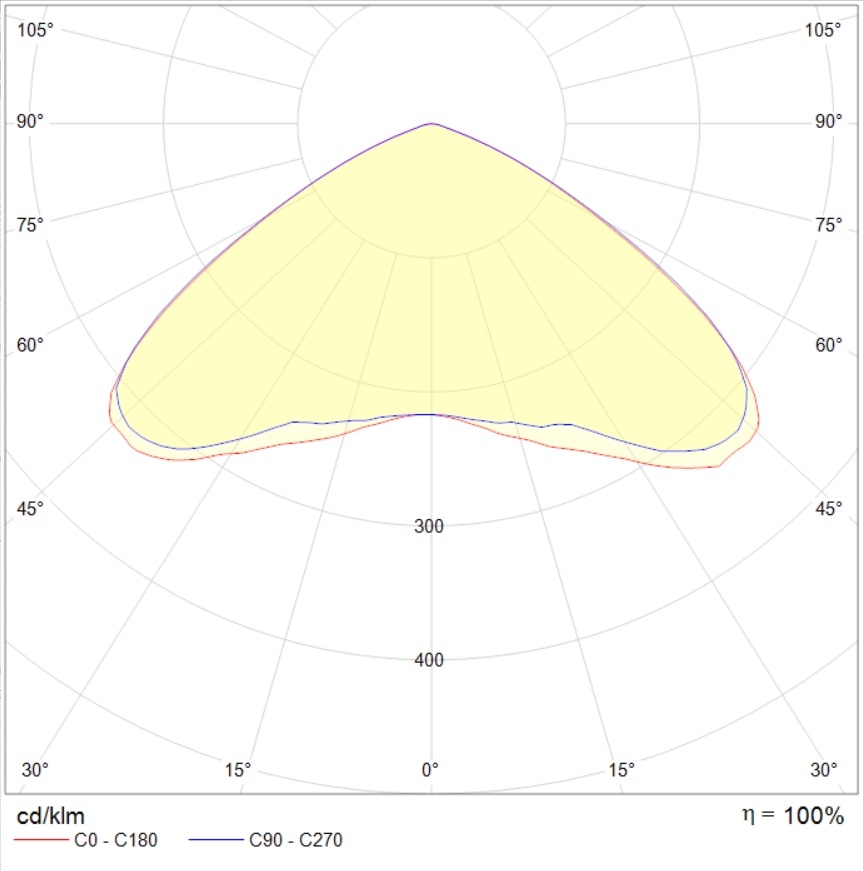

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg80.5 kB
ldt71.6 kB
documents
passport7.7 mB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
