FORWARD 150W D130 950 WH FB

FORWARD 150W D130 950 WH FB
140 Wluminaire power
15000 lmlight flow
107 lm/Wenergy efficiency
code1864001230
beam angleD130
color temperature5000
weight4.1 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP66
housing color
Белый
length, mm
463 mm
width, mm
110 mm
height, mm
235 mm
weight
4.1 kg
fire safety class
П-I,II,ІІІ
climatic performance
УХЛ1*
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
constructional
ingress protection (IP)
IP66
housing color
Белый
length, mm
463 mm
width, mm
110 mm
height, mm
235 mm
weight
4.1 kg
fire safety class
П-I,II,ІІІ
climatic performance
УХЛ1*
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
luminaire power
140 W
power factor
> 0,97
supply voltage
230 V
common
code
1864001230
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>90
light flow
15000 lm
energy efficiency
107 lm/W
flickering factor
<1%
beam angle
D130
color temperature
5000
light source type
LED
emission color
Белый
model files
model files

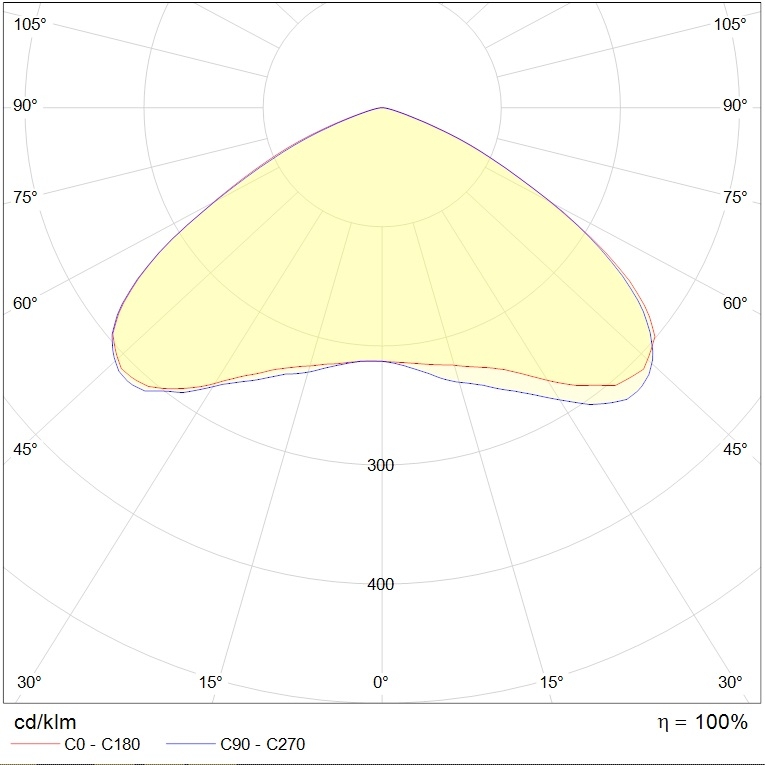

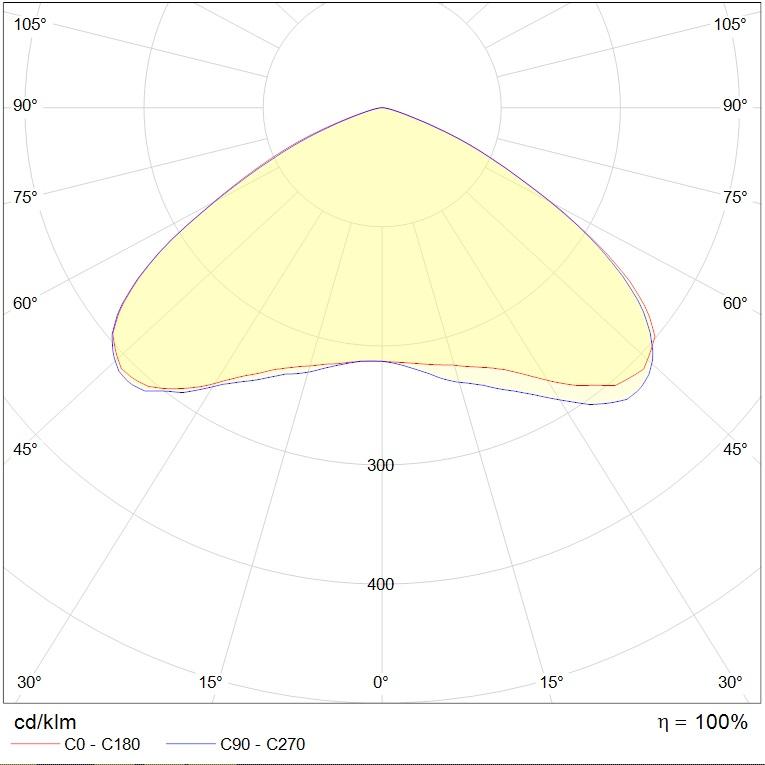

photometric files
ies107 kB
jpg77.9 kB
ldt65.5 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
photometric files
ies107 kB
jpg77.9 kB
ldt65.5 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
