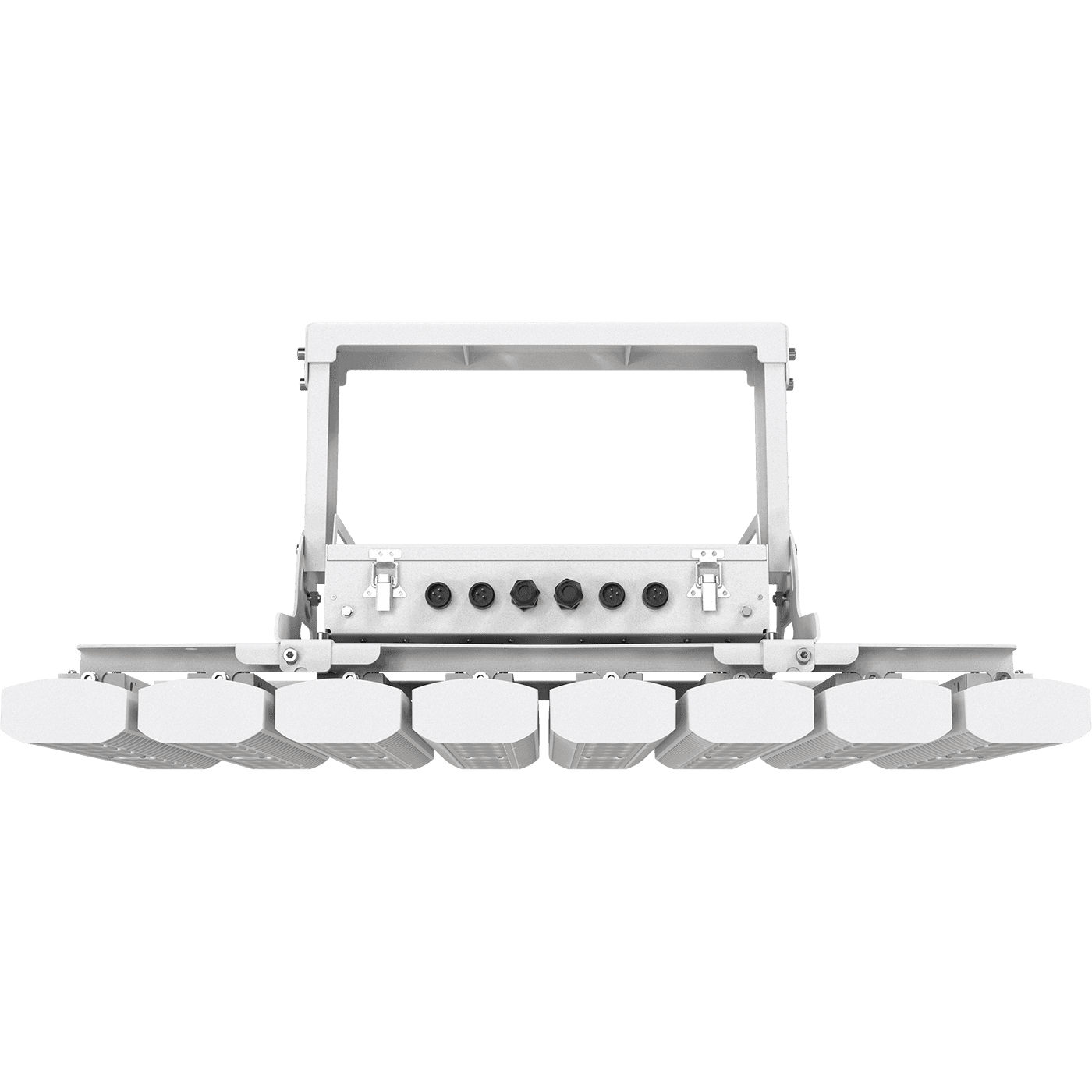

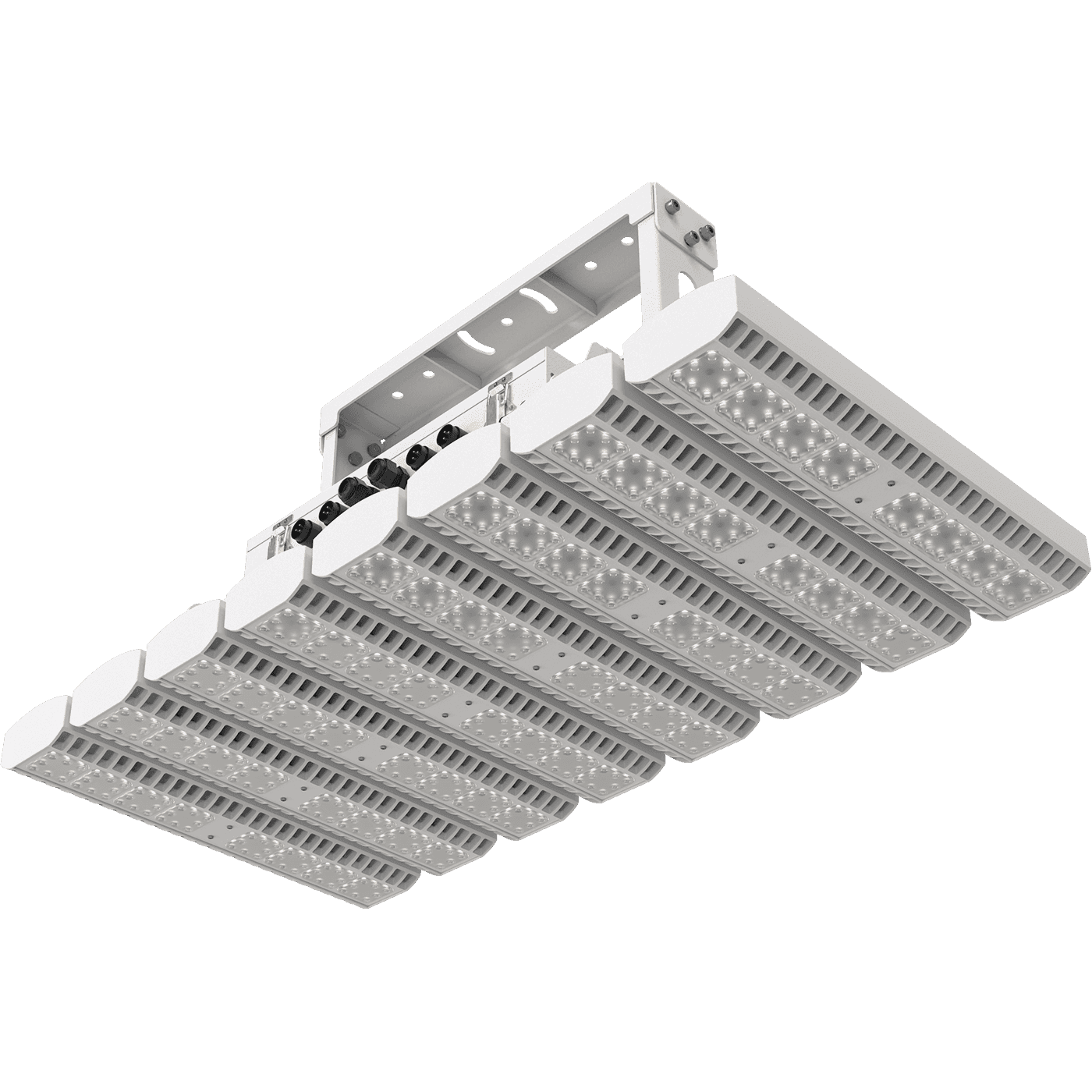

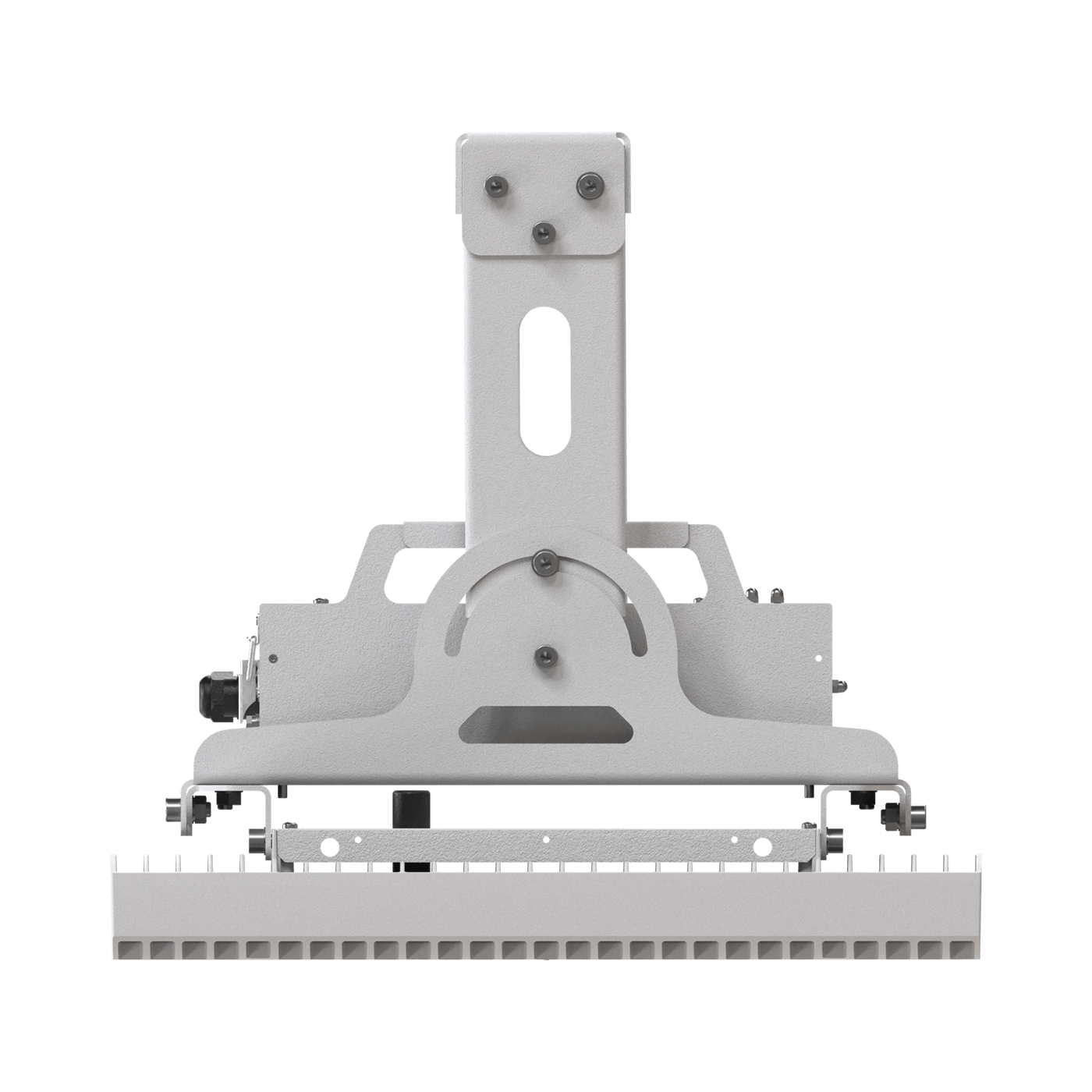

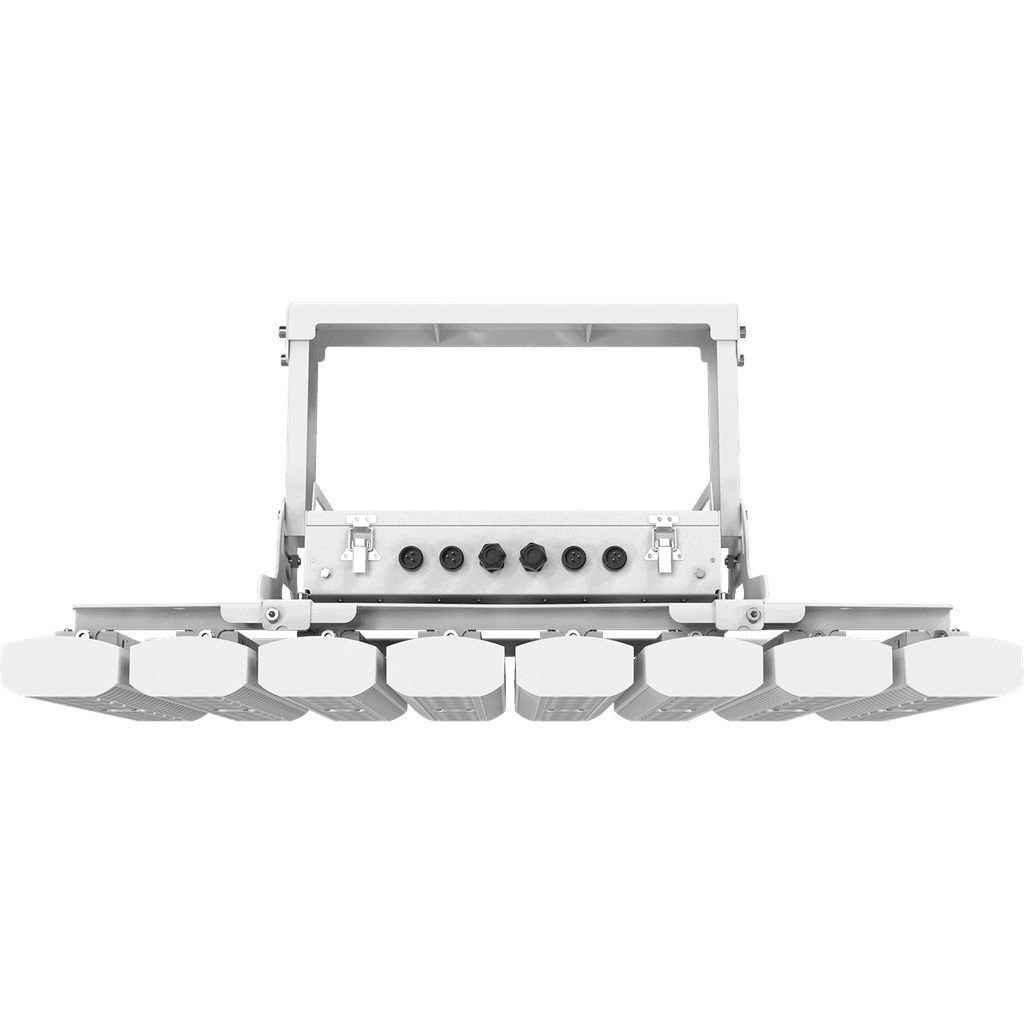

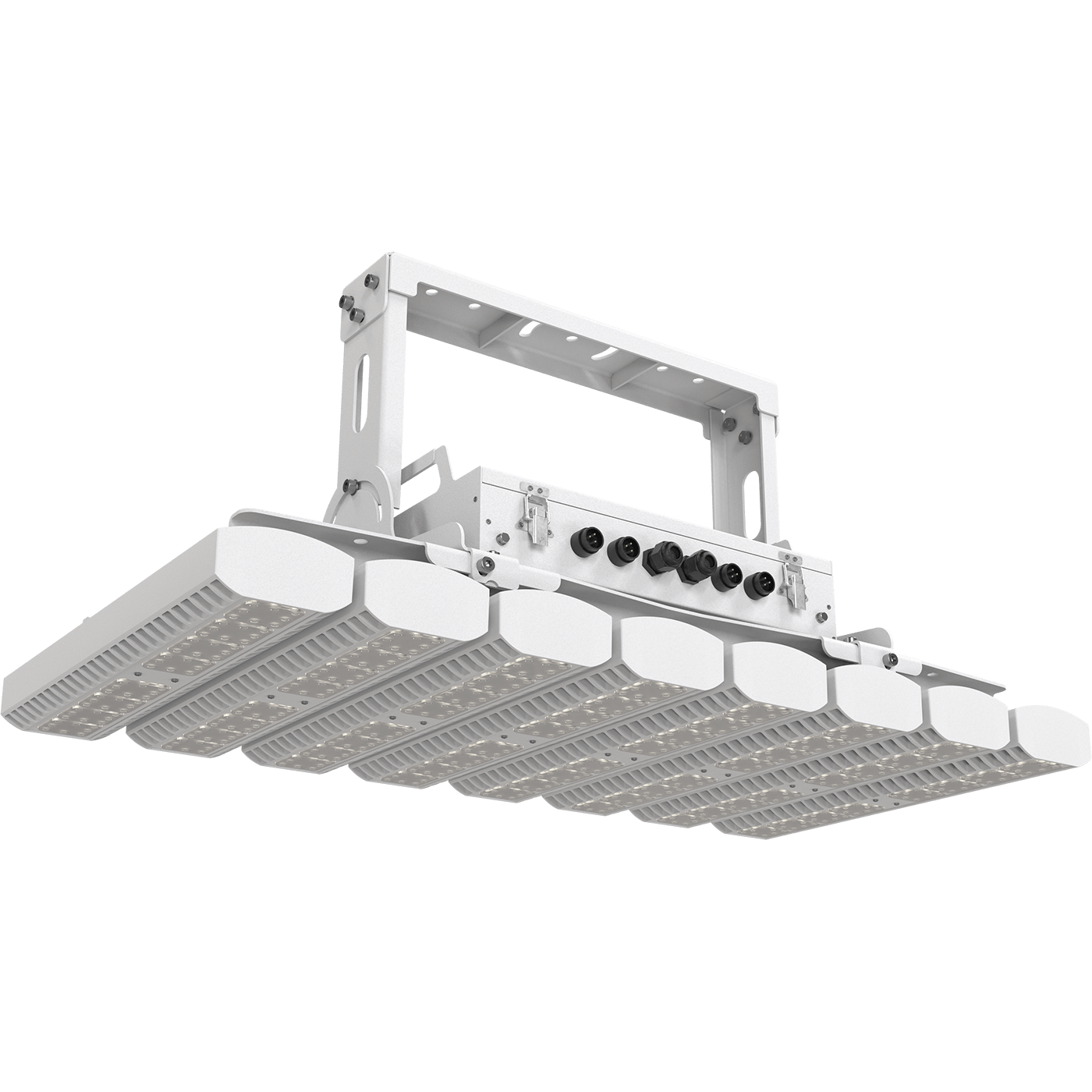

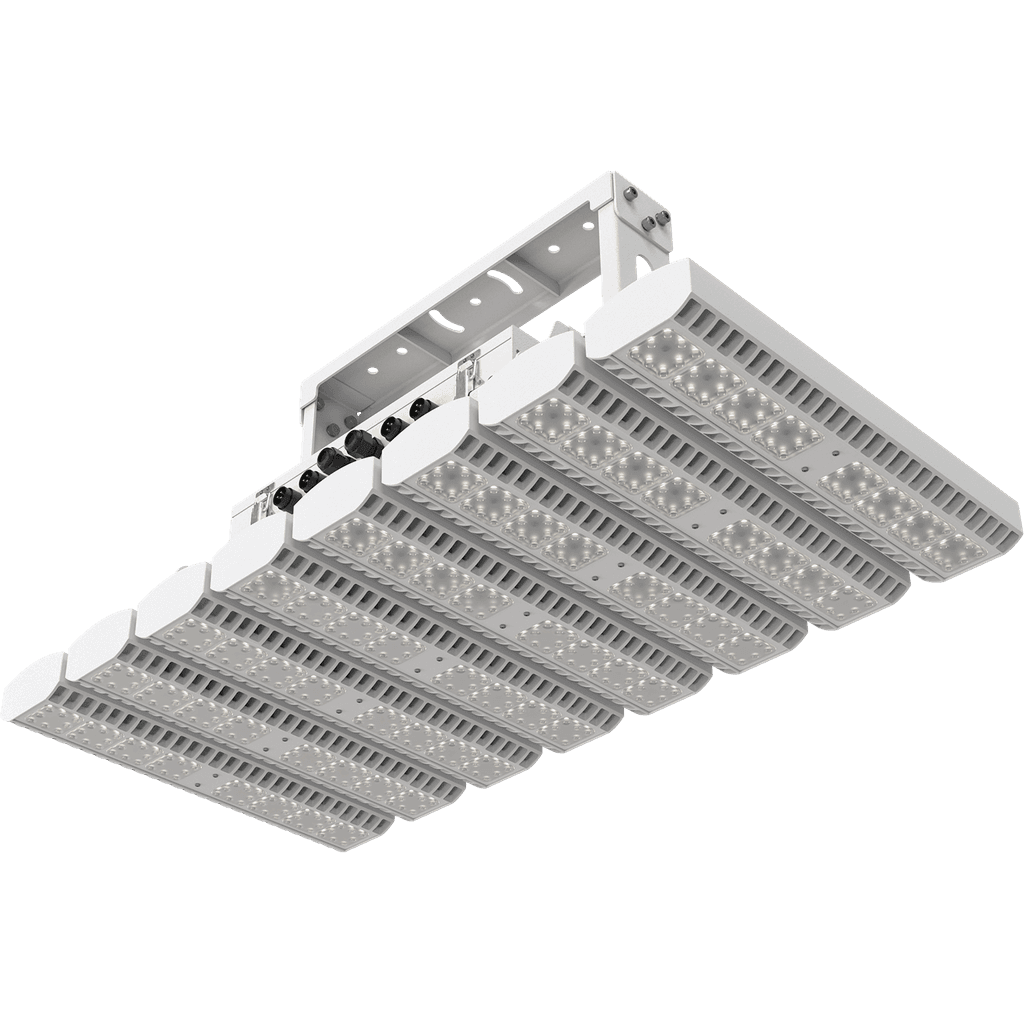

FORWARD 1100W A30 957 WH SB
FORWARD 1100W A30 957 WH SB
1100 Wluminaire power
126600 lmlight flow
115 lm/Wenergy efficiency
code1864003870
beam angleA30
color temperature5700 K
weight33 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
115 lm/Wcolor rendition index (CRI)
>90light flow
126600 lmflickering factor
<1%beam angle
A30color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
115 lm/W
color rendition index (CRI)
>90
light flow
126600 lm
flickering factor
<1%
beam angle
A30
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
1100 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,97
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,ІІІ
width
510 mm
height
250 mm
installation length
340 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
950 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
33 kg
common
code
1864003870
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

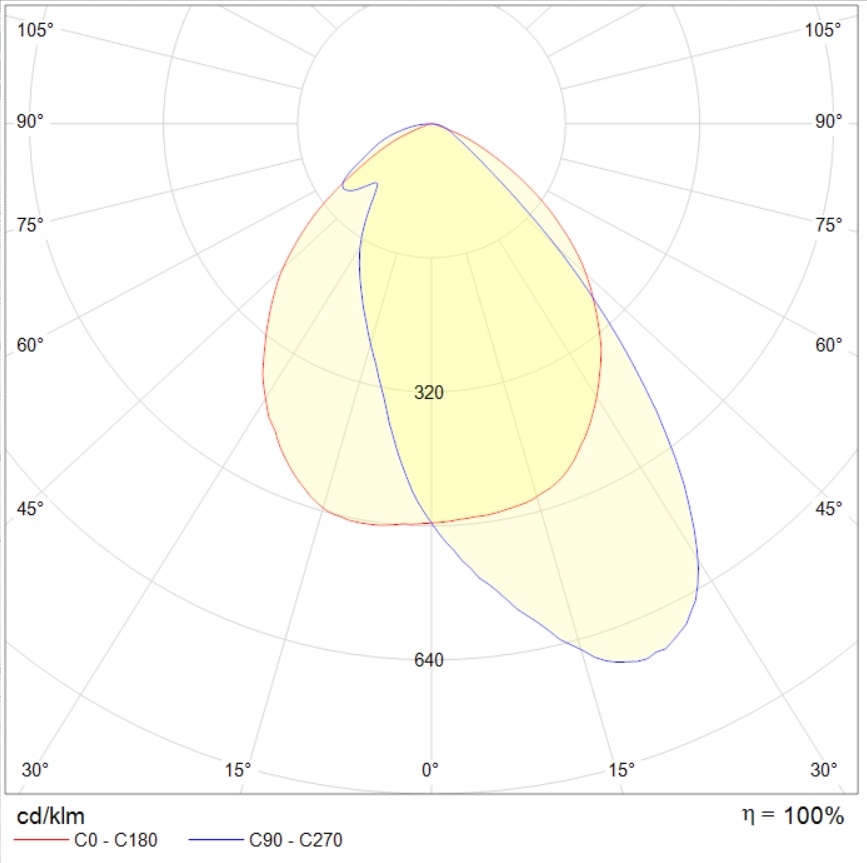

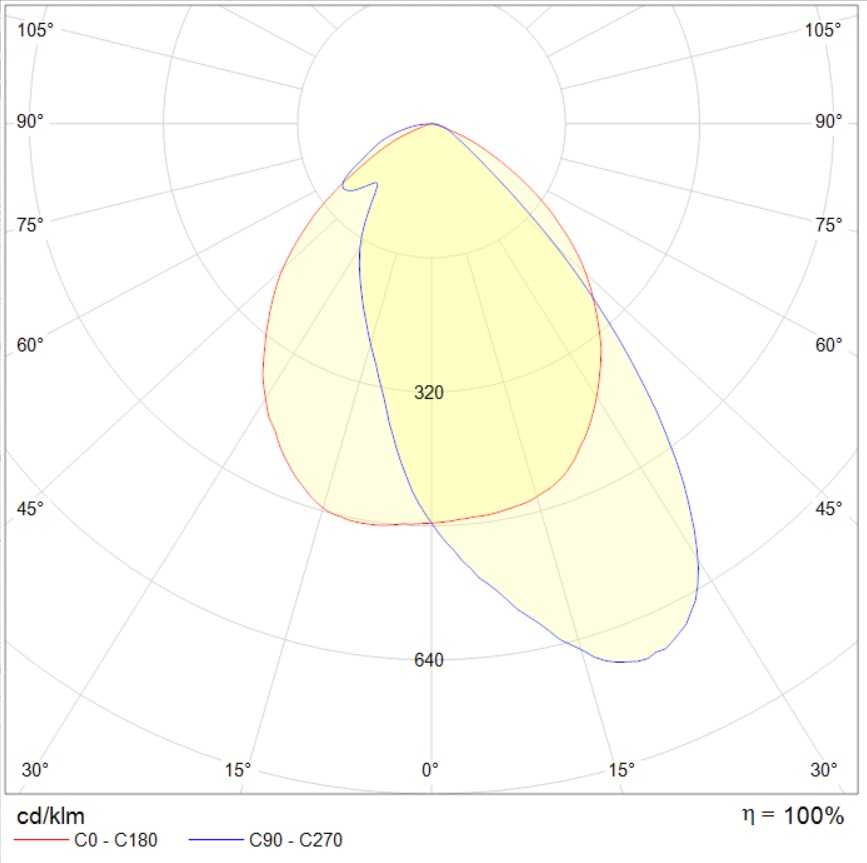

photometric files
сертификаты
photometric files
ies263.2 kB
jpg81.4 kB
ldt174.6 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
