EVOLINE MINI LED (1200) 19W D120 RGBW SL DMX READY
EVOLINE MINI LED (1200) 19W D120 RGBW SL DMX READY
19 Wluminaire power
650 lmlight flow
34 lm/Wenergy efficiency
code1006011530
beam angleD120
weight1.9 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
34 lm/Wlight flow
650 lmflickering factor
<5%beam angle
D120light source type
LEDemission color
RGBWilluminating
energy efficiency
34 lm/W
light flow
650 lm
flickering factor
<5%
beam angle
D120
light source type
LED
emission color
RGBW
electrical
luminaire power
19 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
supply voltage, alternating current
90-305 V
power factor
> 0,95
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ
width
60 mm
height
75 mm
installation length
180 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
1180 mm
material
Алюминий
ingress protection (IP)
IP65
shock resistance (IK)
IK07/2 Дж
weight
1.9 kg
LMS options
dimming
DMX
common
code
1006011530
warranty
36 month
energy efficiency class
B
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
accessories

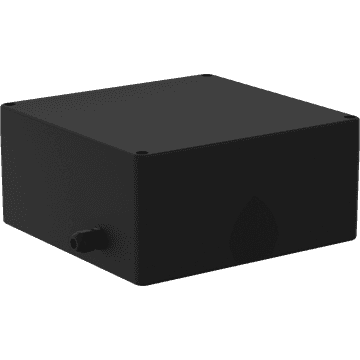

EVOLINE MINI BOX DMX512 (150W - 48V) бокс для драйвера5.6kgarticle: 2006000730color: Черный
