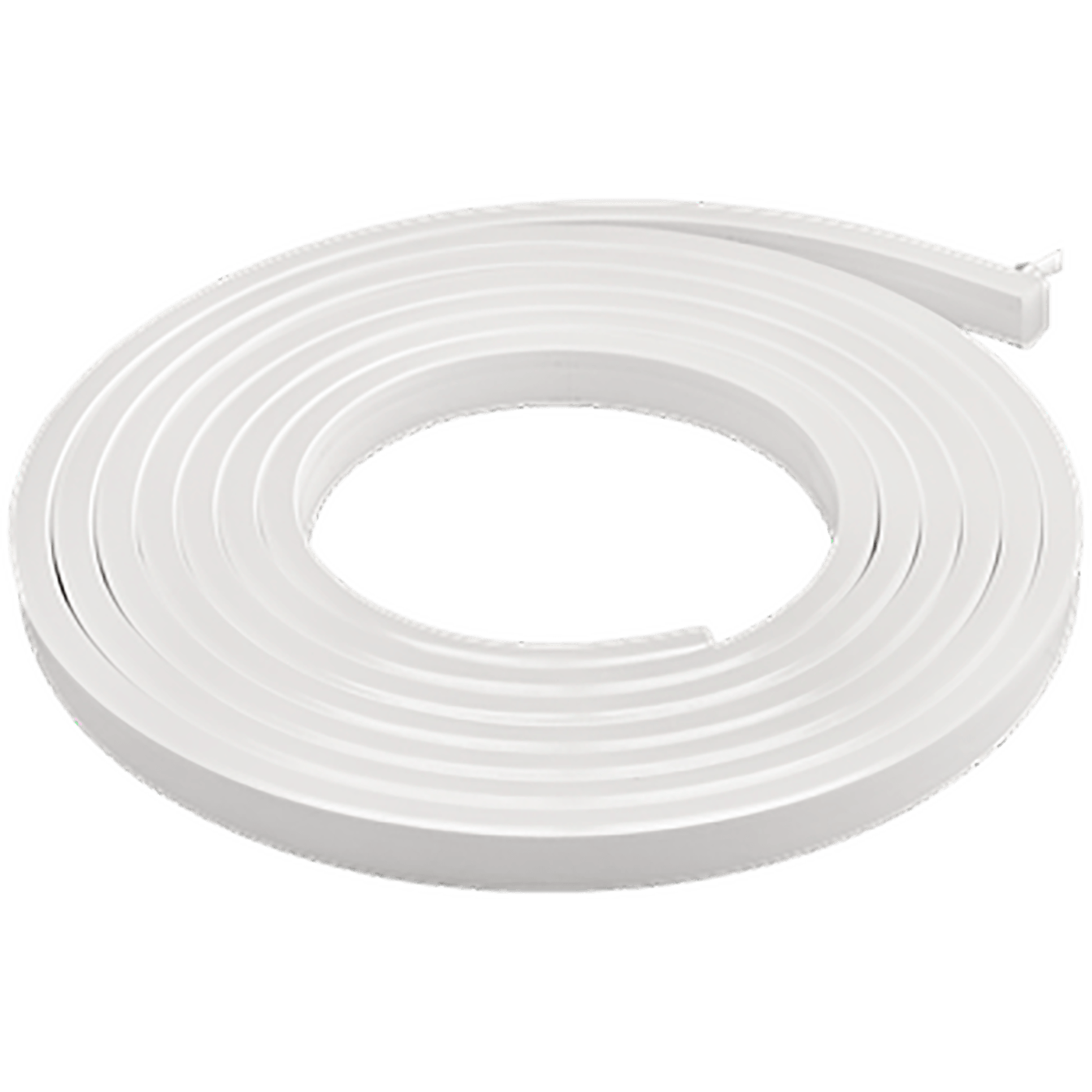

EVOLINE FLEX TOP 10W 4000K 400
model is discontinued
model is discontinued
EVOLINE FLEX TOP 10W 4000K 400
4 Wluminaire power
148 lmlight flow
37 lm/Wenergy efficiency
code1006001680
beam angleD120
color temperature4000 K
weight1.7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
37 lm/Wcolor rendition index (CRI)
>80light flow
148 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
37 lm/W
color rendition index (CRI)
>80
light flow
148 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
4 W
electric shock protection
III
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
constructional
climatic performance
УХЛ1*
width
60 mm
height
75 mm
installation length
180 mm
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
400 mm
material
ПВХ
ingress protection (IP)
IP68
shock resistance (IK)
IK07/2 Дж
weight
1.7 kg
common
code
1006001680
warranty
36 month
energy efficiency class
B
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Световая полоса/ лента/ шнур
model files
model files

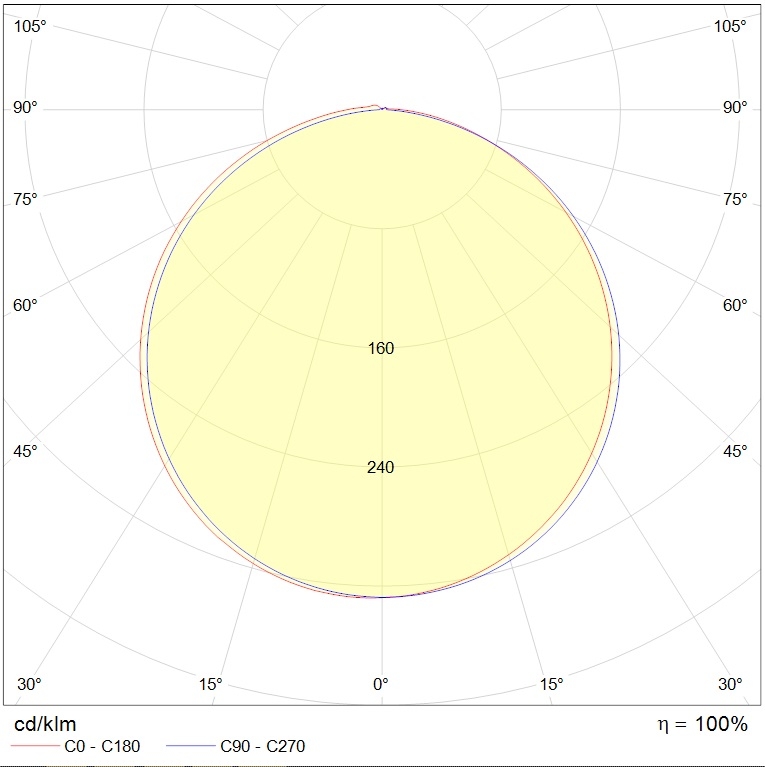

photometric files
сертификаты
photometric files
ies15.9 kB
jpg81.7 kB
ldt12.8 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011144.8 kB
Declaration of Conformity EAEU TR 037/2016602.6 kB
Fire Safety Certificate2.5 mB
