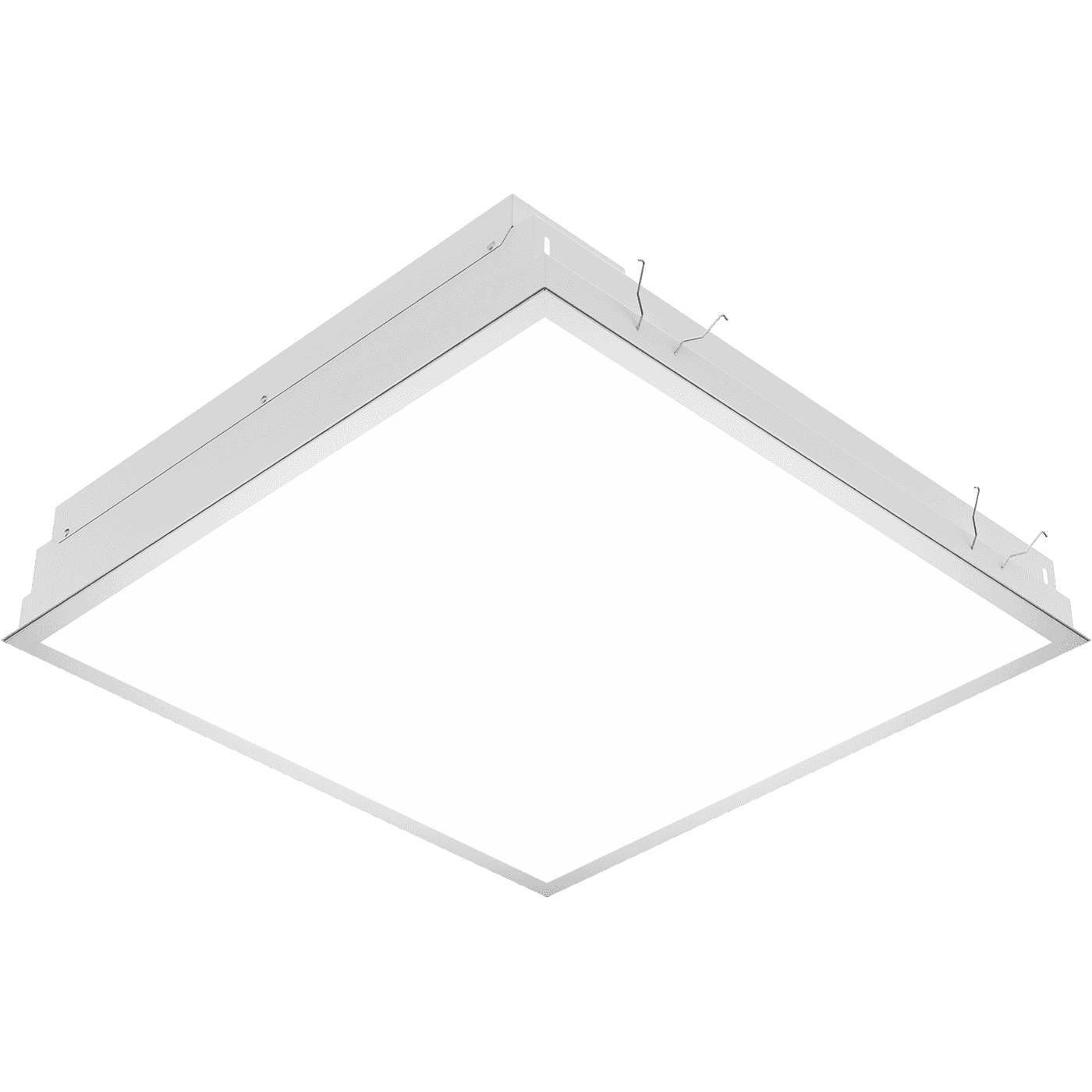

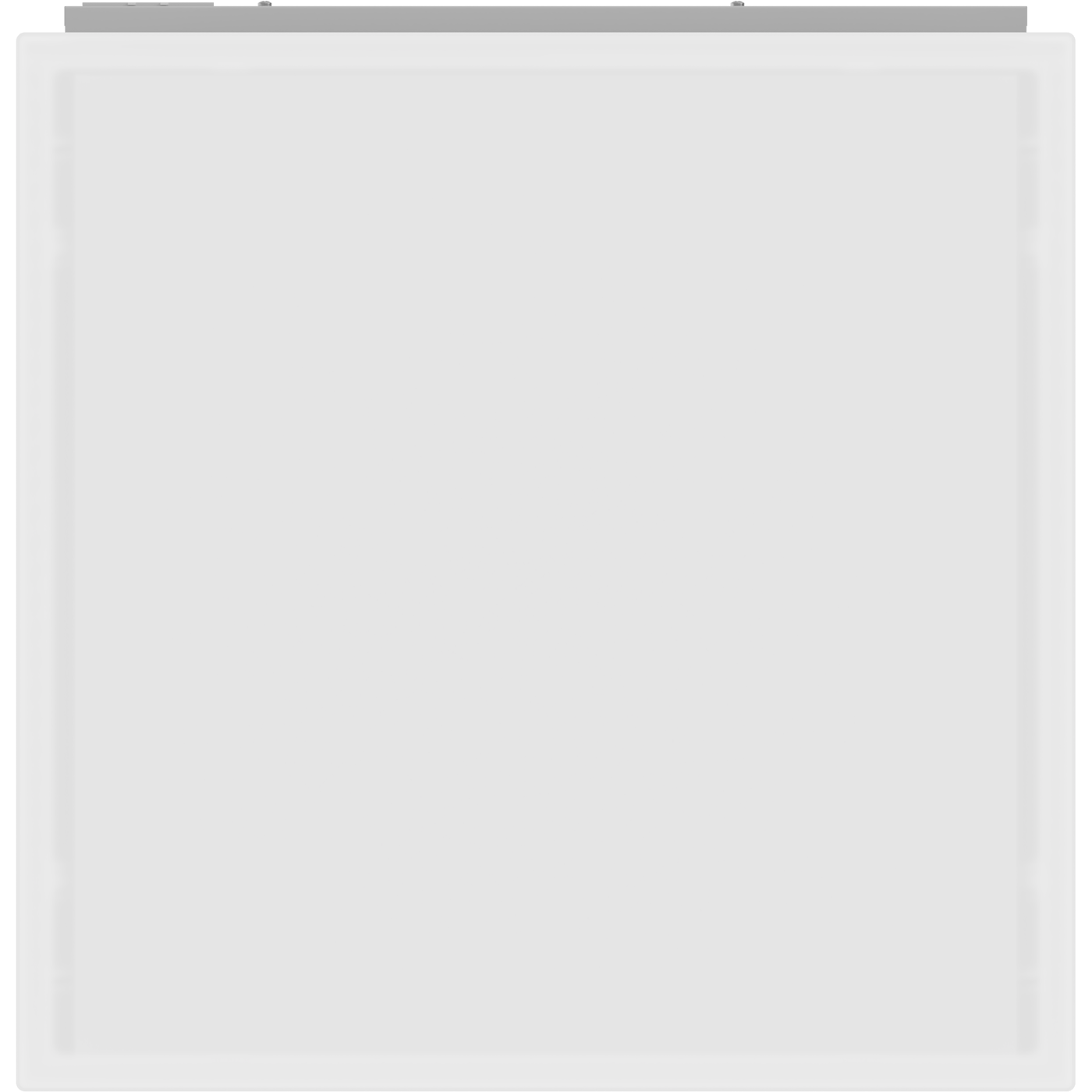

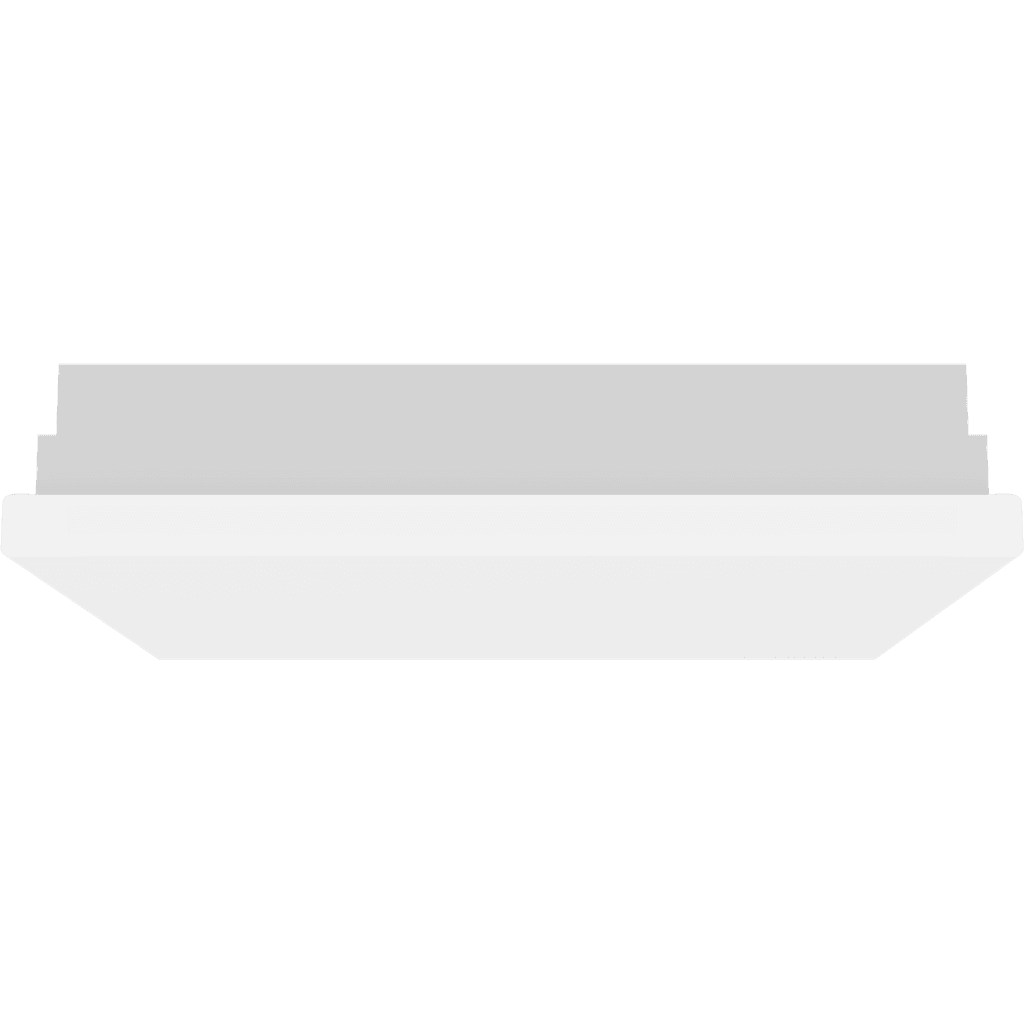

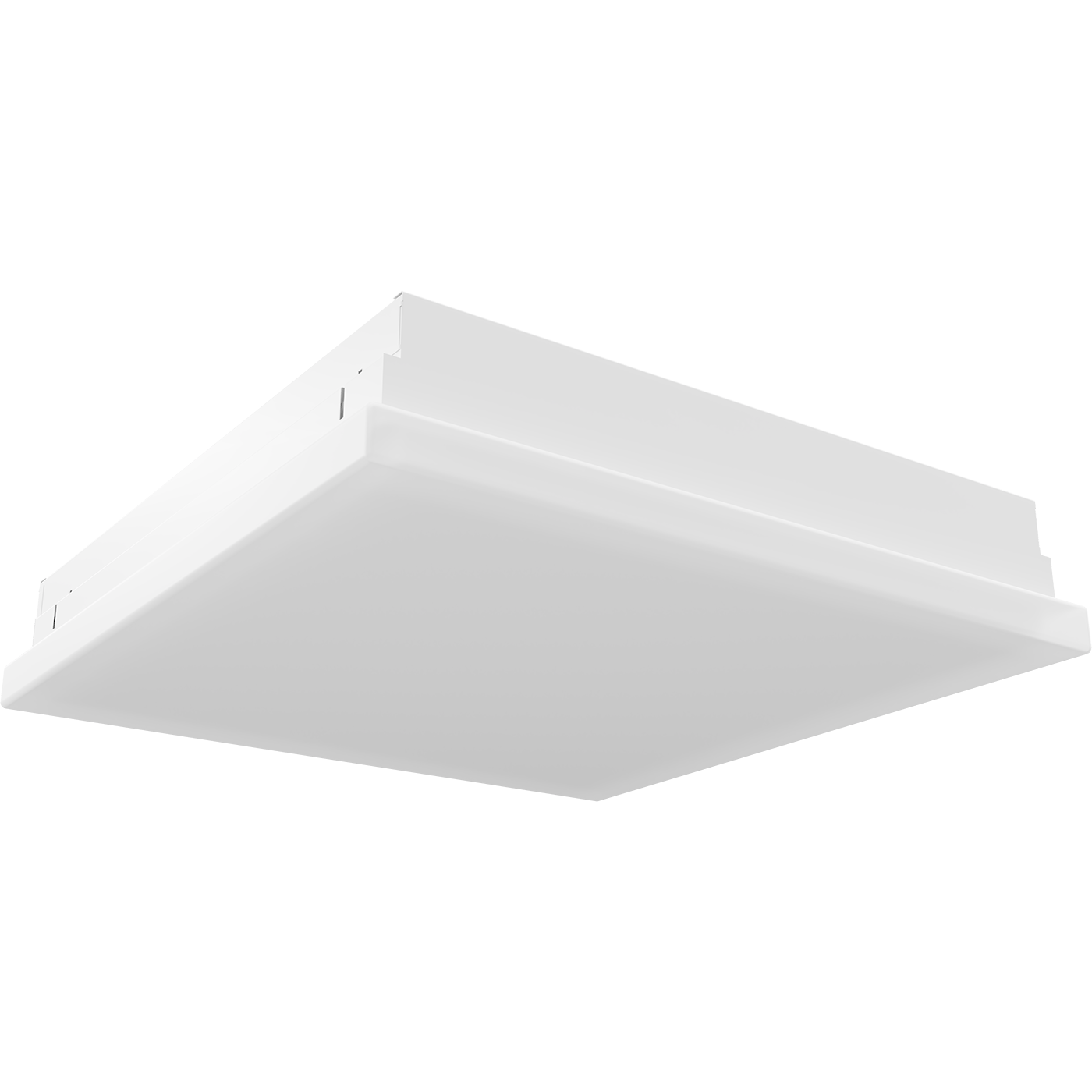

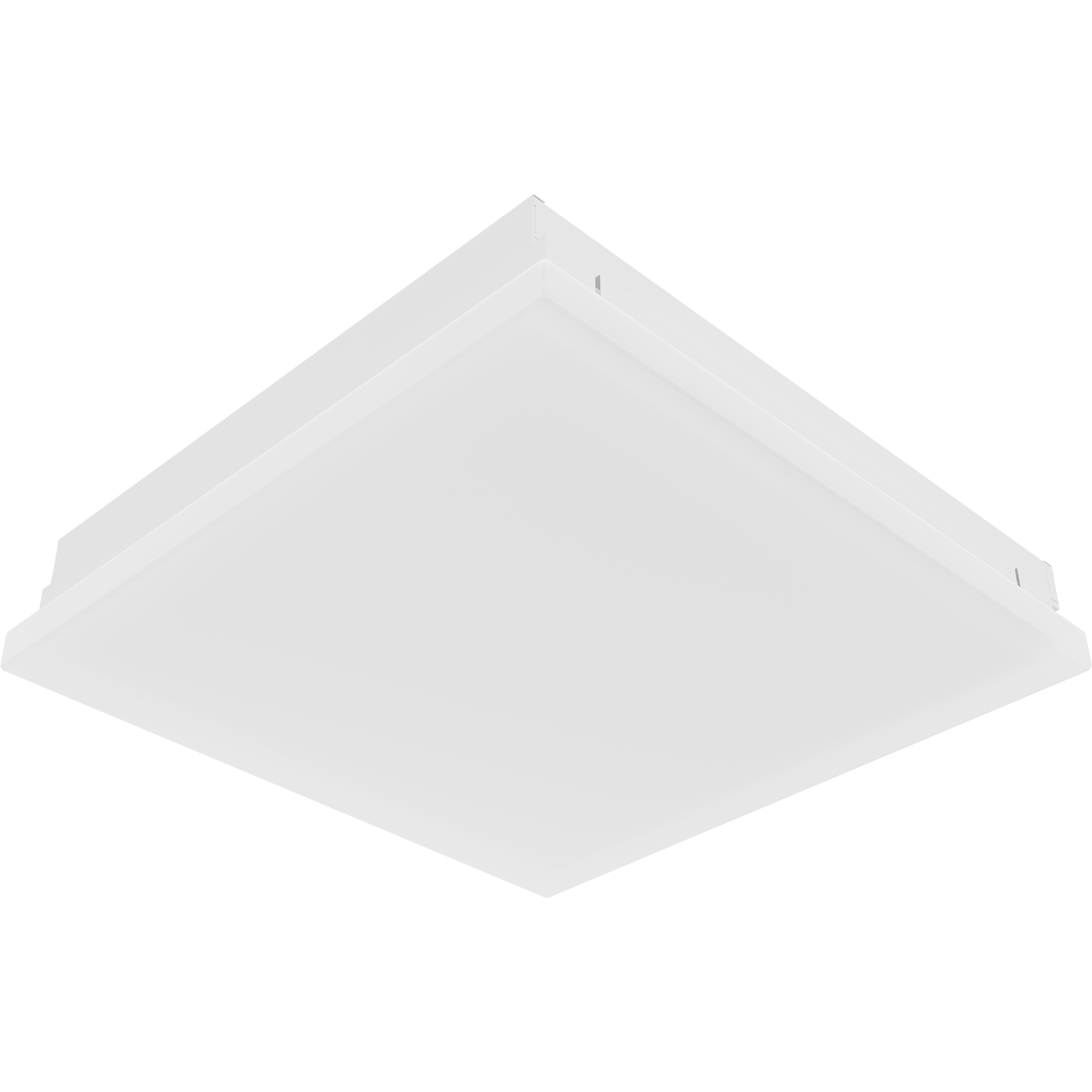

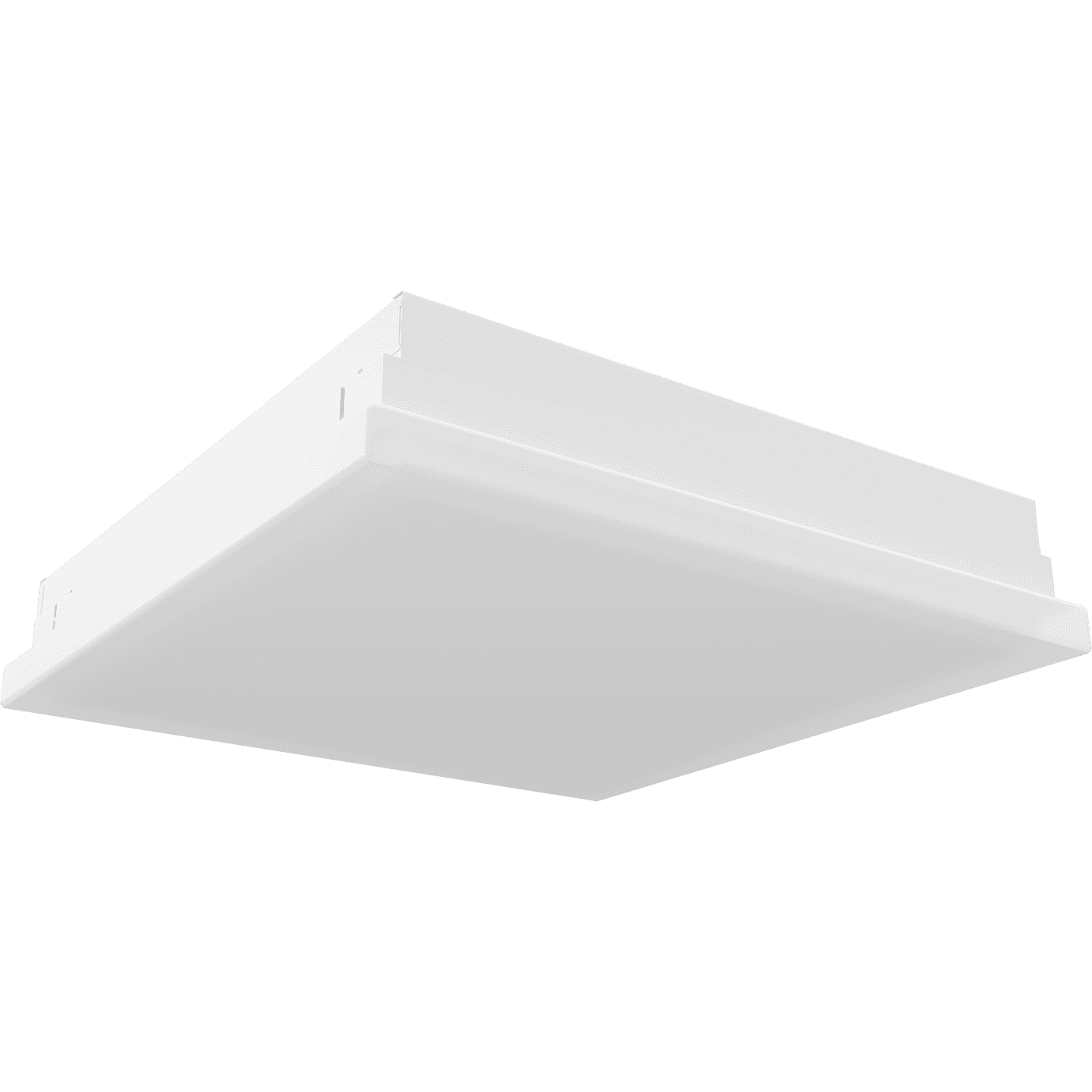

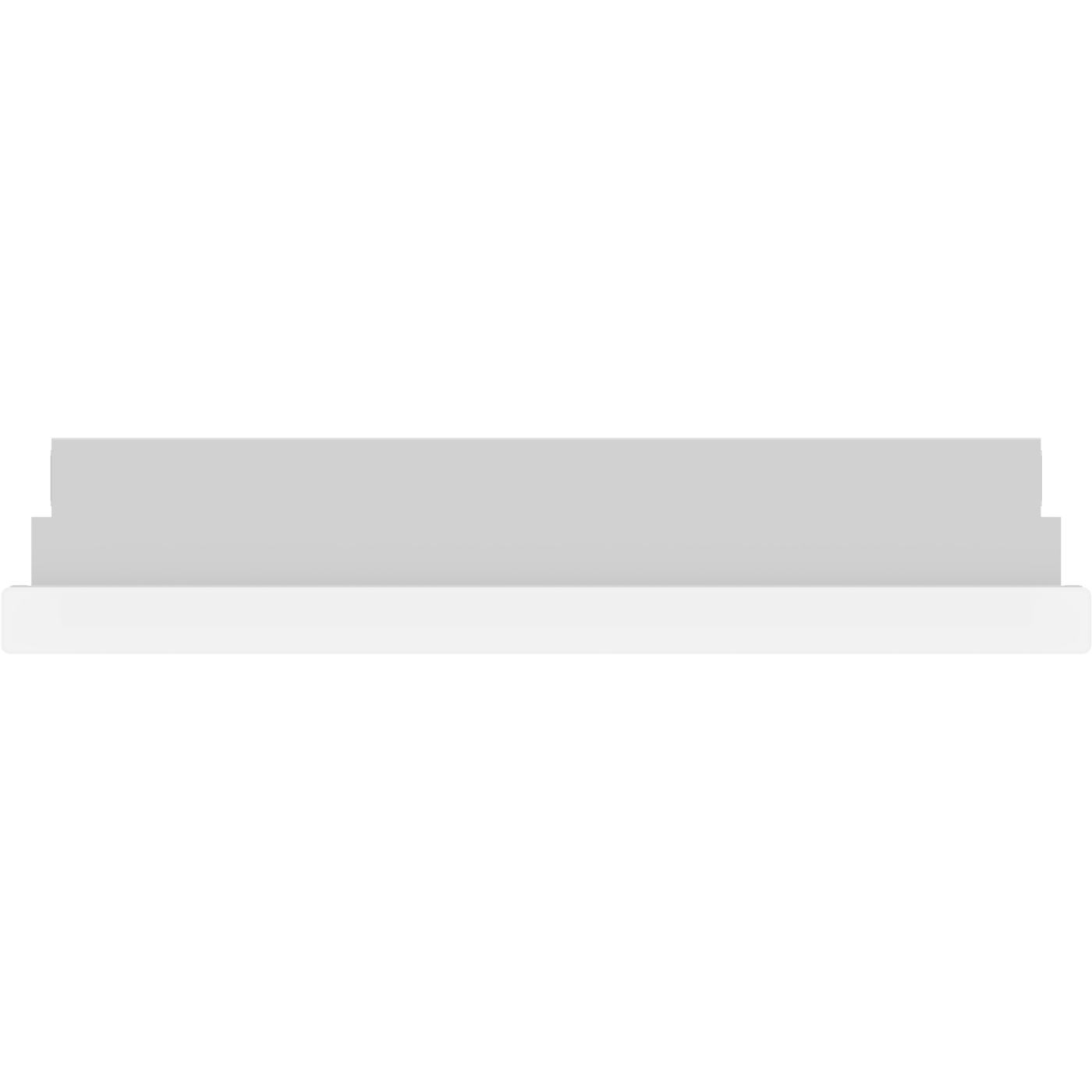

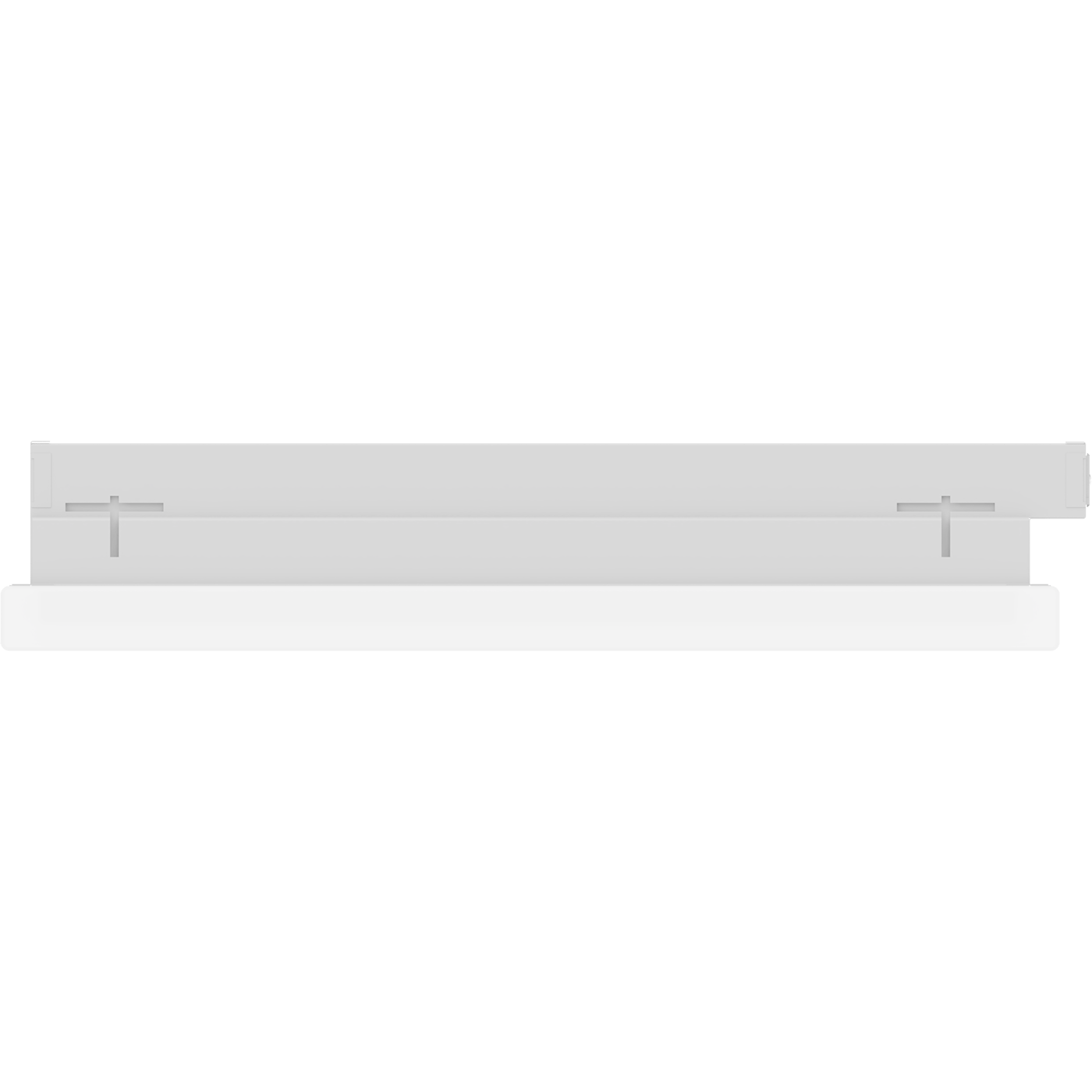

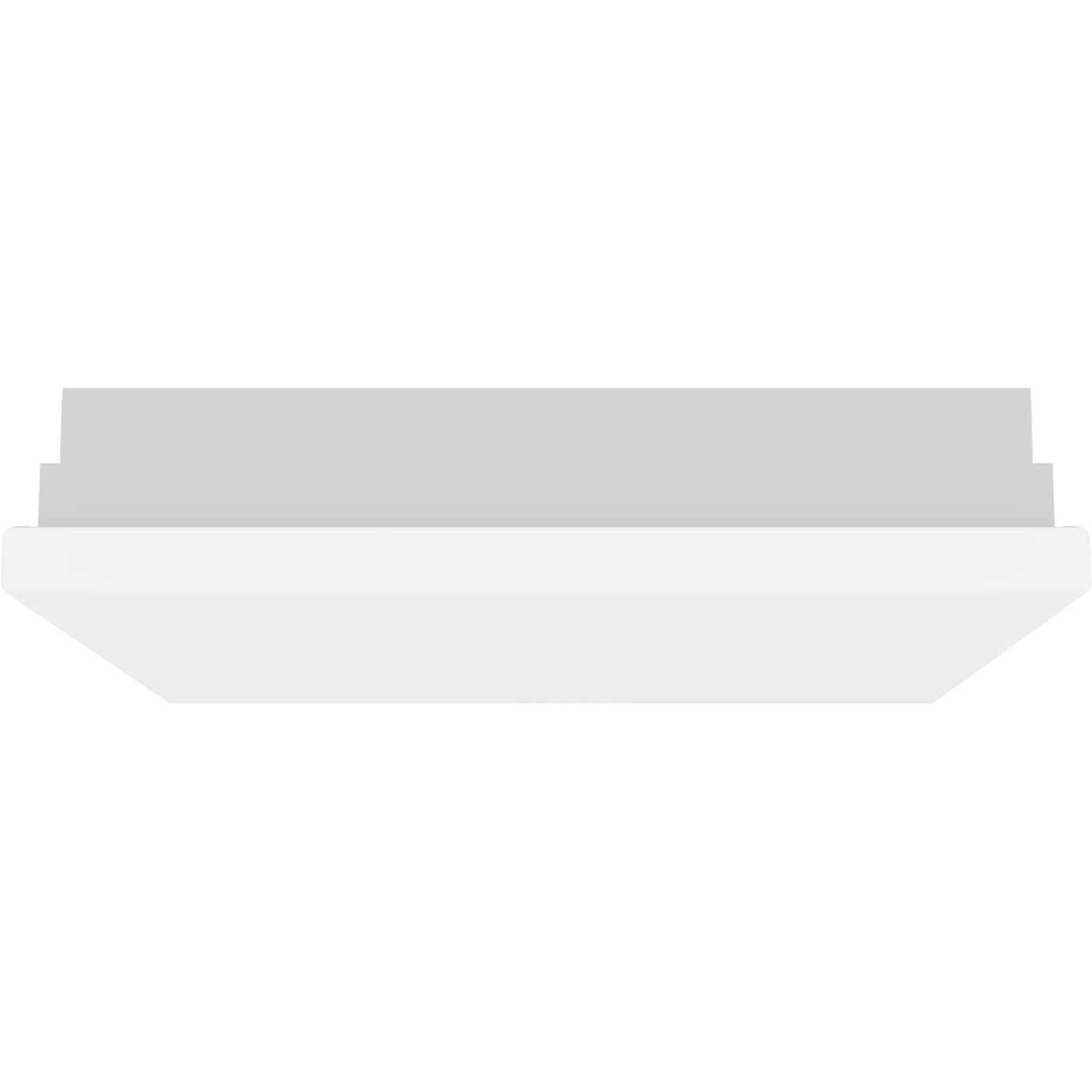

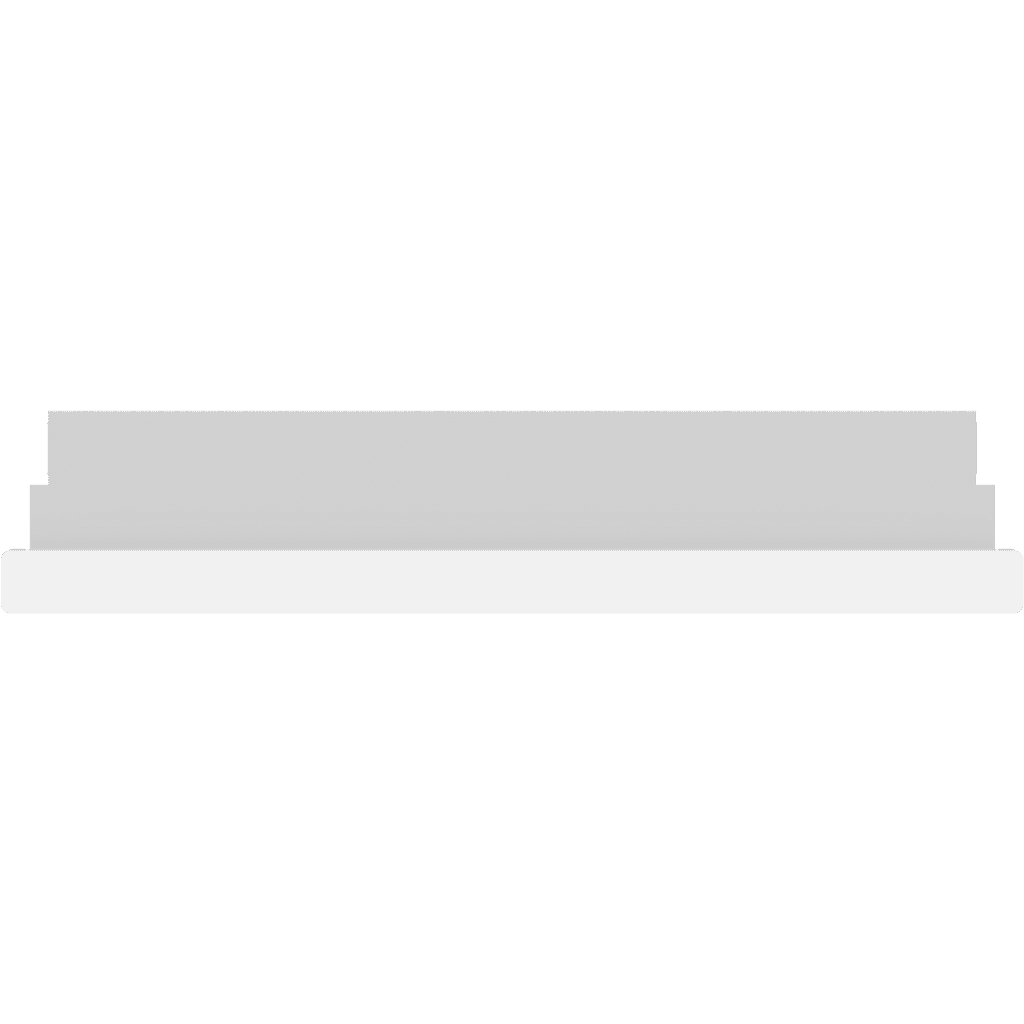

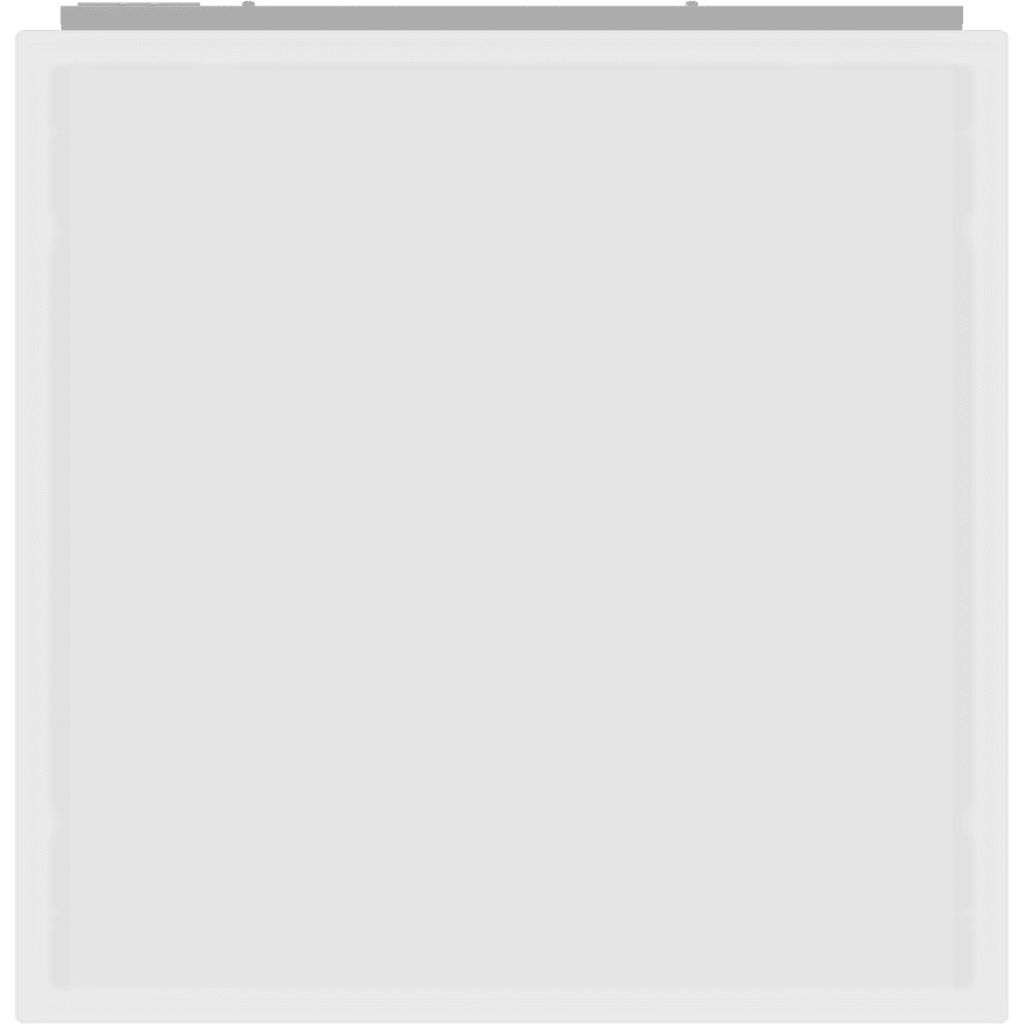

DR. OPL 418 /595/ HF SET

DR. OPL 418 /595/ HF SET
add to favorites
72 Wluminaire power
code1025000110
performance factor58
number of lamps4
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. lamp luminaires
  6. DR.OPL
  7. DR. OPL 418 /595/ HF SET
options
свернуть все
illuminatingelectricalconstructionalcommon
flickering factor
<5%
light source type
ЛЛ
emission color
Белый
illuminating
flickering factor
<5%
light source type
ЛЛ
emission color
Белый
electrical
supply voltage
230 V
rated supply voltage, alternating current
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,96
electric shock protection
I
luminaire power
72 W

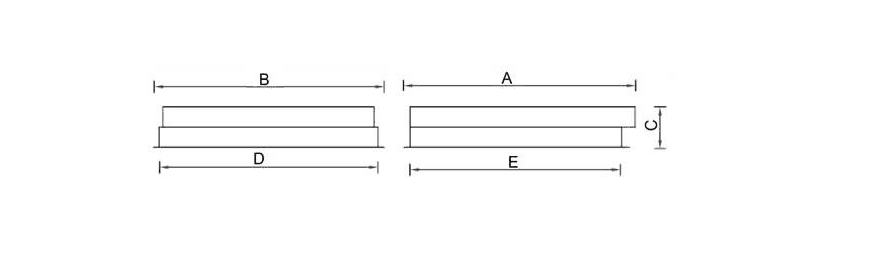

constructional
height
110 mm
installation width
575 mm
installation length
575 mm
width
605 mm
length
605 mm
common
energy efficiency class
A
service life
30 000 h
warranty
36 month
code
1025000110
temperature range
от +5 до +35 C
ETIM class
Настенно-потолочный светильник
model files
model files
CAD/BIM files
model 3dMax3.2 mB
photometric files
ies915 B
jpg128.2 kB
ldt684 B
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
model 3dMax3.2 mB

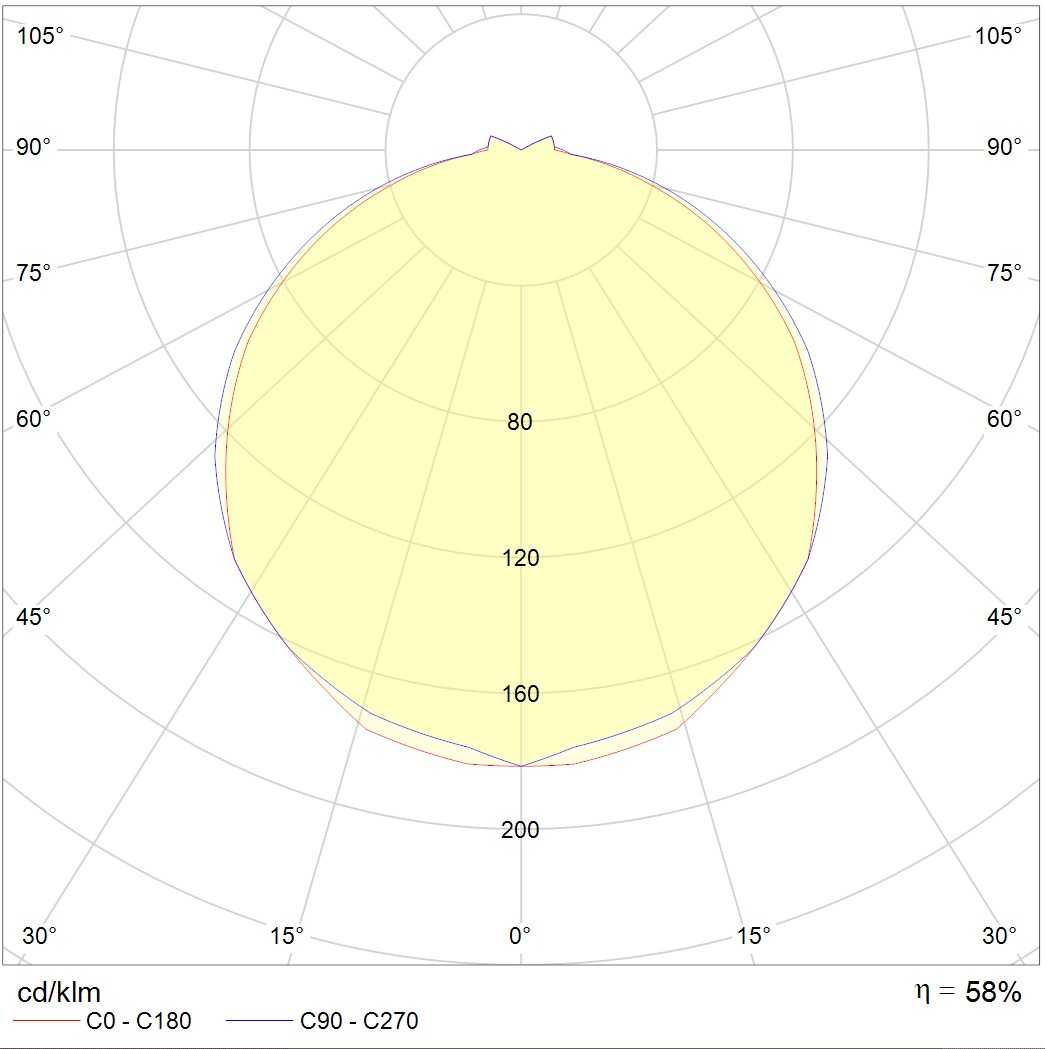

photometric files
ies915 B
jpg128.2 kB
ldt684 B
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories
Clip0.018kgarticle: 2905000110
