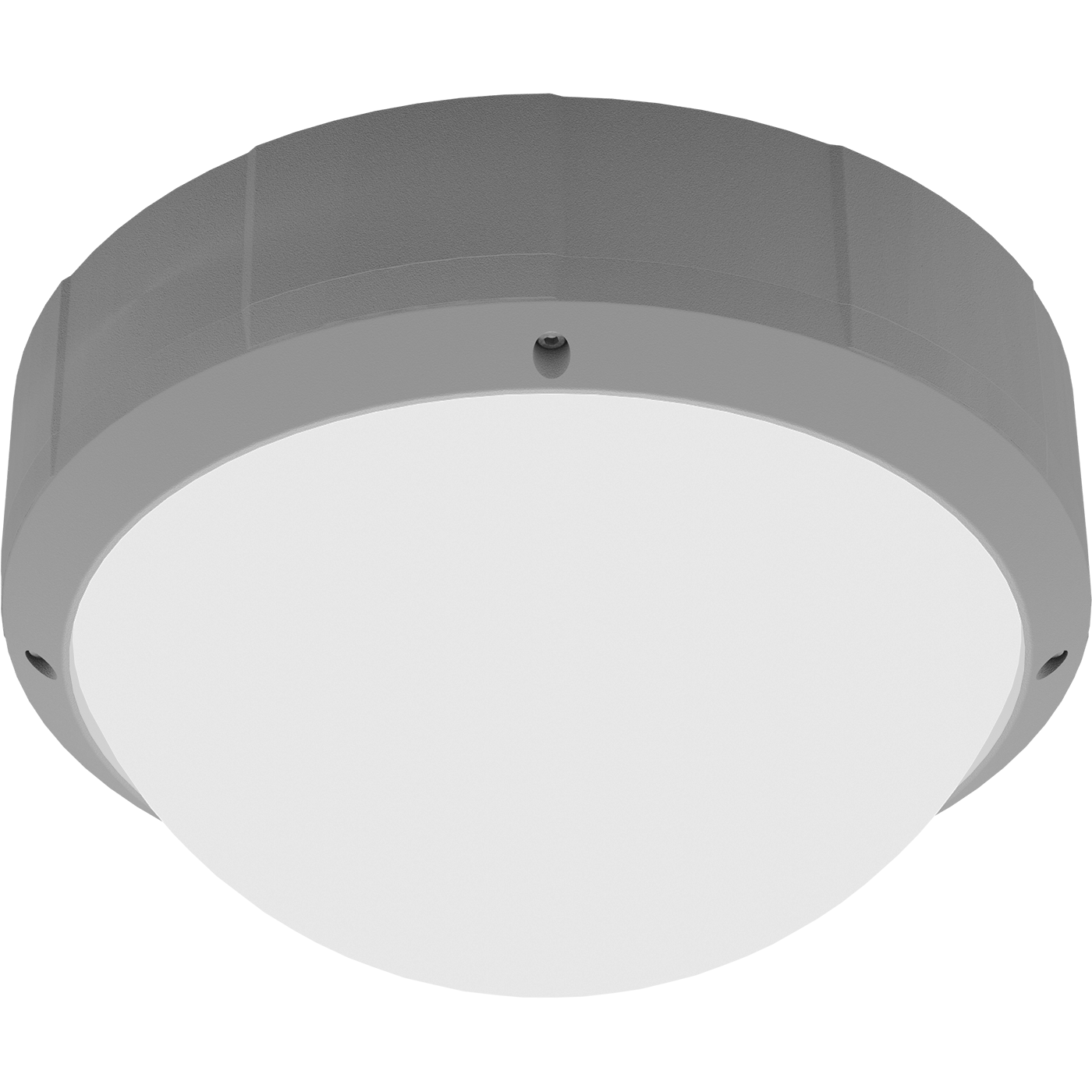

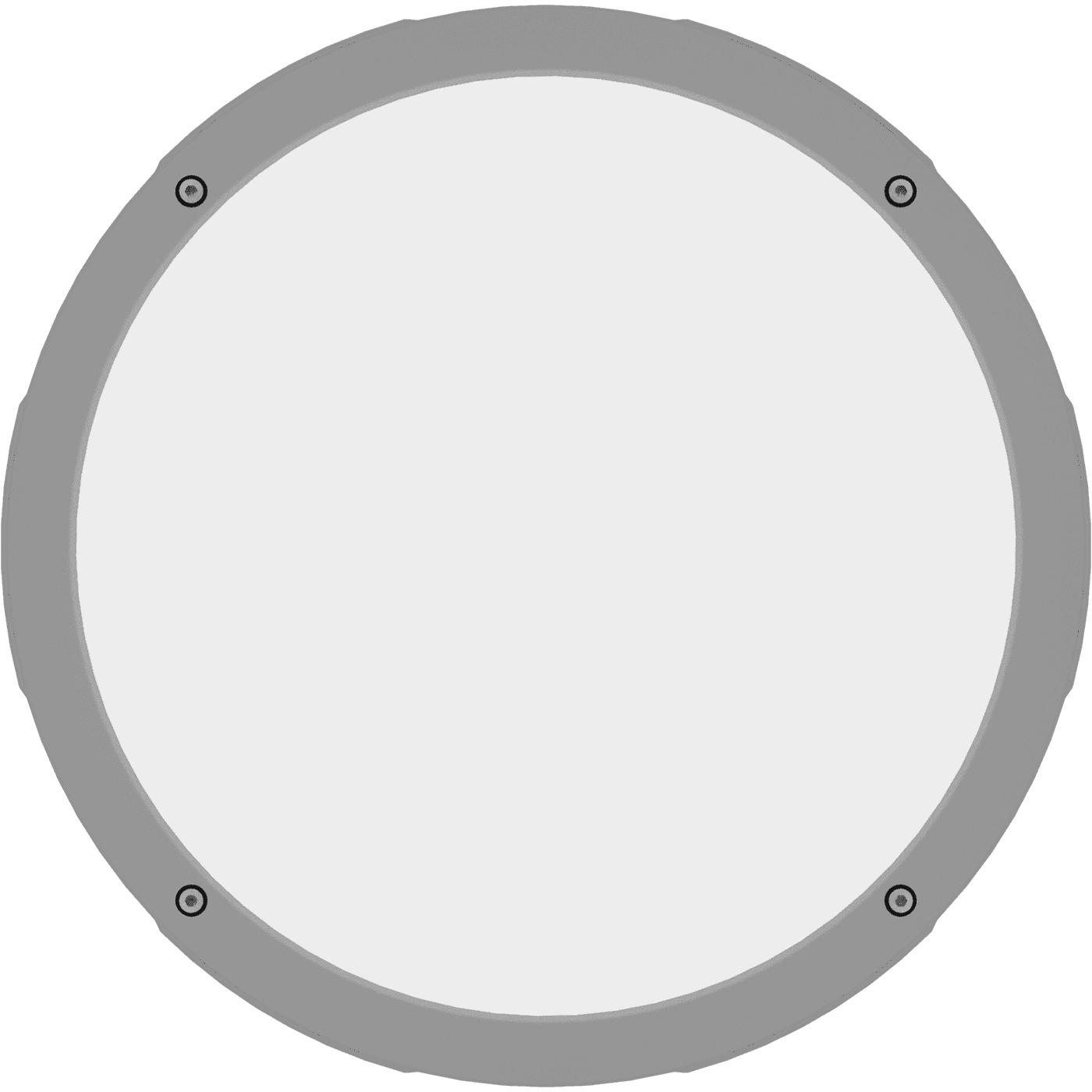

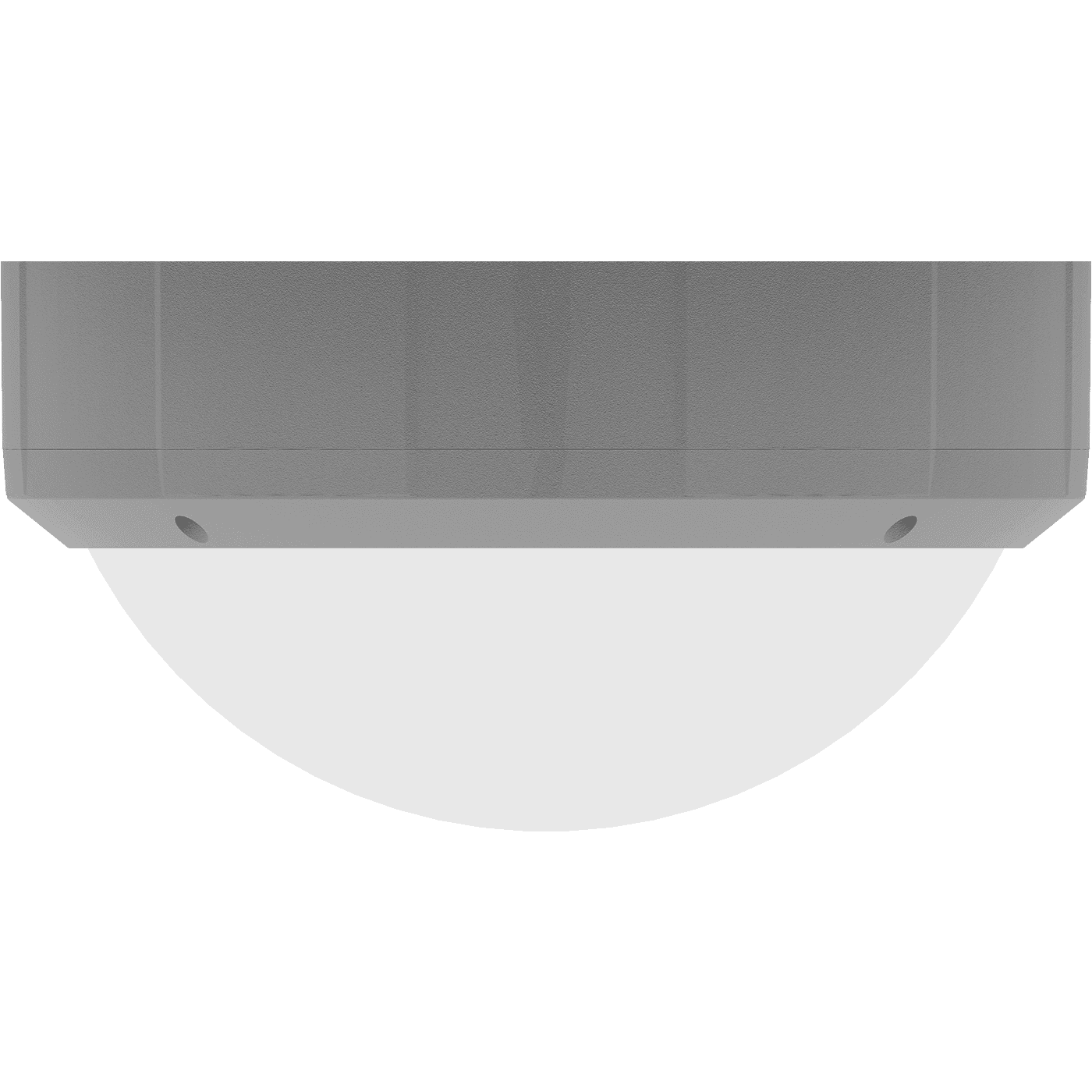

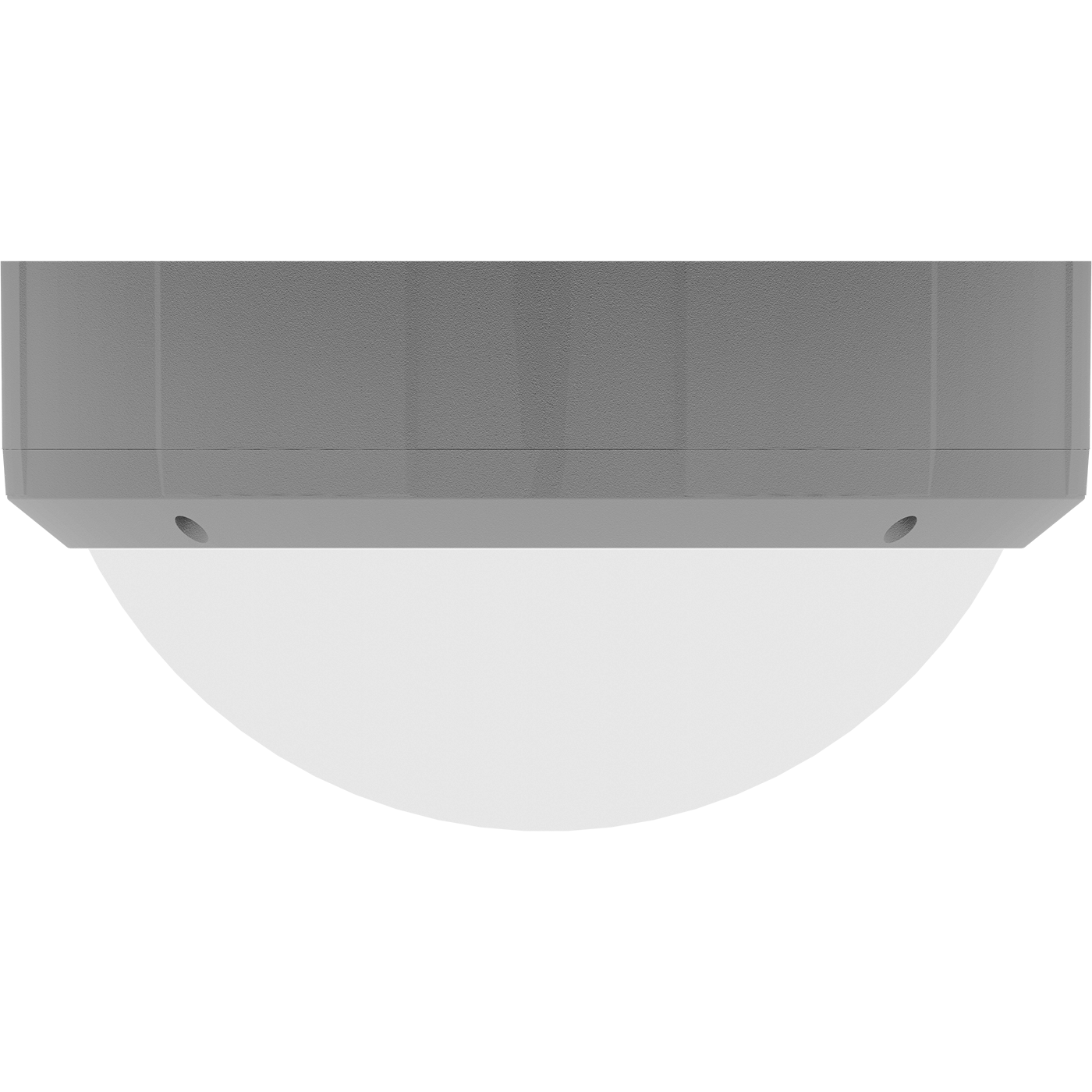

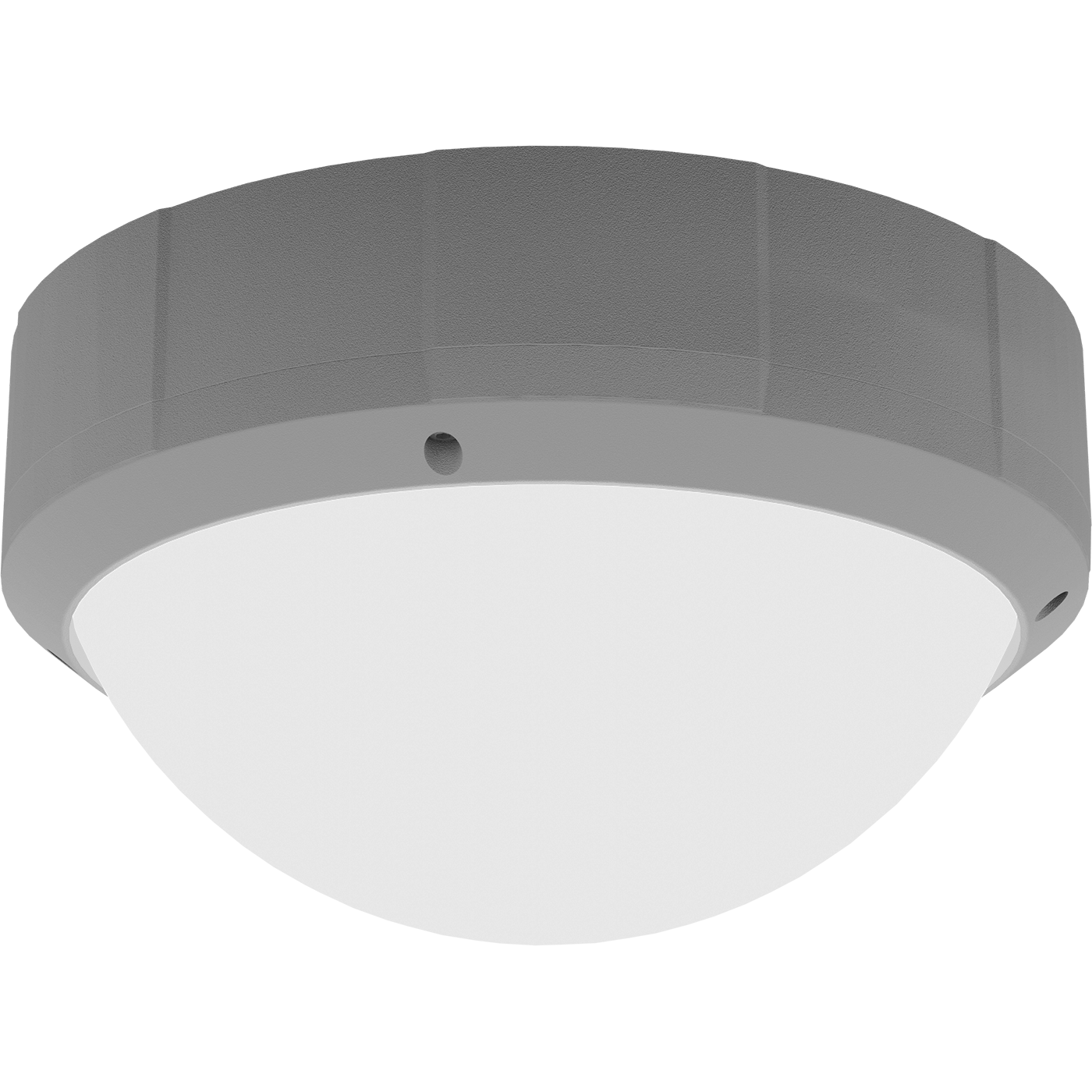

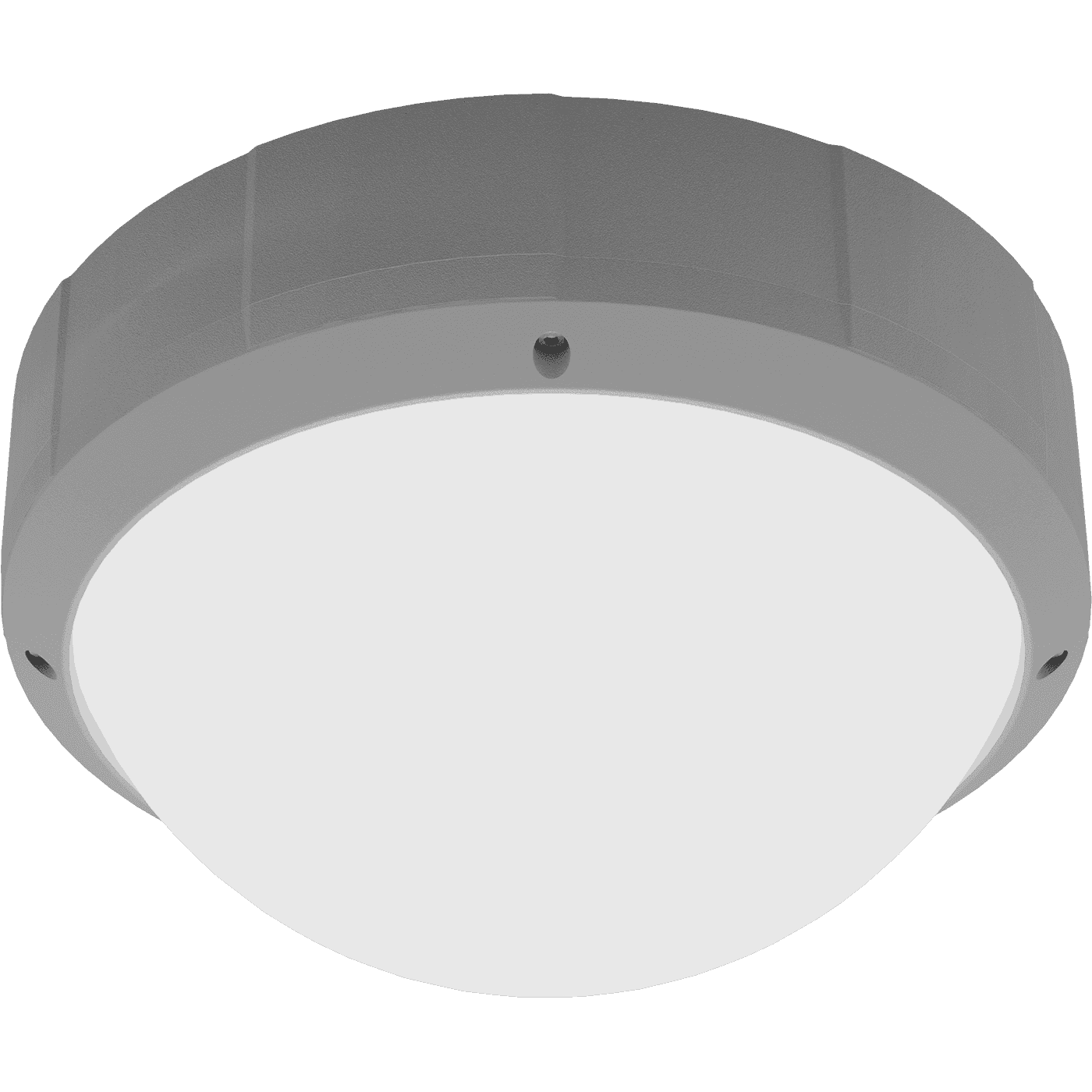

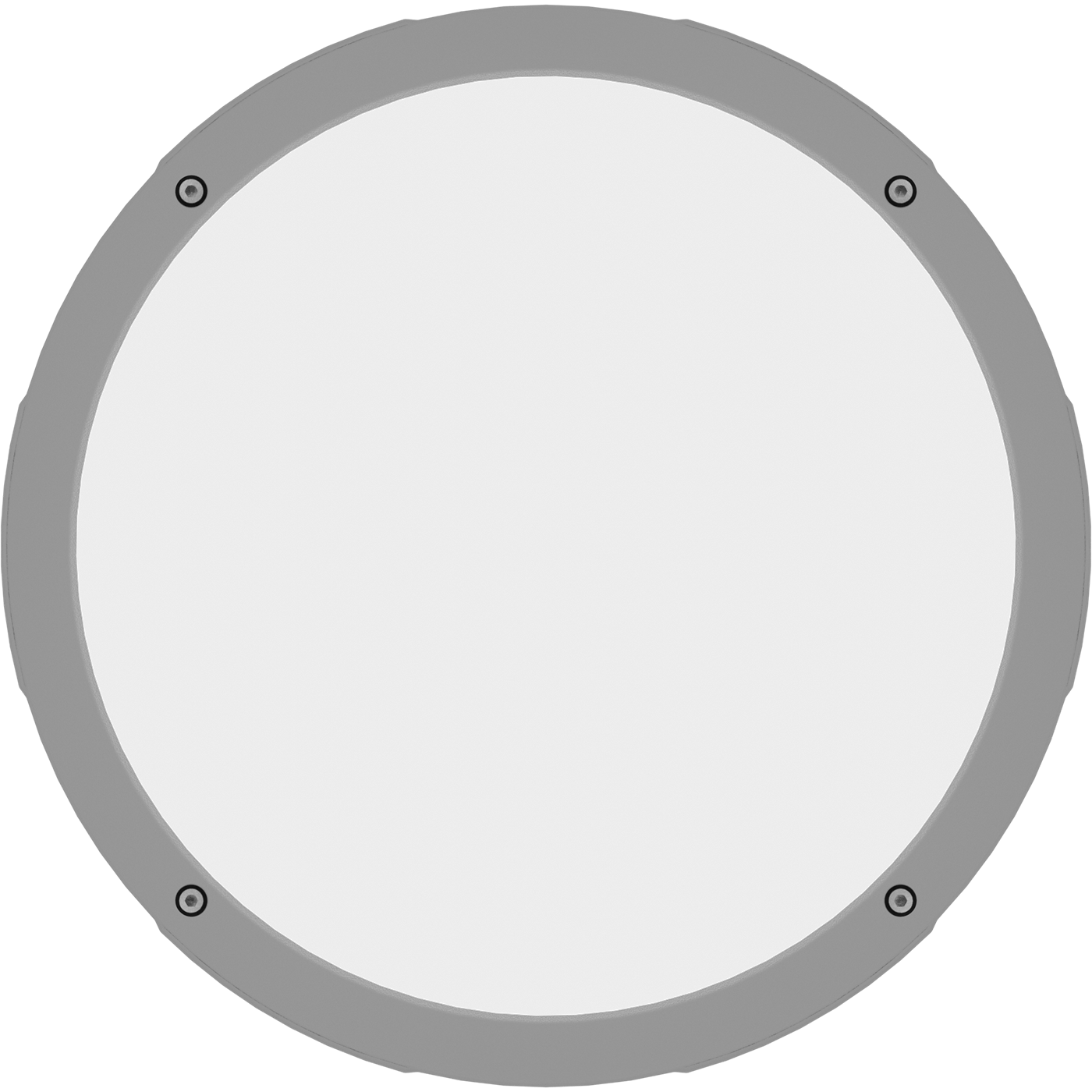

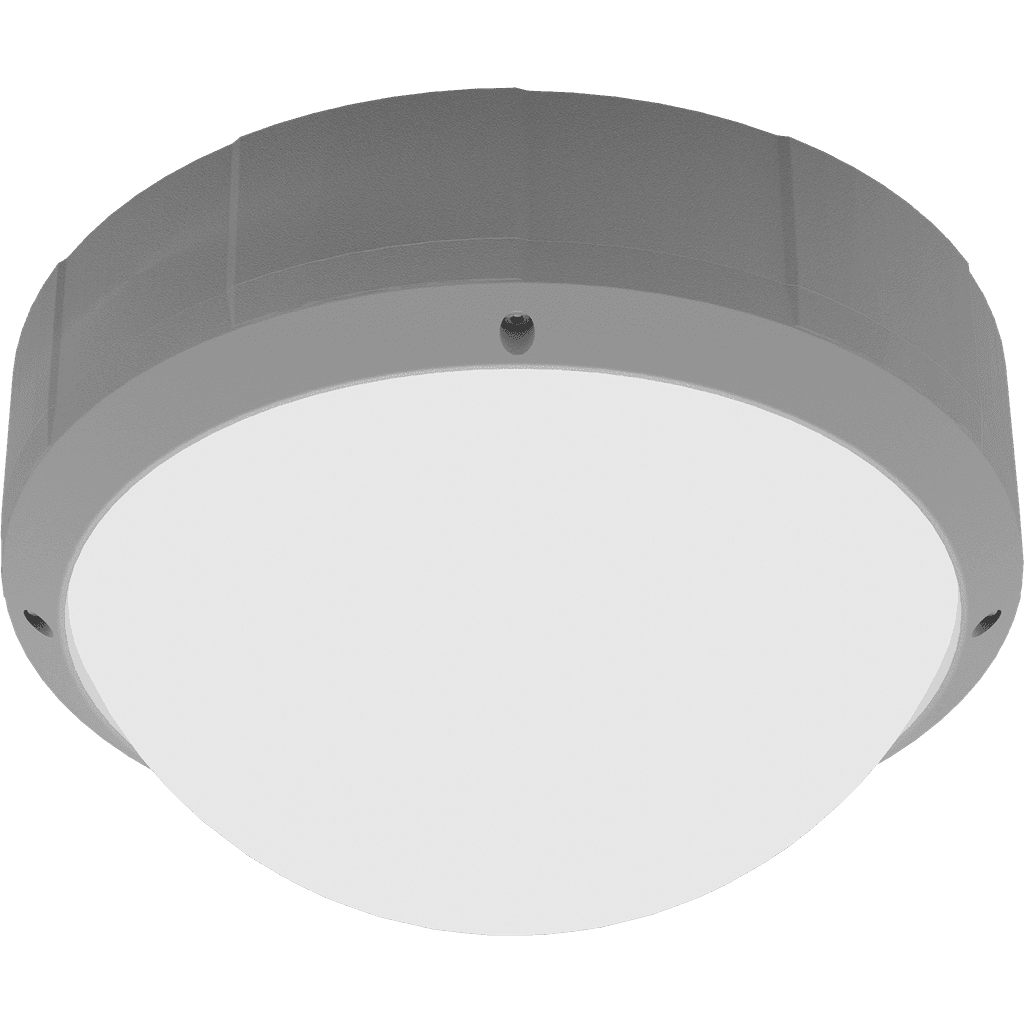

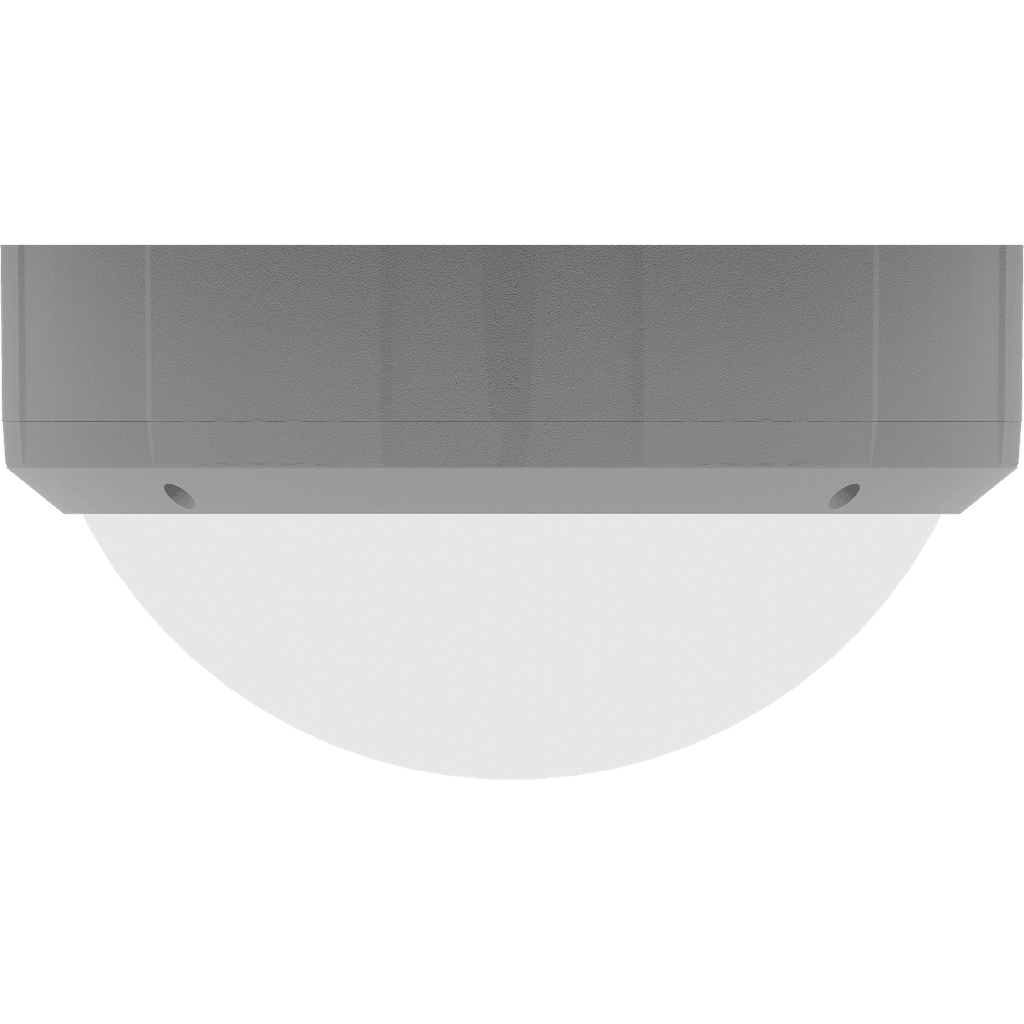

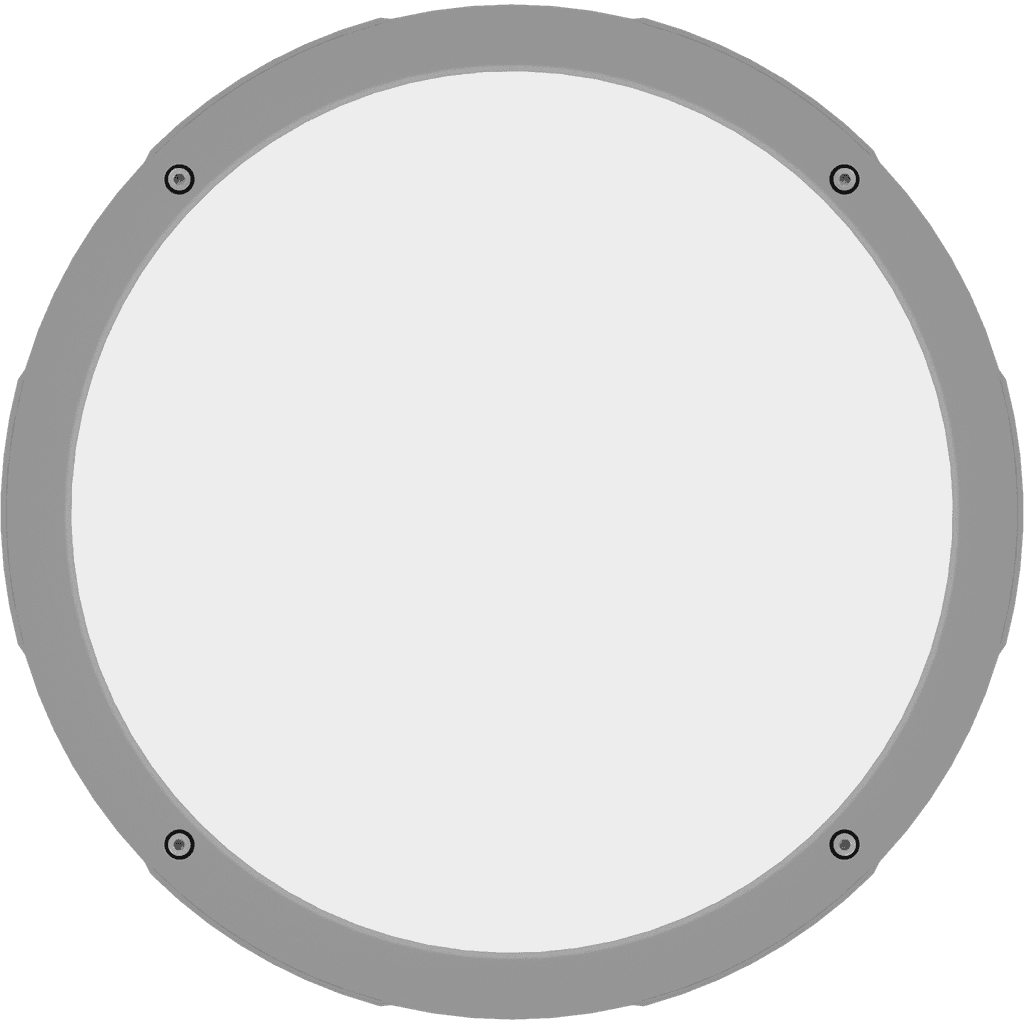

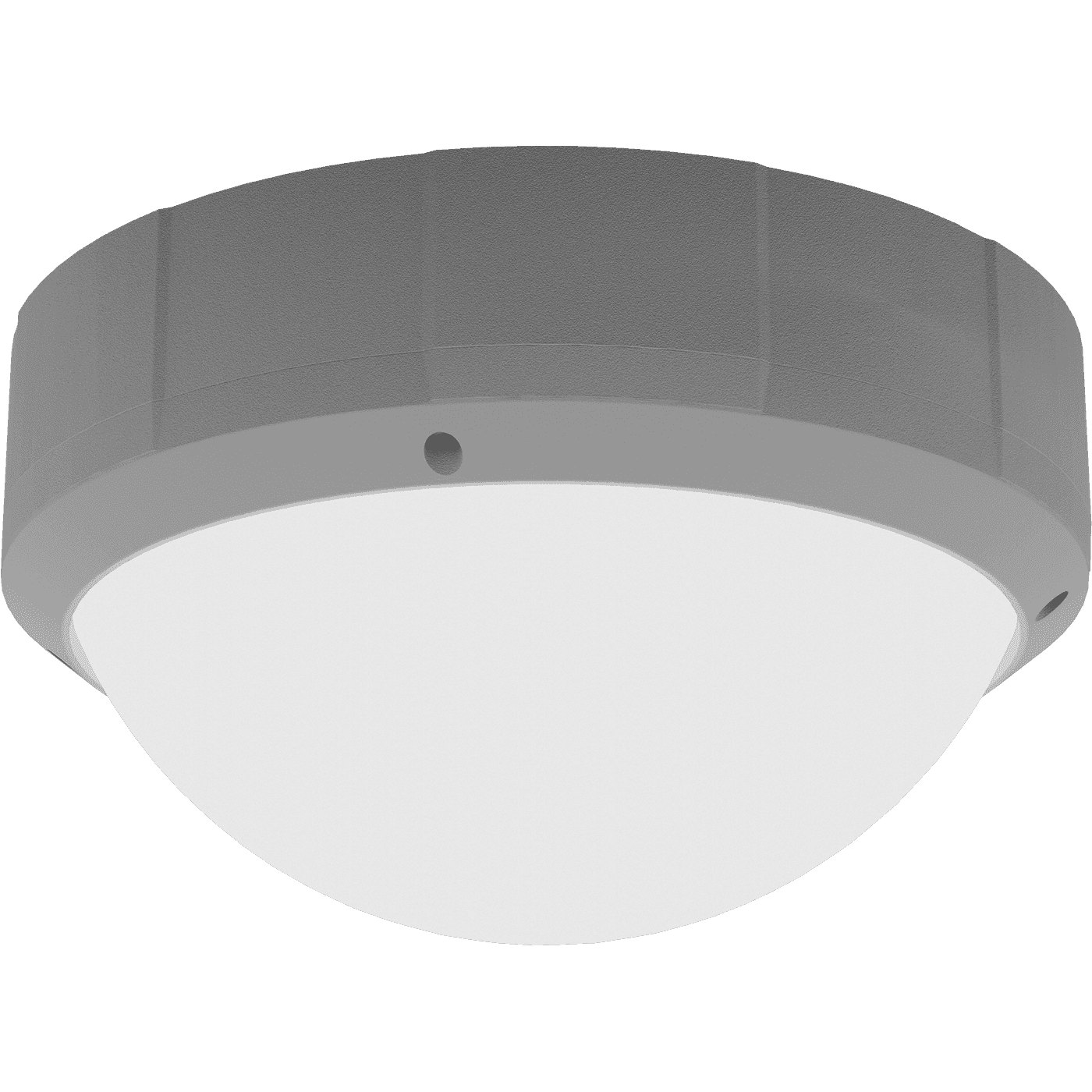

DAMIN LED 30W 840 BL EXTREME
DAMIN LED 30W 840 BL EXTREME
30 Wluminaire power
2800 lmlight flow
93 lm/Wenergy efficiency
code1440000090
beam angleD120
color temperature4000
weight4 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
7 Astarting current pulse time, µs
50 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
198-264 Vsupply voltage, direct current
176-280 Vluminaire power
30 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
7 A
starting current pulse time, µs
50 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
176-280 V
luminaire power
30 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Алюминий
weight
4 kg
diameter, mm
355 mm
height, mm
200 mm
housing color
Черный
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK10/20 Дж
installation length, mm
270 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1440000090
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
93 lm/W
color rendition index (CRI)
>80
light flow
2800 lm
flickering factor
<2%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

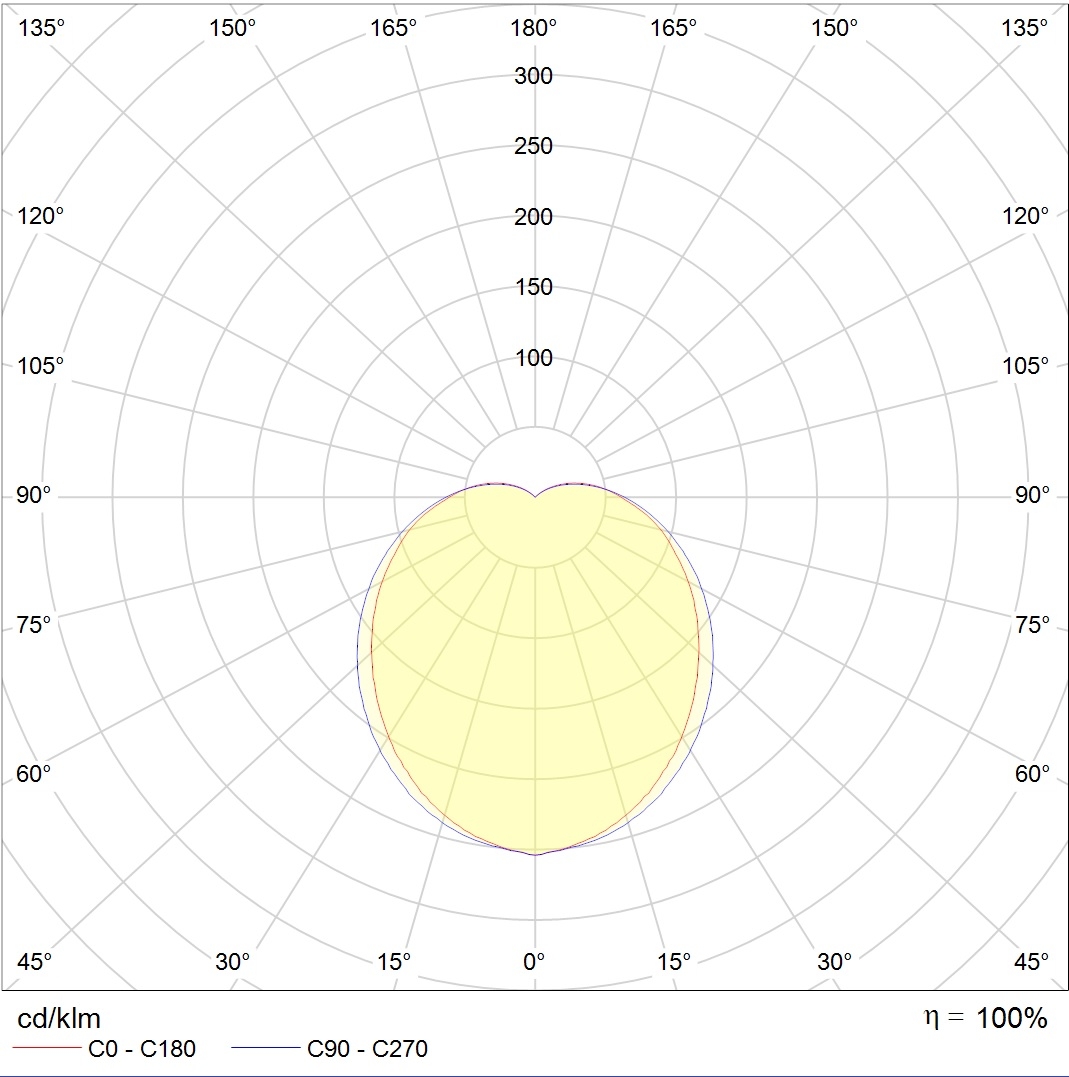

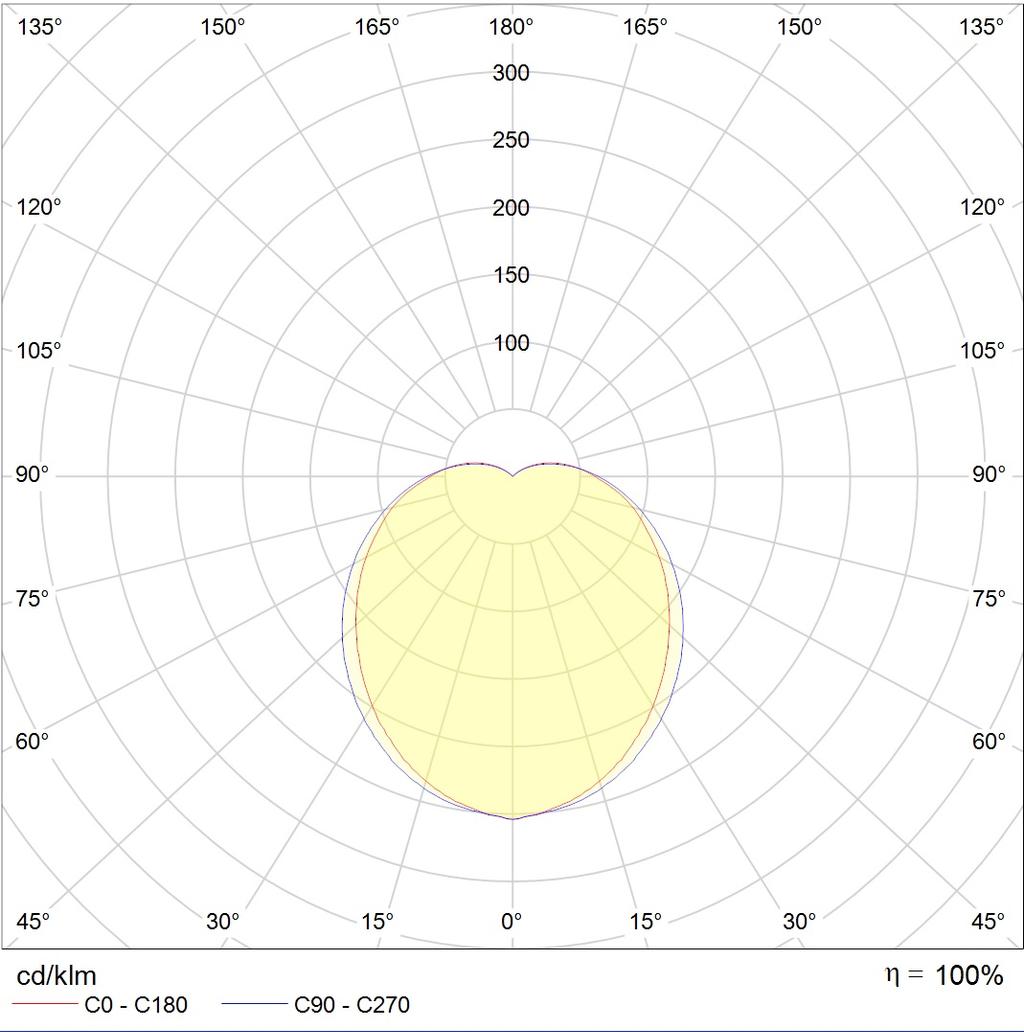

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg170.2 kB
ldt103.8 kB
documents
passport1.5 mB
сертификаты
Russian origin626.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
