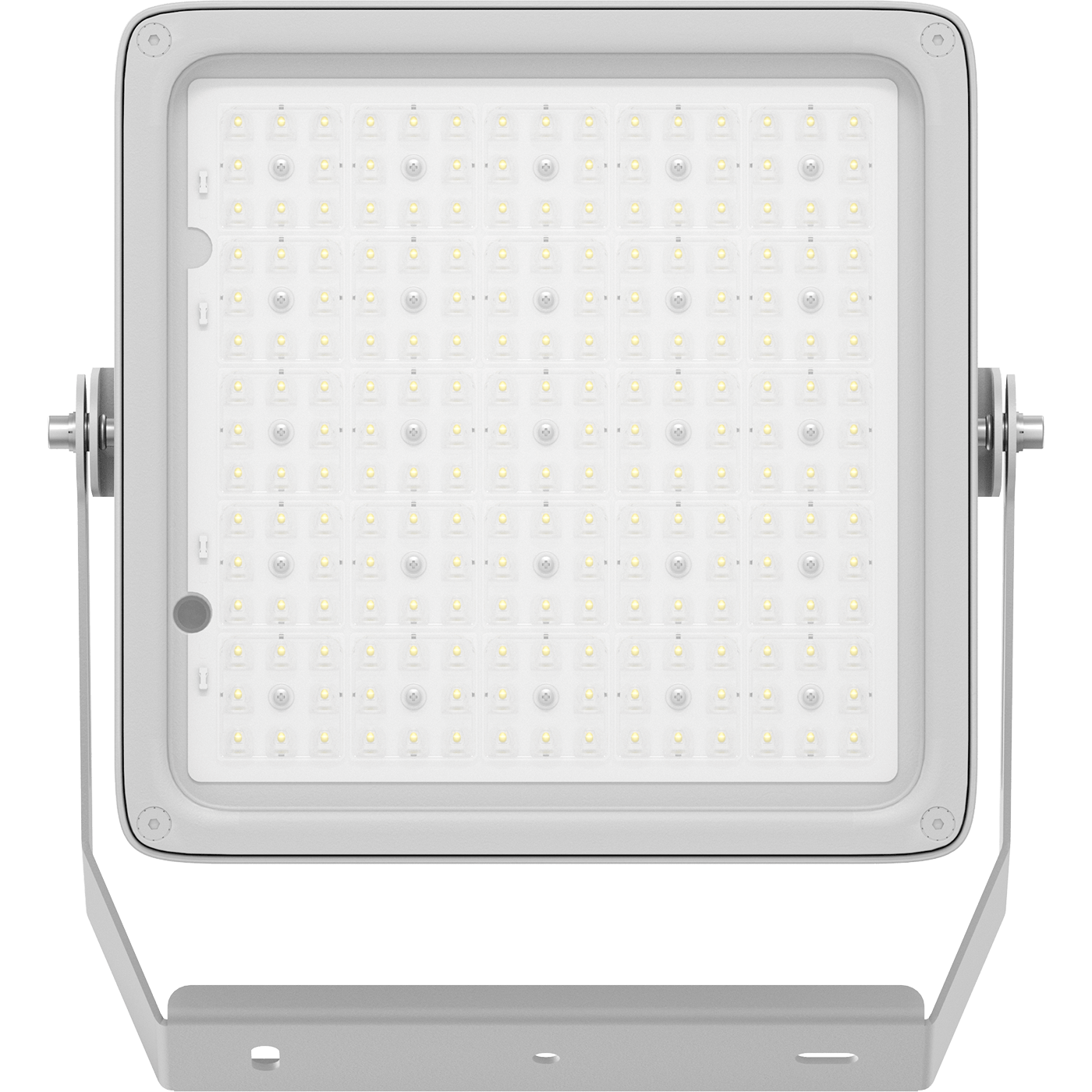

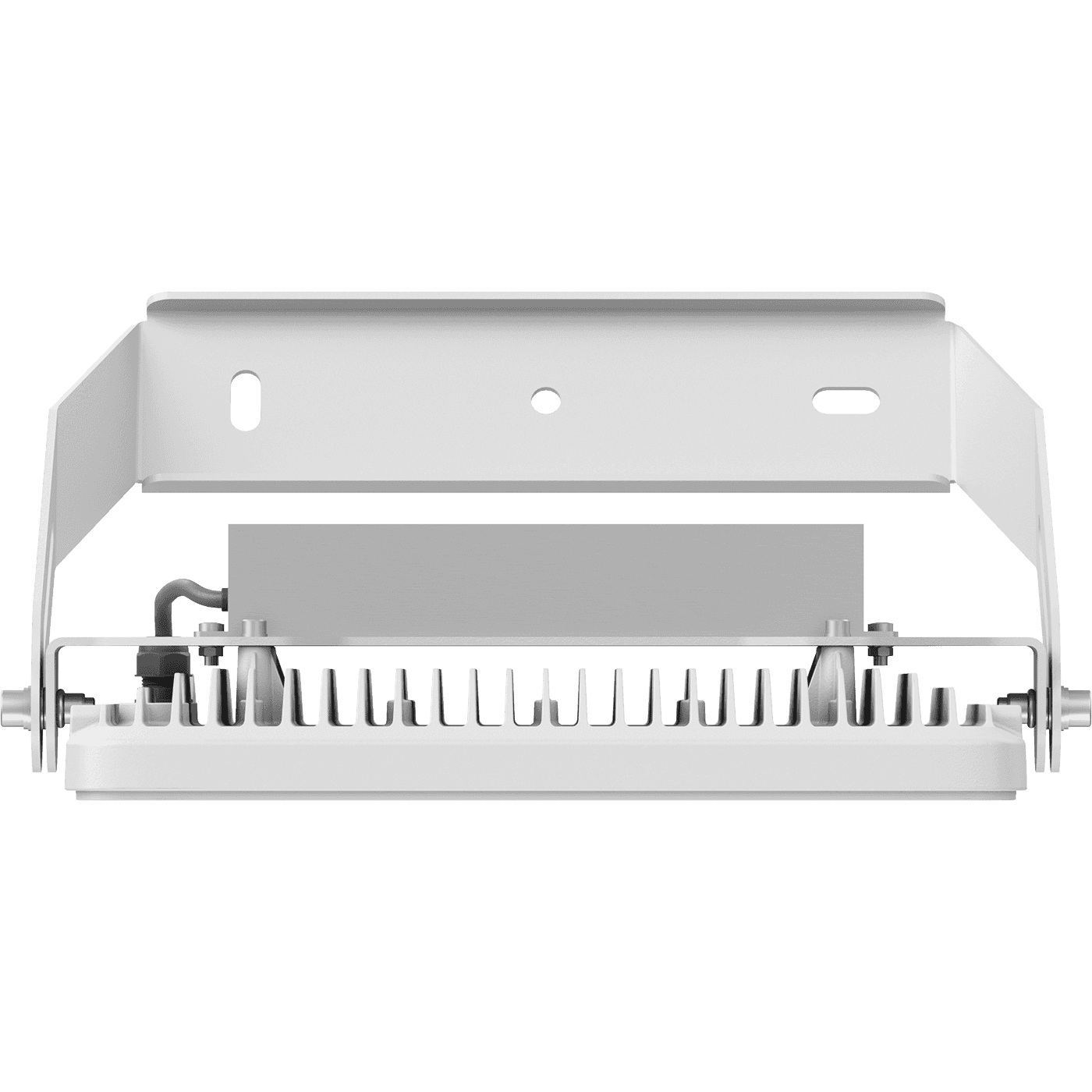

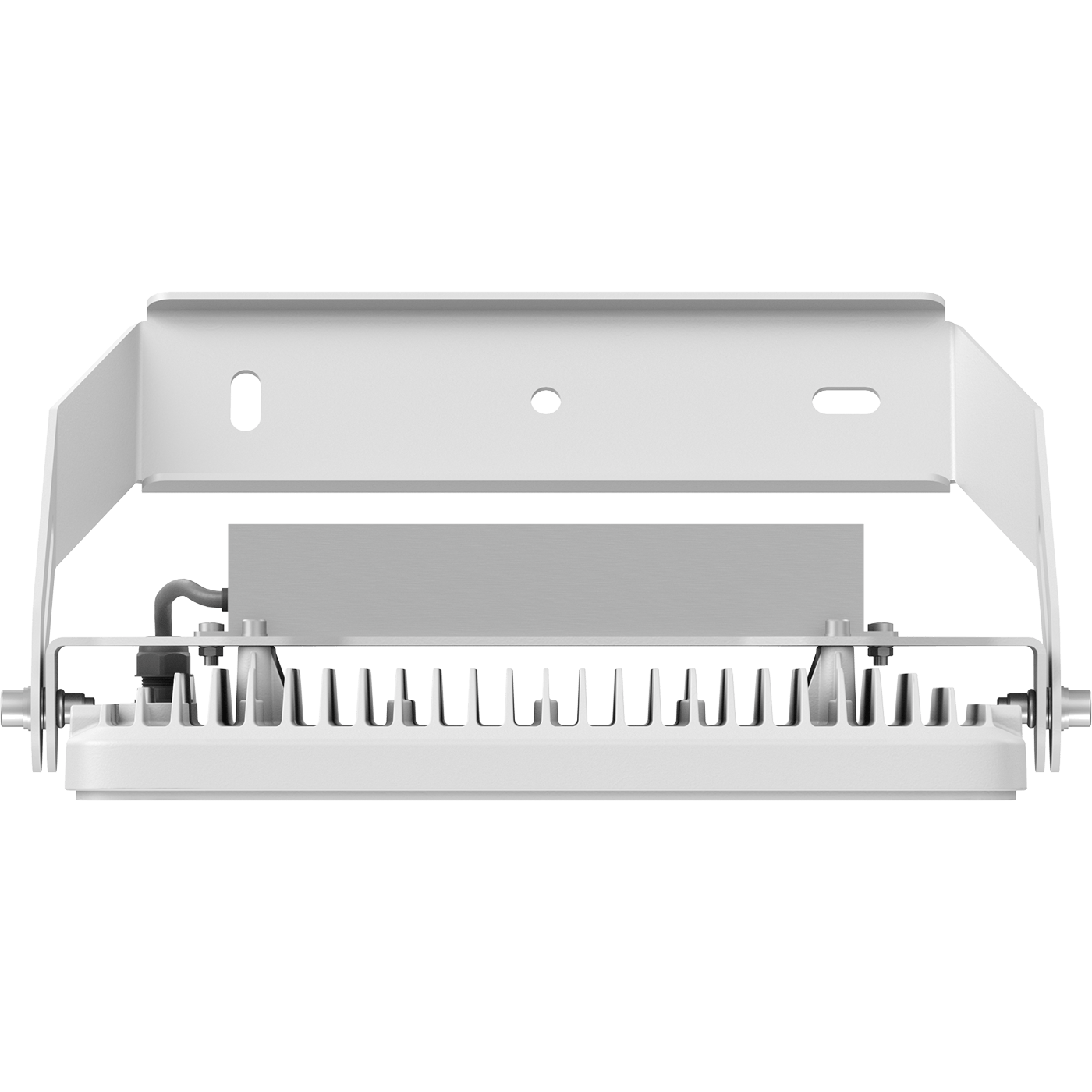

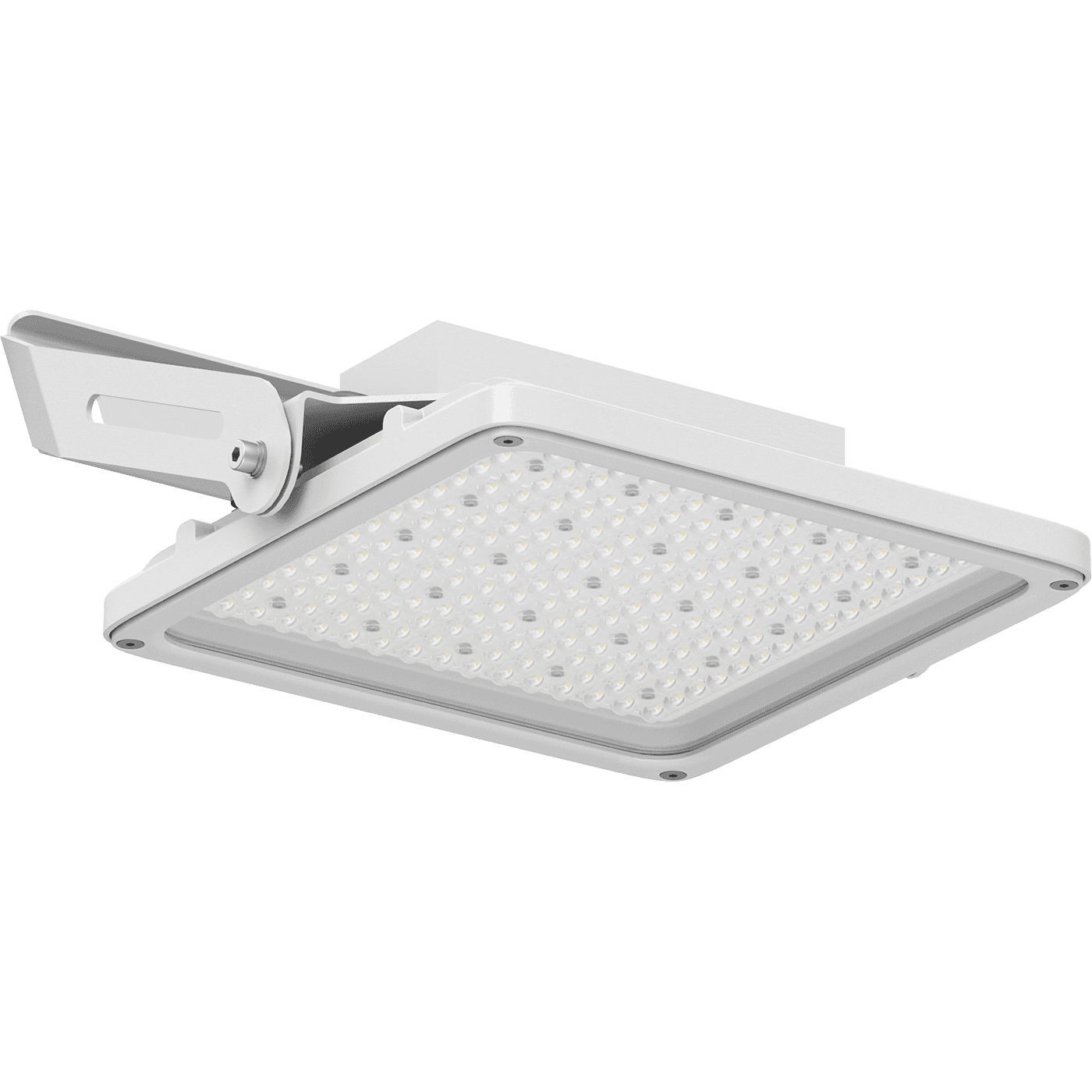

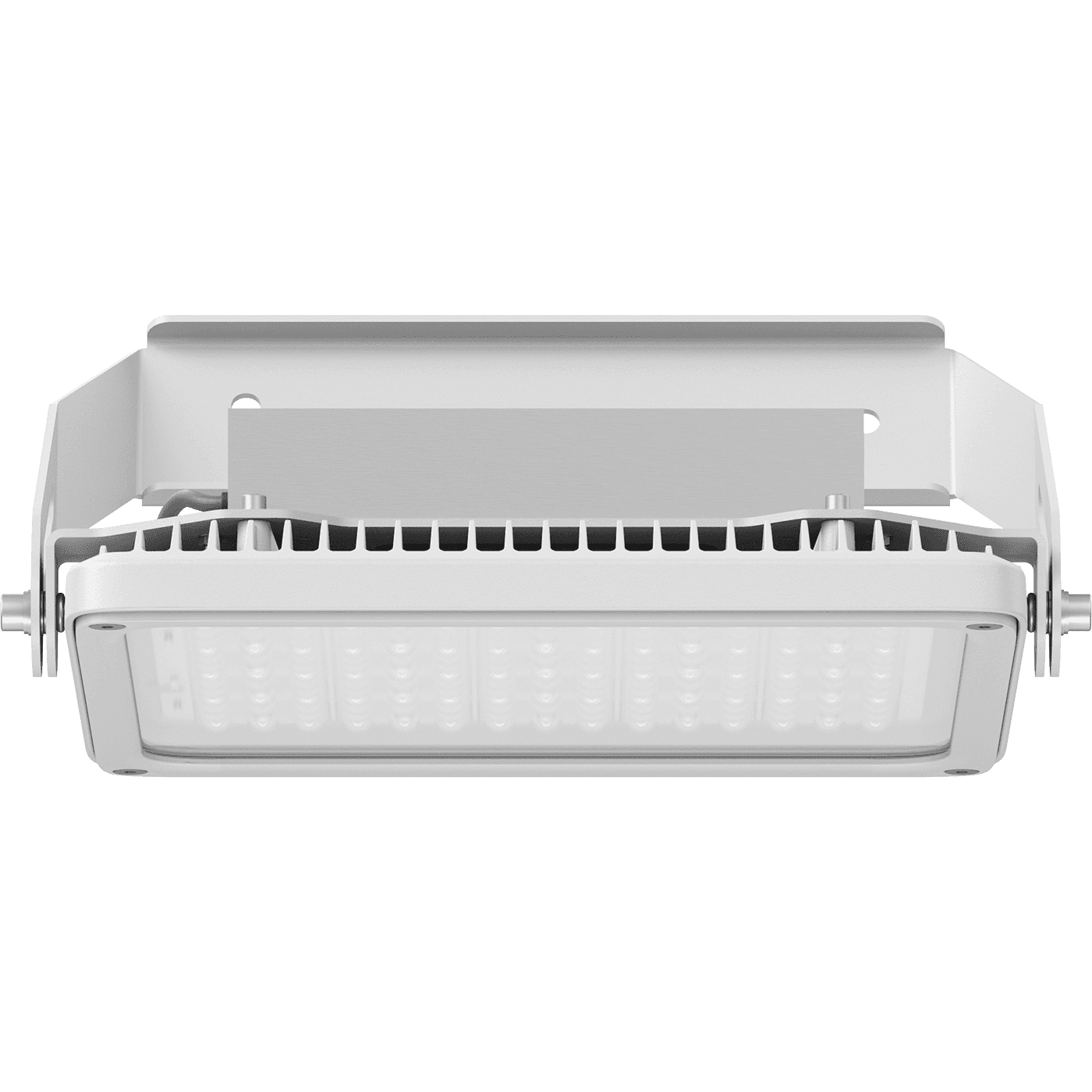

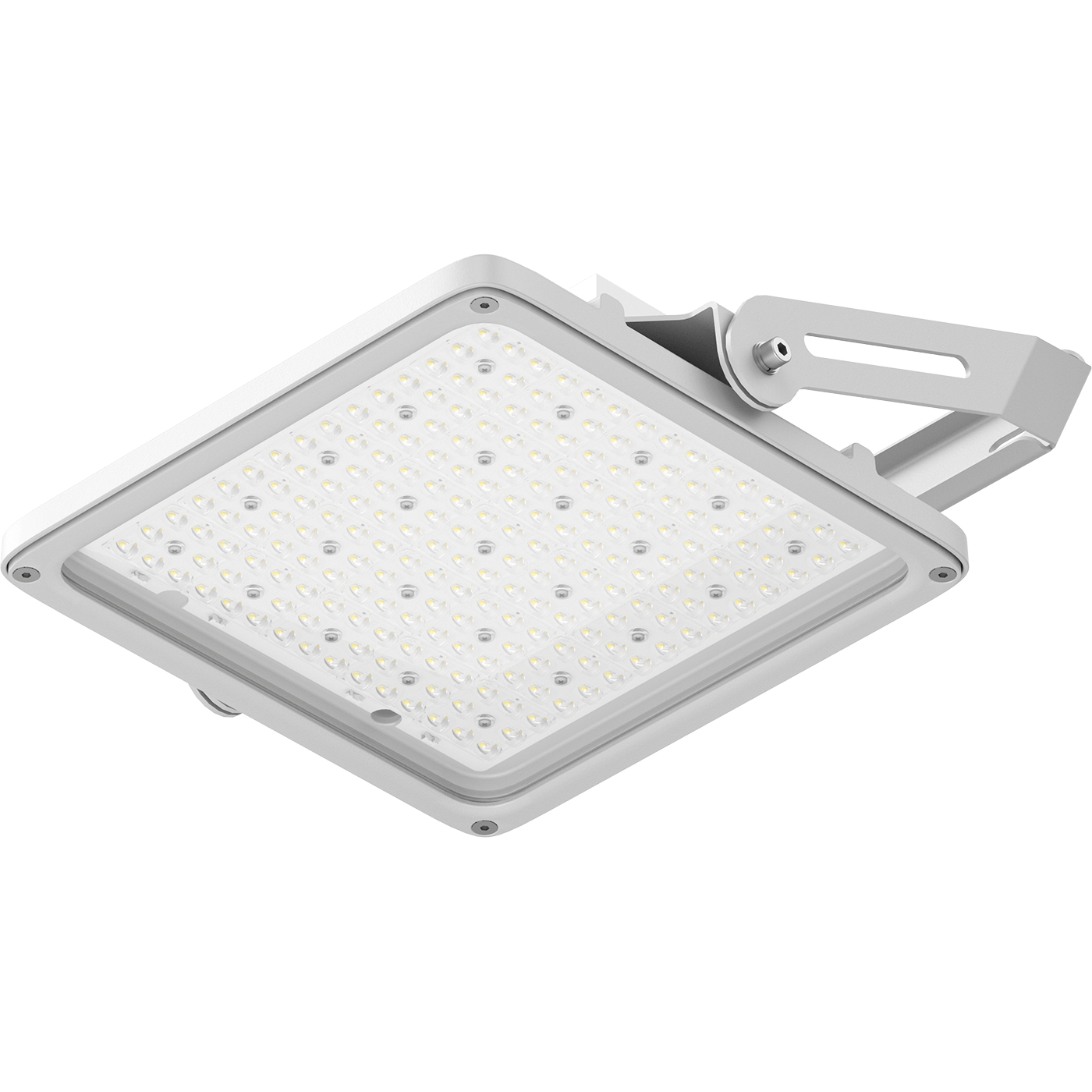

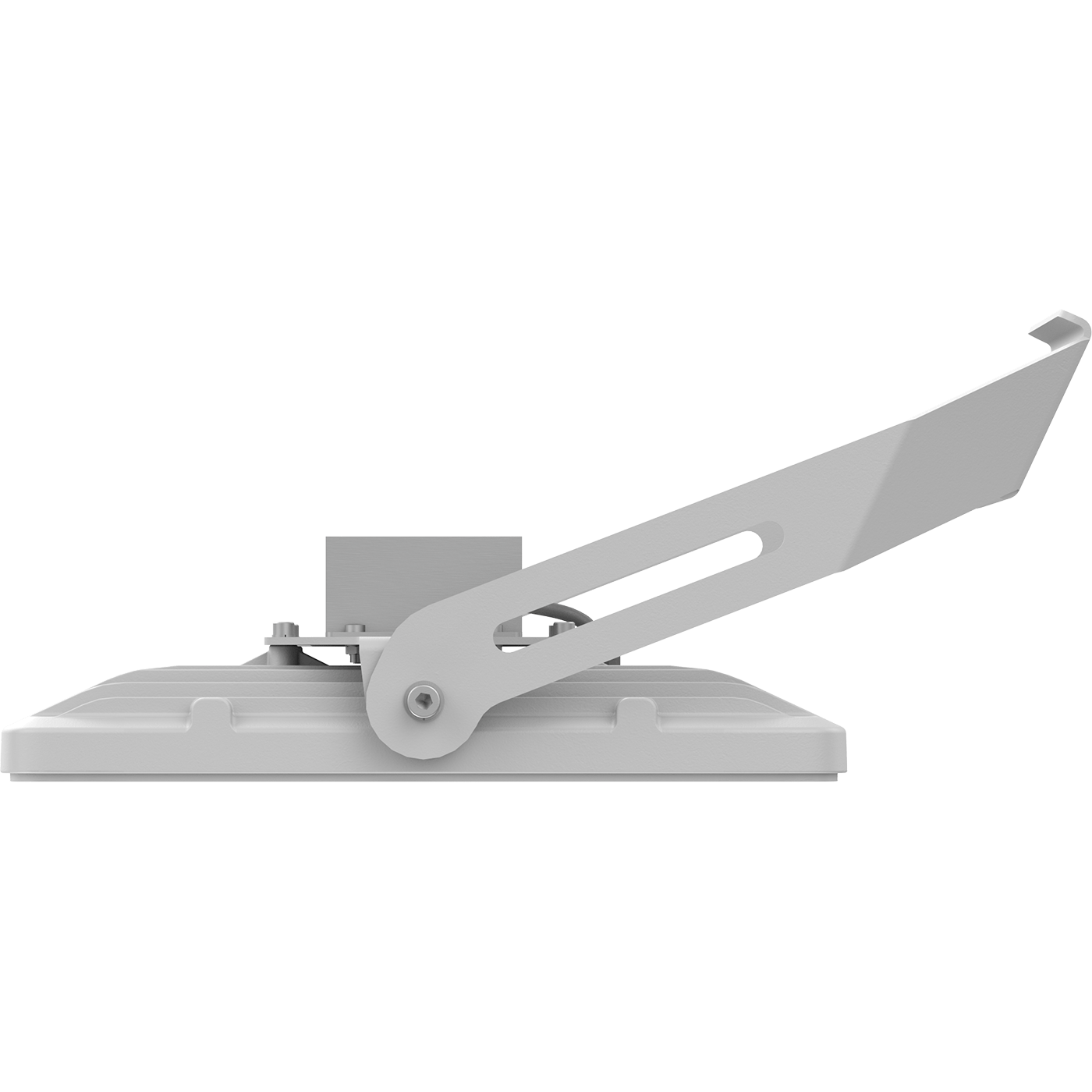

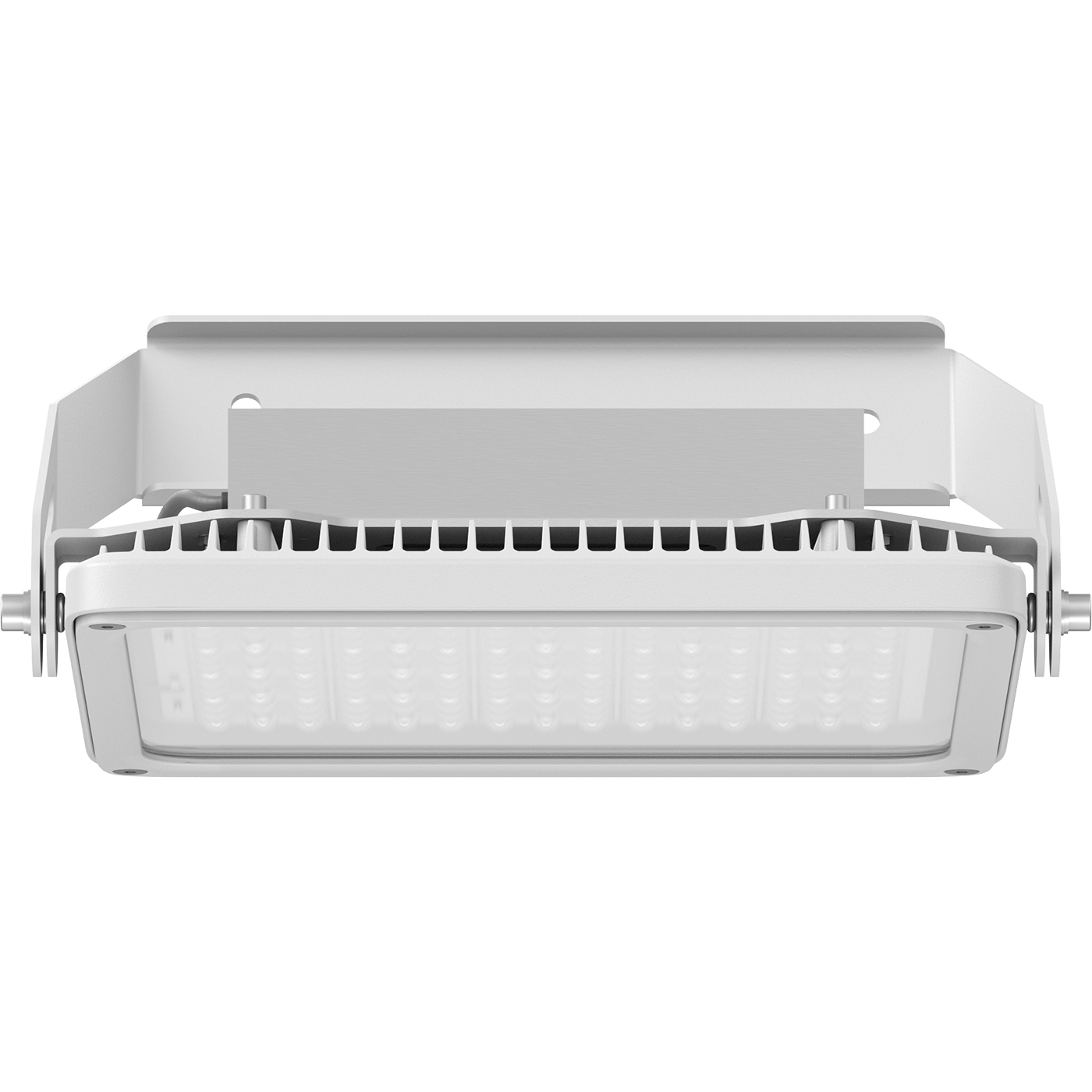

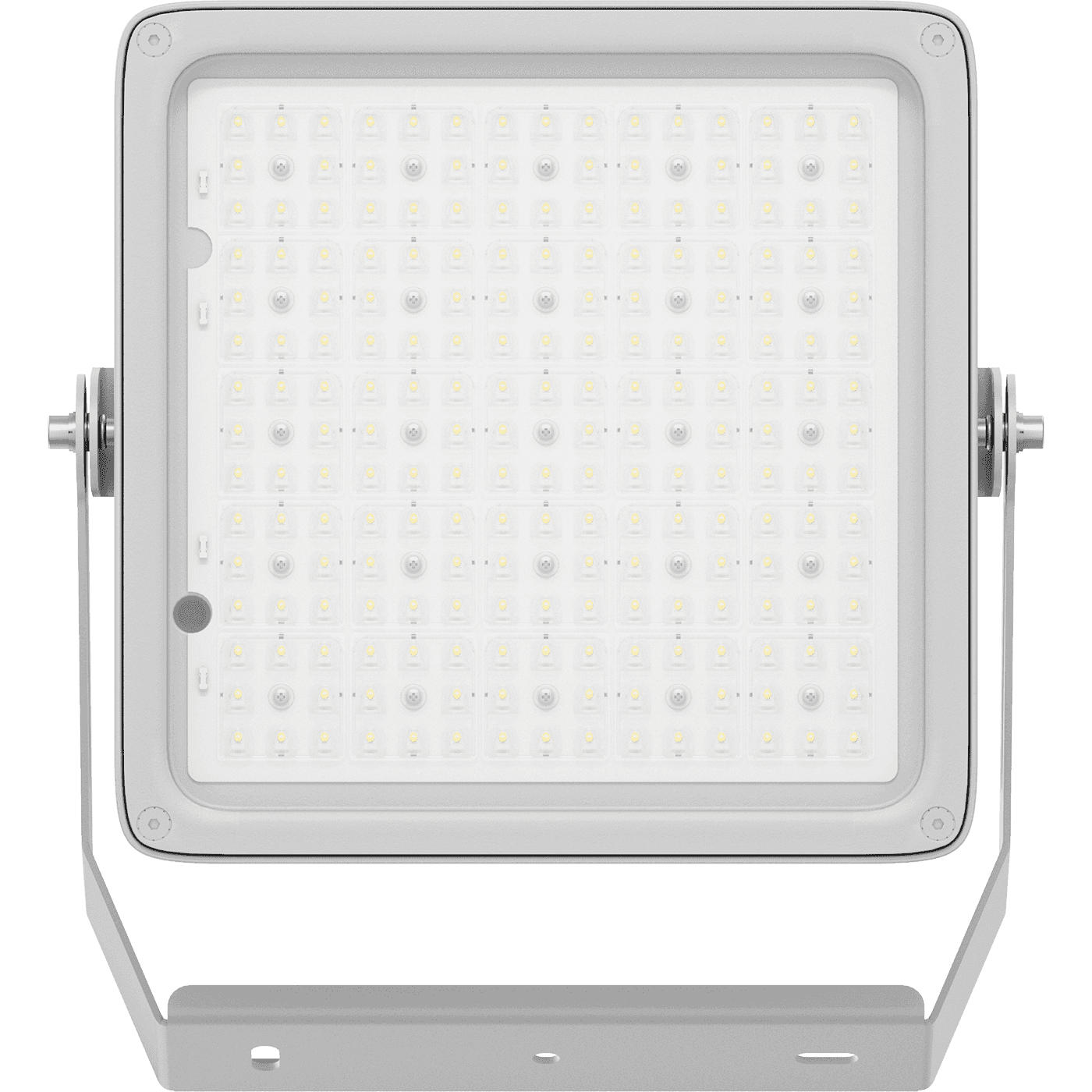

ATHLET 70W D30 740 WH SBL

ATHLET 70W D30 740 WH SBL
76 Wluminaire power
12000 lmlight flow
158 lm/Wenergy efficiency
code1875002200
beam angleD30
color temperature4000 K
weight7.7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
158 lm/W
color rendition index (CRI)
>70
light flow
12000 lm
flickering factor
<1%

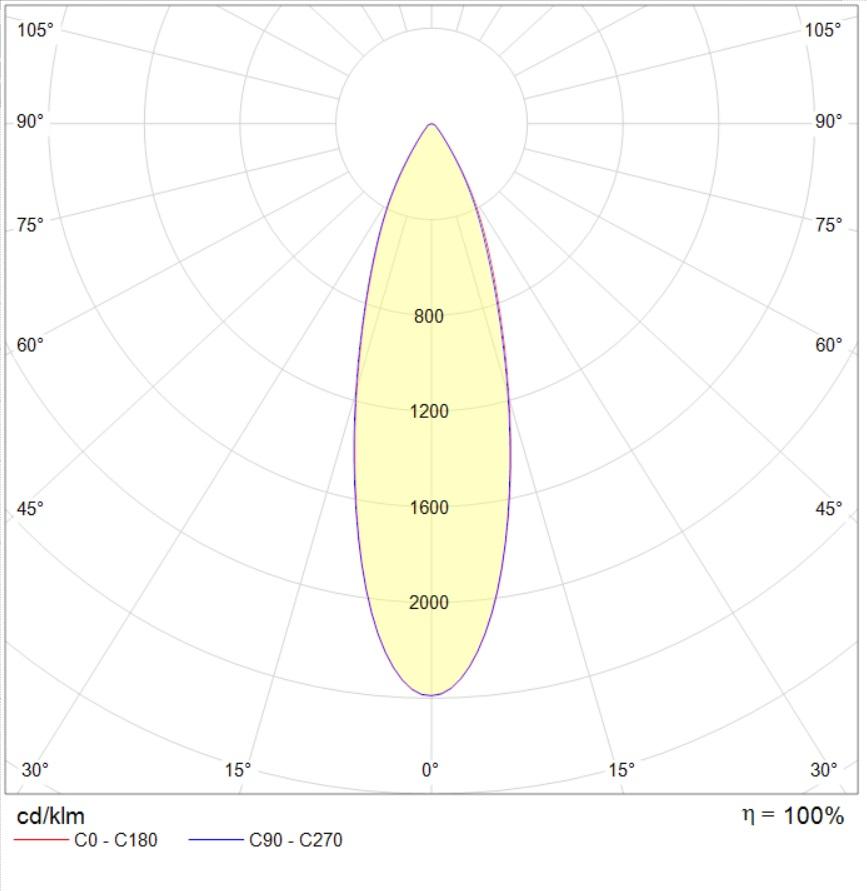

beam angle
D30
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
158 lm/W
color rendition index (CRI)
>70
light flow
12000 lm
flickering factor
<1%
beam angle
D30
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
76 W
electric shock protection
I
starting current pulse time
200 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
75 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
128-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,96
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
width
410 mm
height
215 mm
installation length
220 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
385 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
7.7 kg
common
code
1875002200
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +60 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
