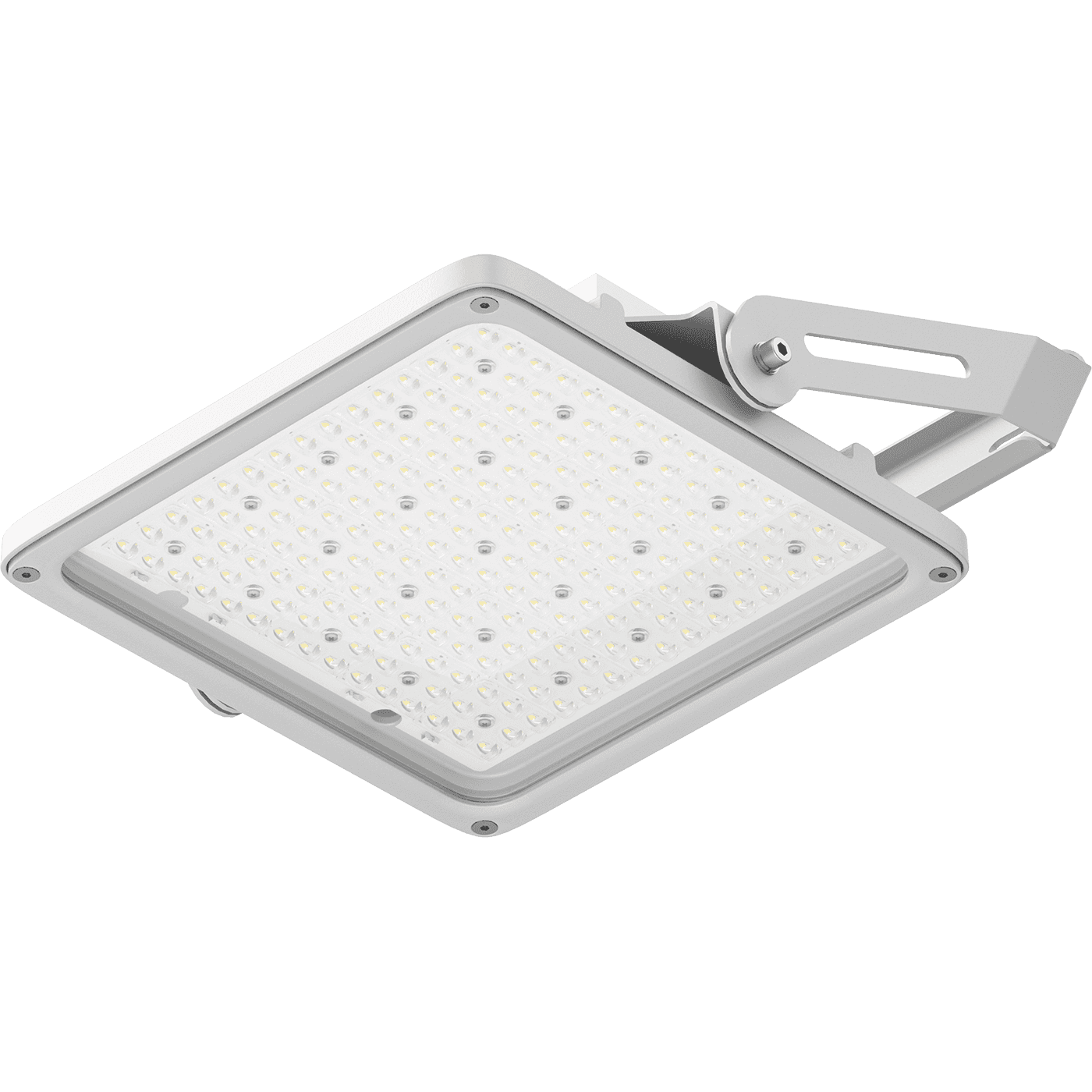

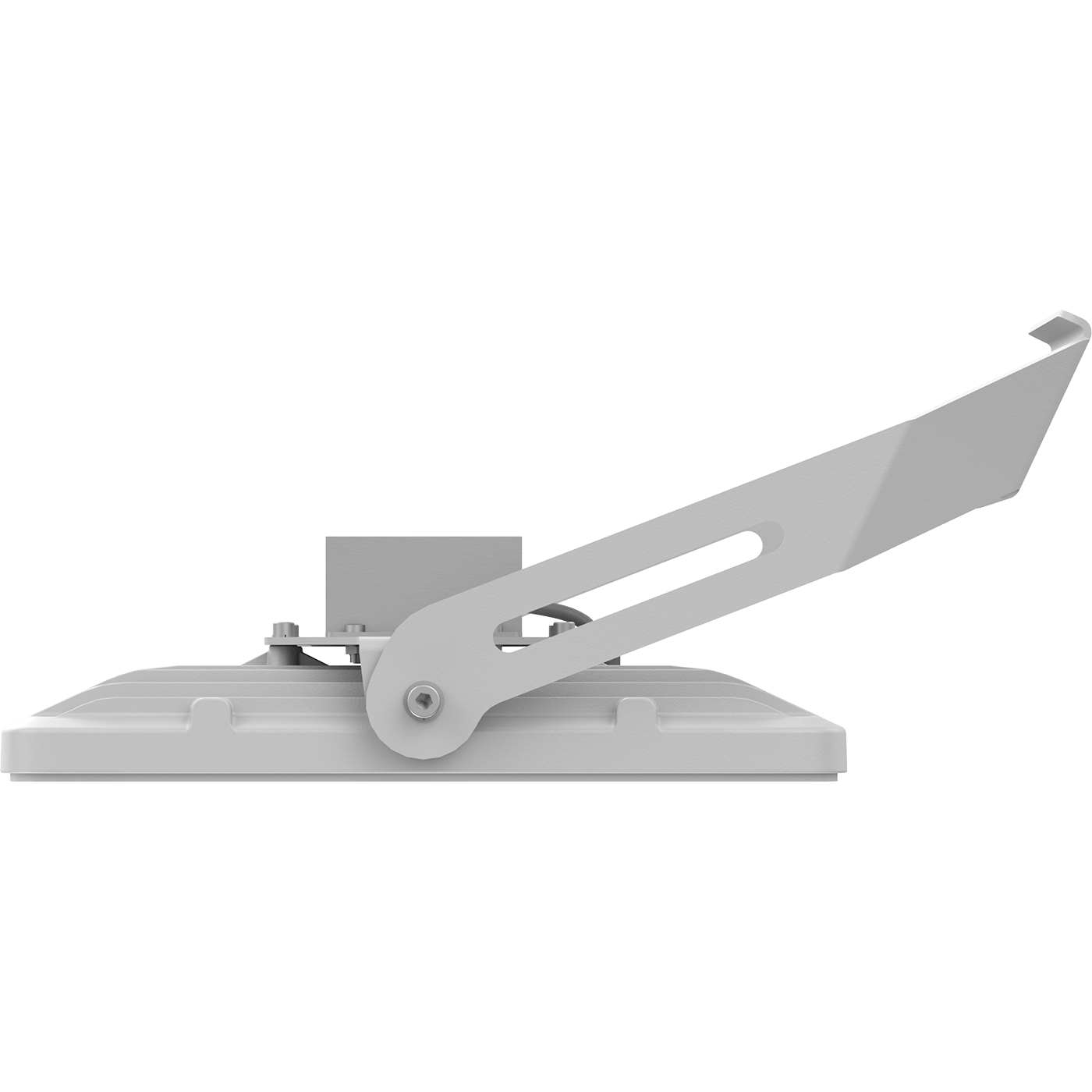

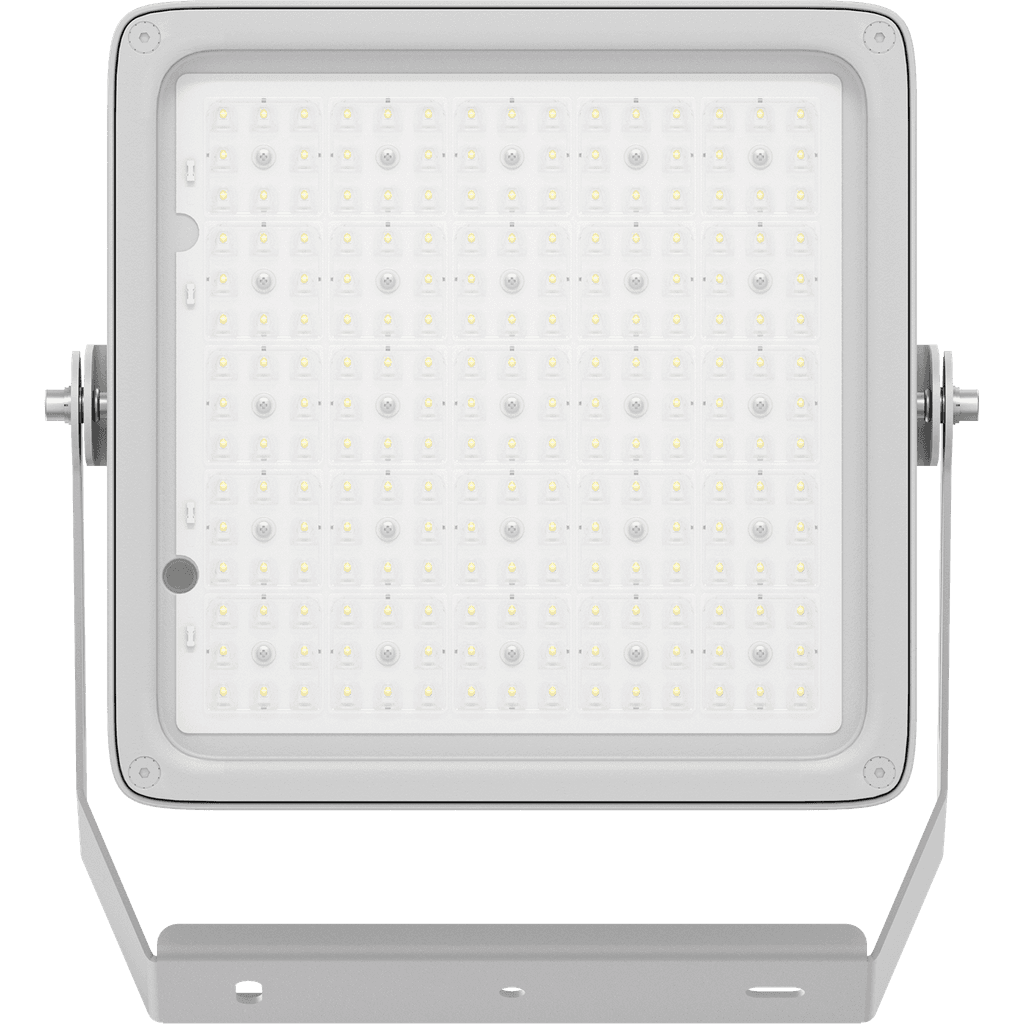

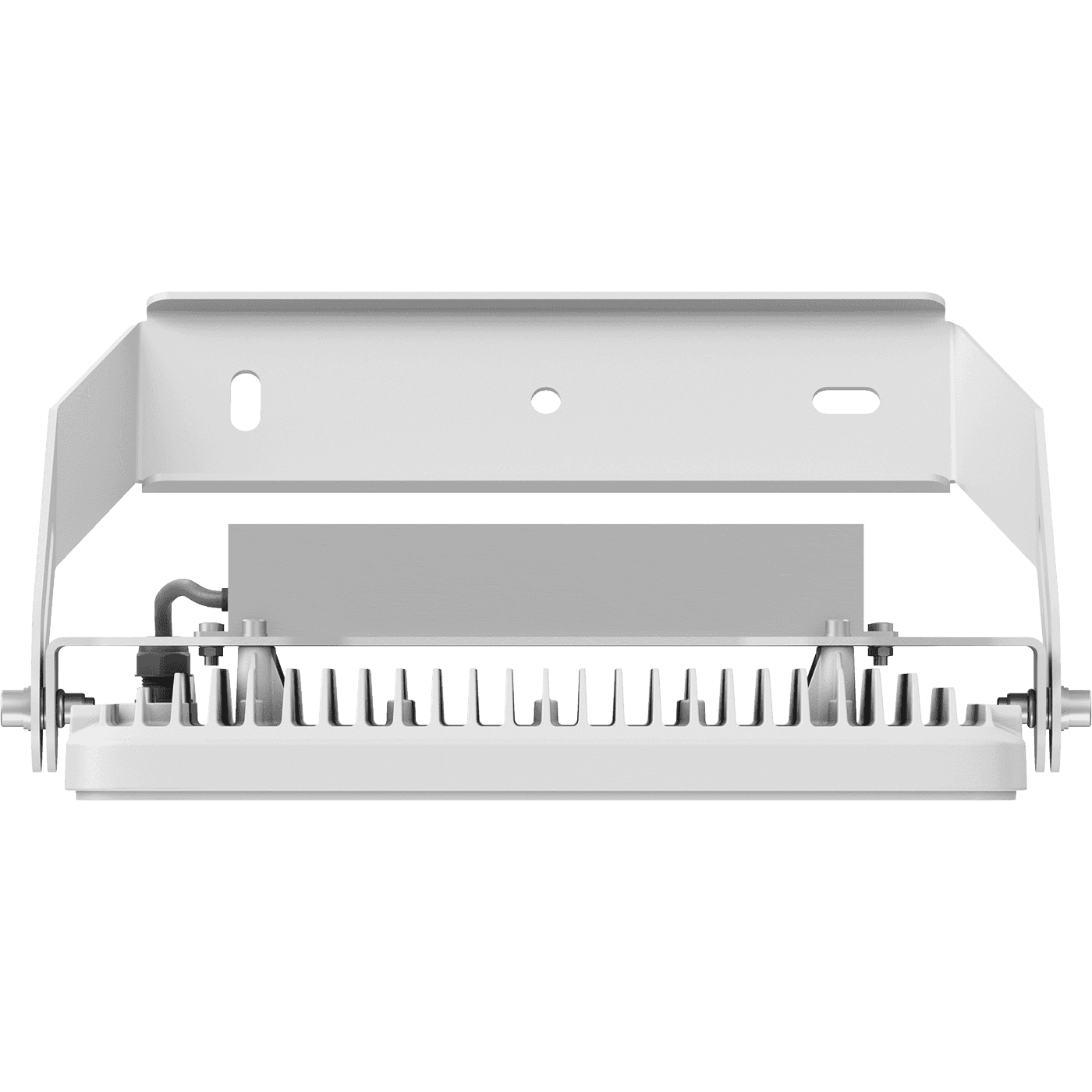

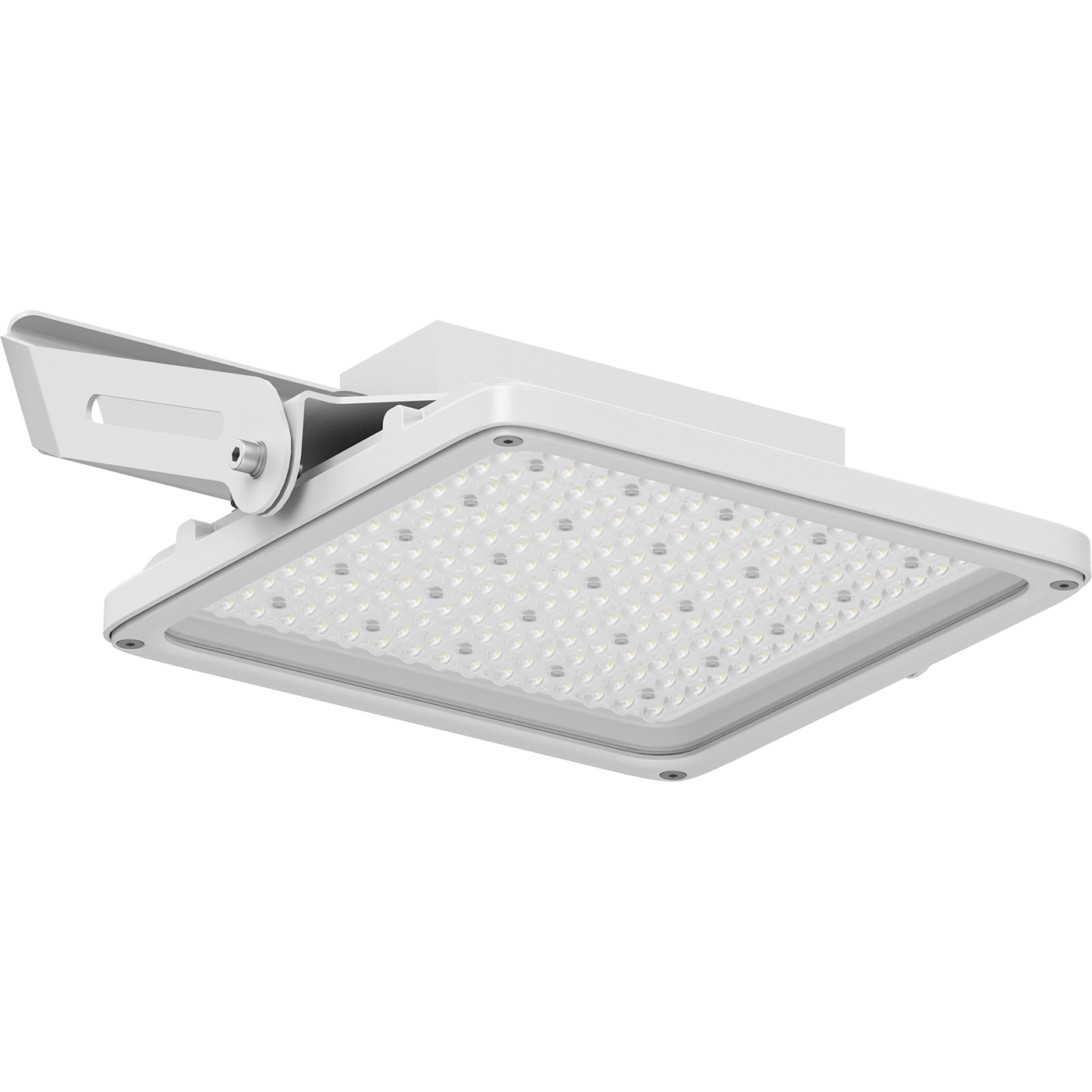

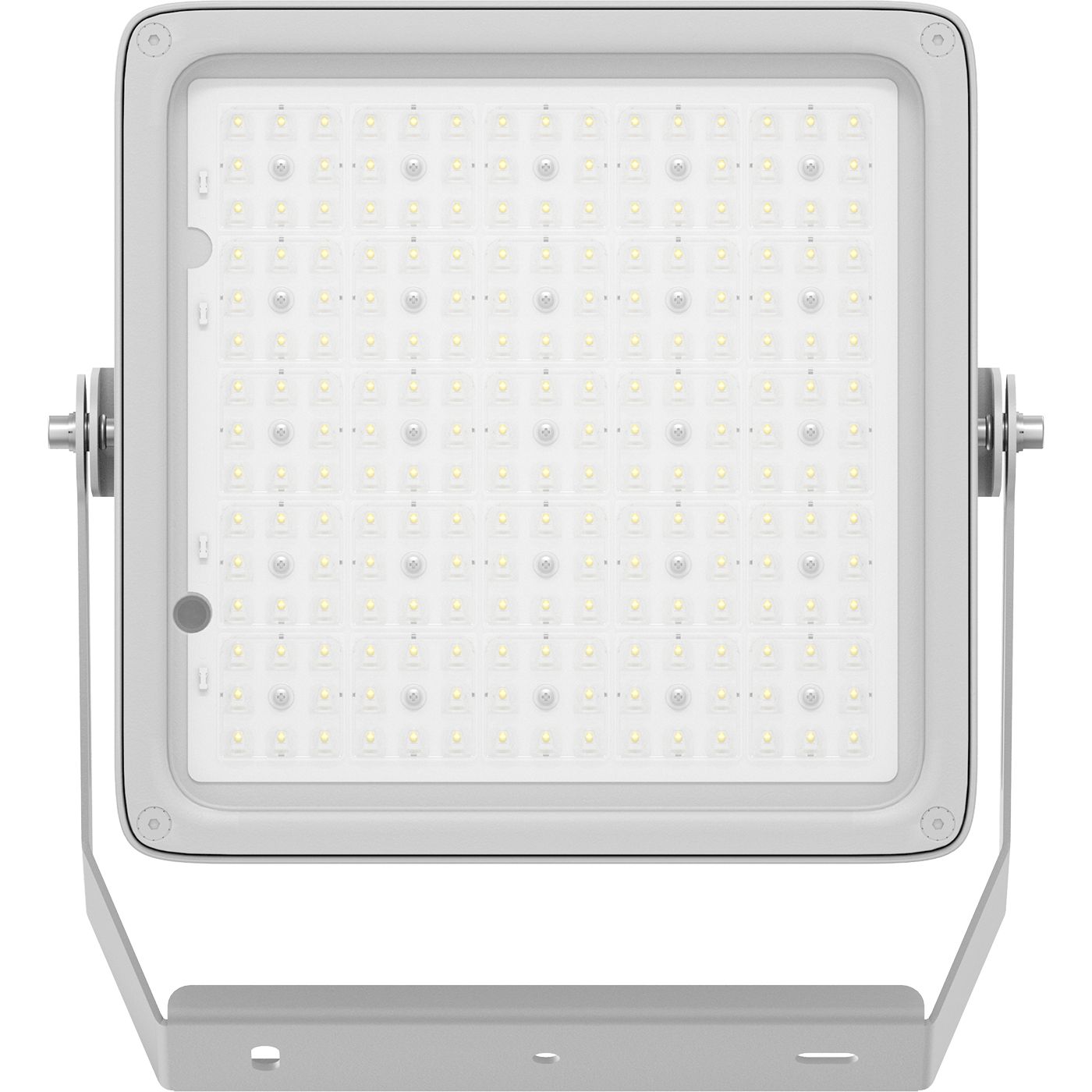

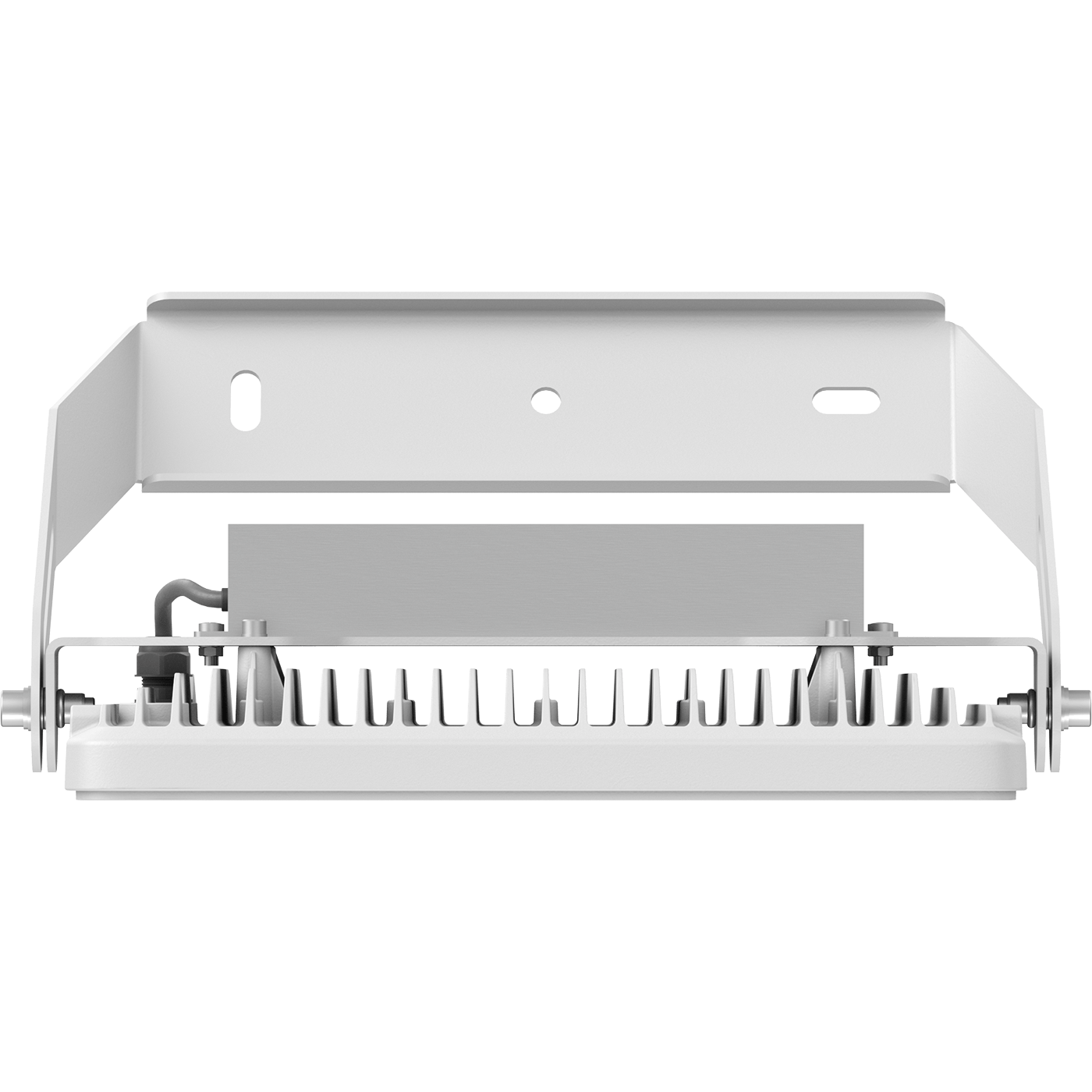

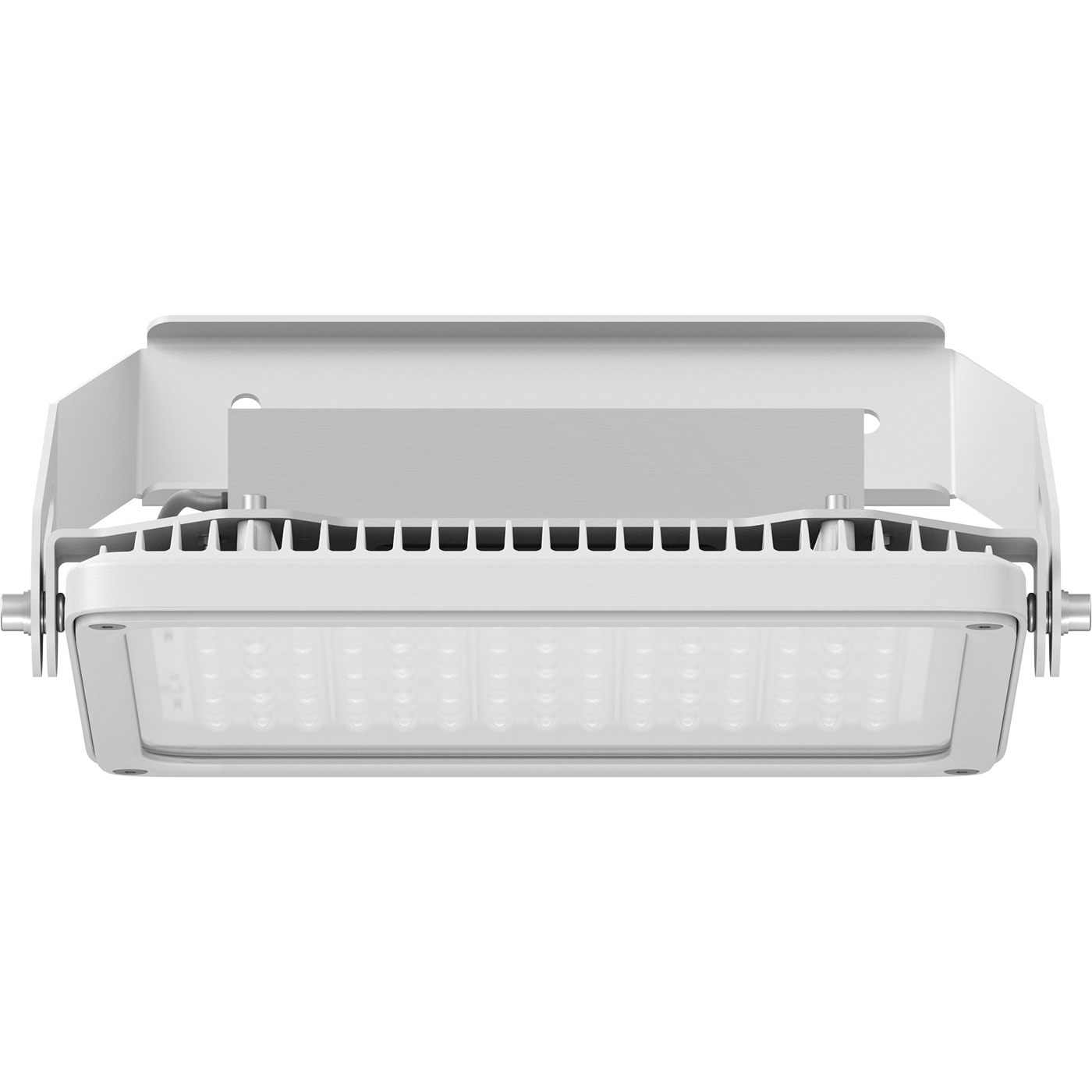

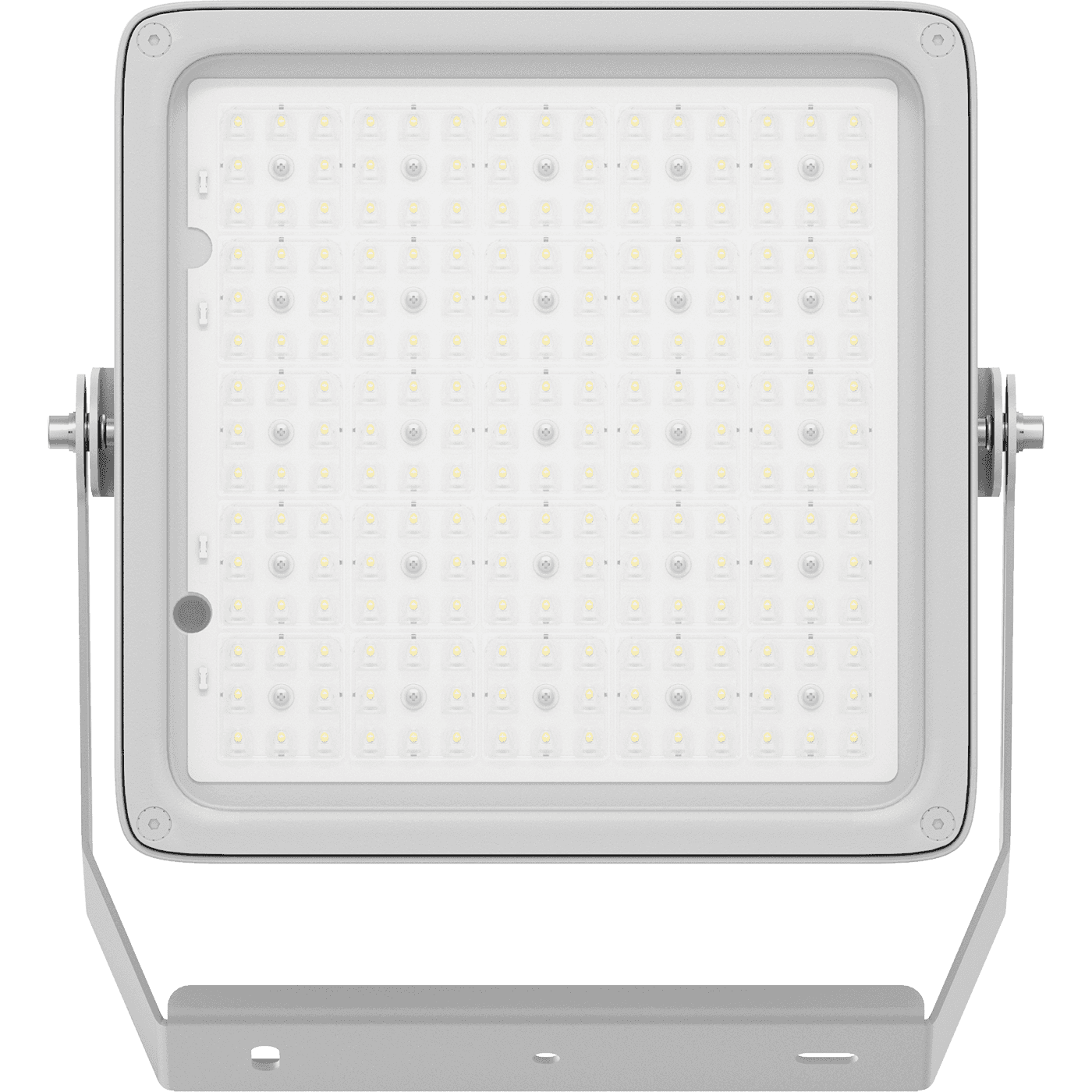

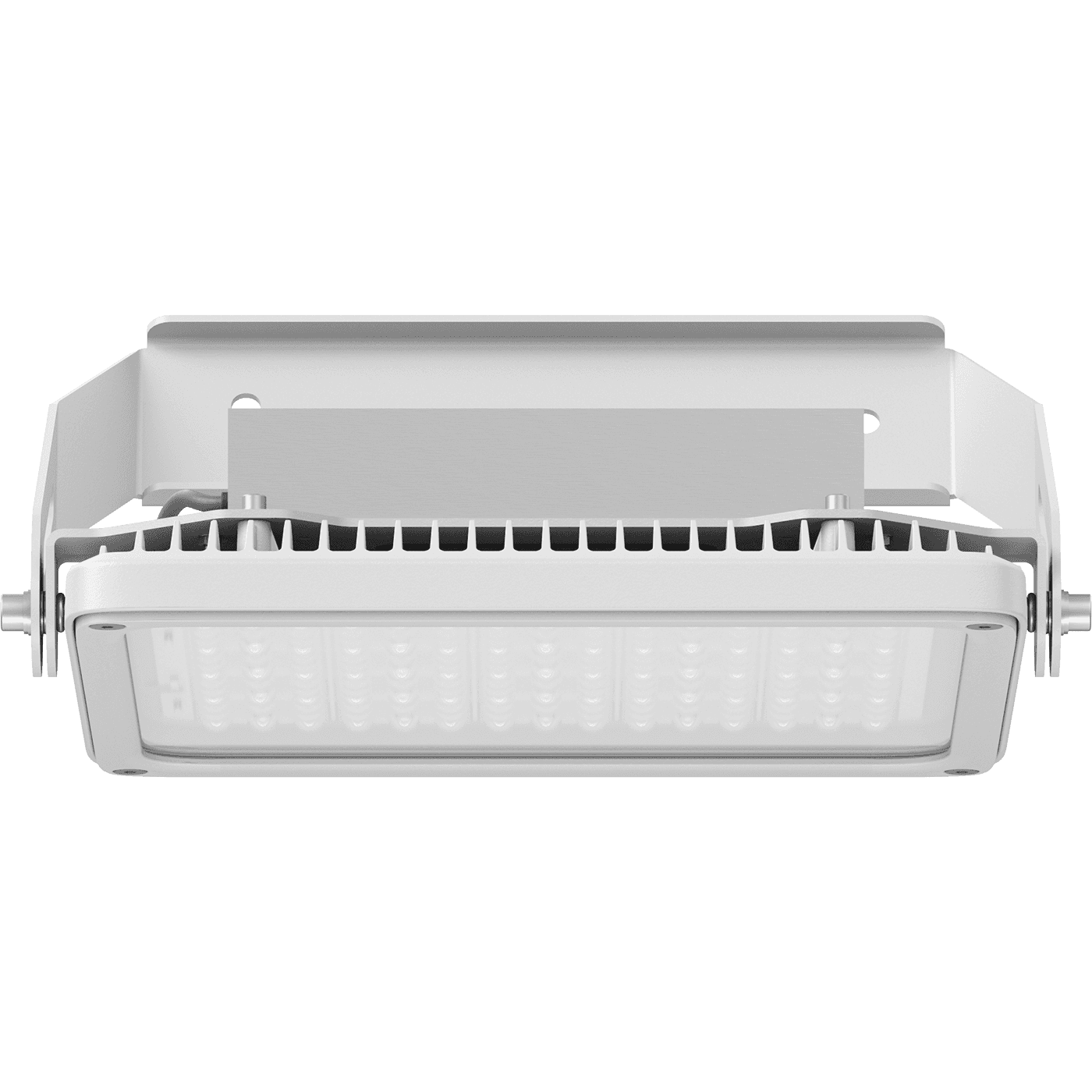

ATHLET 70W A30 850 WH SBL
ATHLET 70W A30 850 WH SBL
74 Wluminaire power
11200 lmlight flow
151 lm/Wenergy efficiency
code1875002390
beam angleA30
color temperature5000
weight8 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP66housing color
Белыйlength, mm
385 mmwidth, mm
410 mmheight, mm
215 mmweight
8 kgfire safety class
П-I,II,IIa,ІІІclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK07/2 Джinstallation length, mm
220 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP66
housing color
Белый
length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
weight
8 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
220 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
starting current
50 A
starting current pulse time, µs
300 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
74 W
power factor
> 0,96
supply voltage
230 V
common
code
1875002390
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
100 000 h
illuminating
color rendition index (CRI)
>80
light flow
11200 lm
energy efficiency
151 lm/W
flickering factor
<2%
beam angle
A30
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
photometric files
сертификаты
media

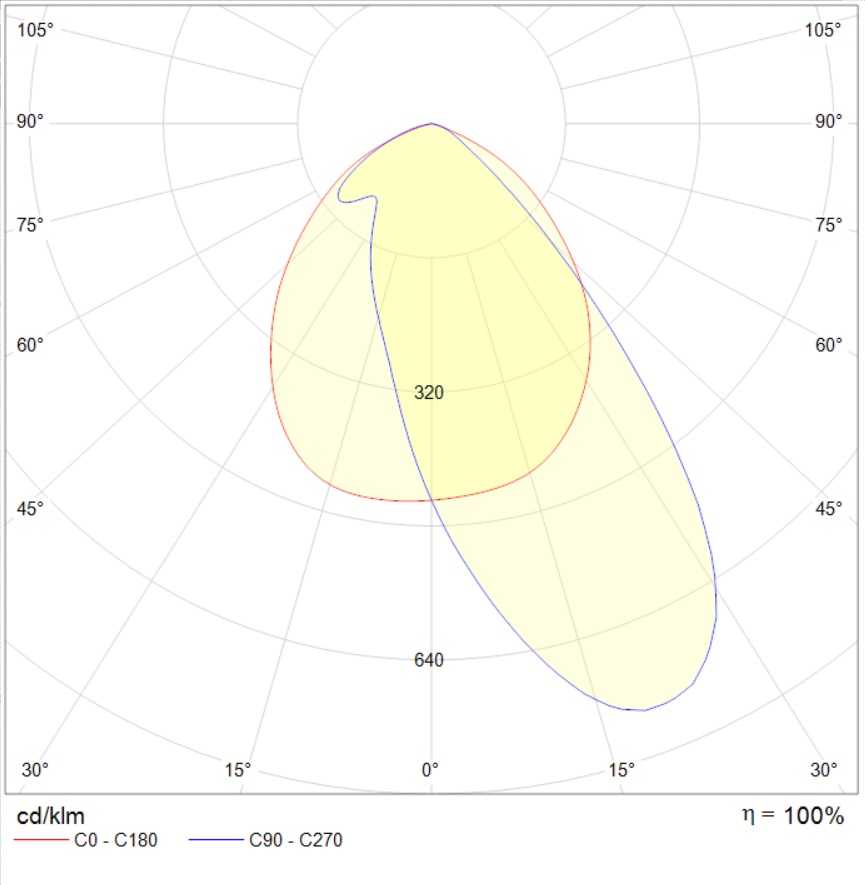

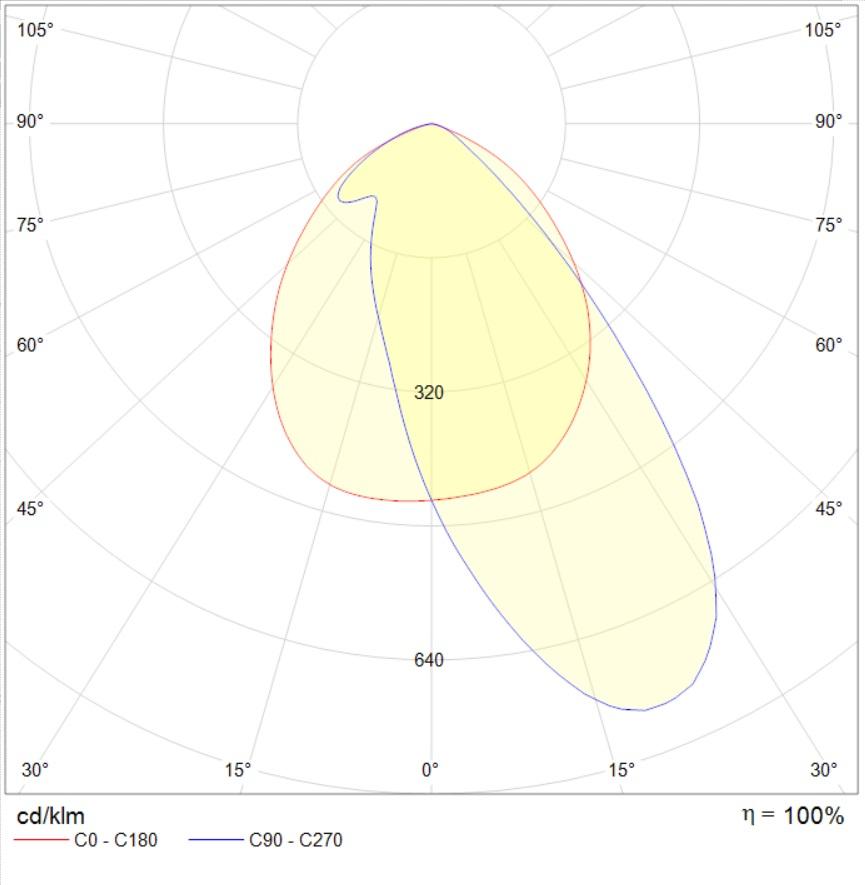

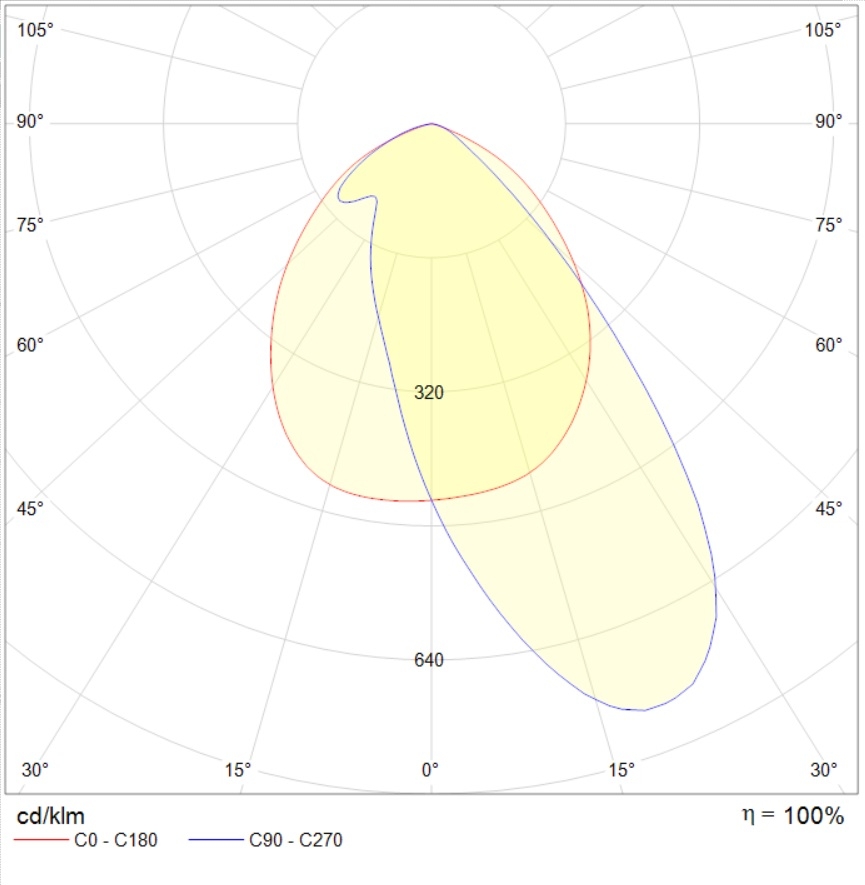

photometric files
