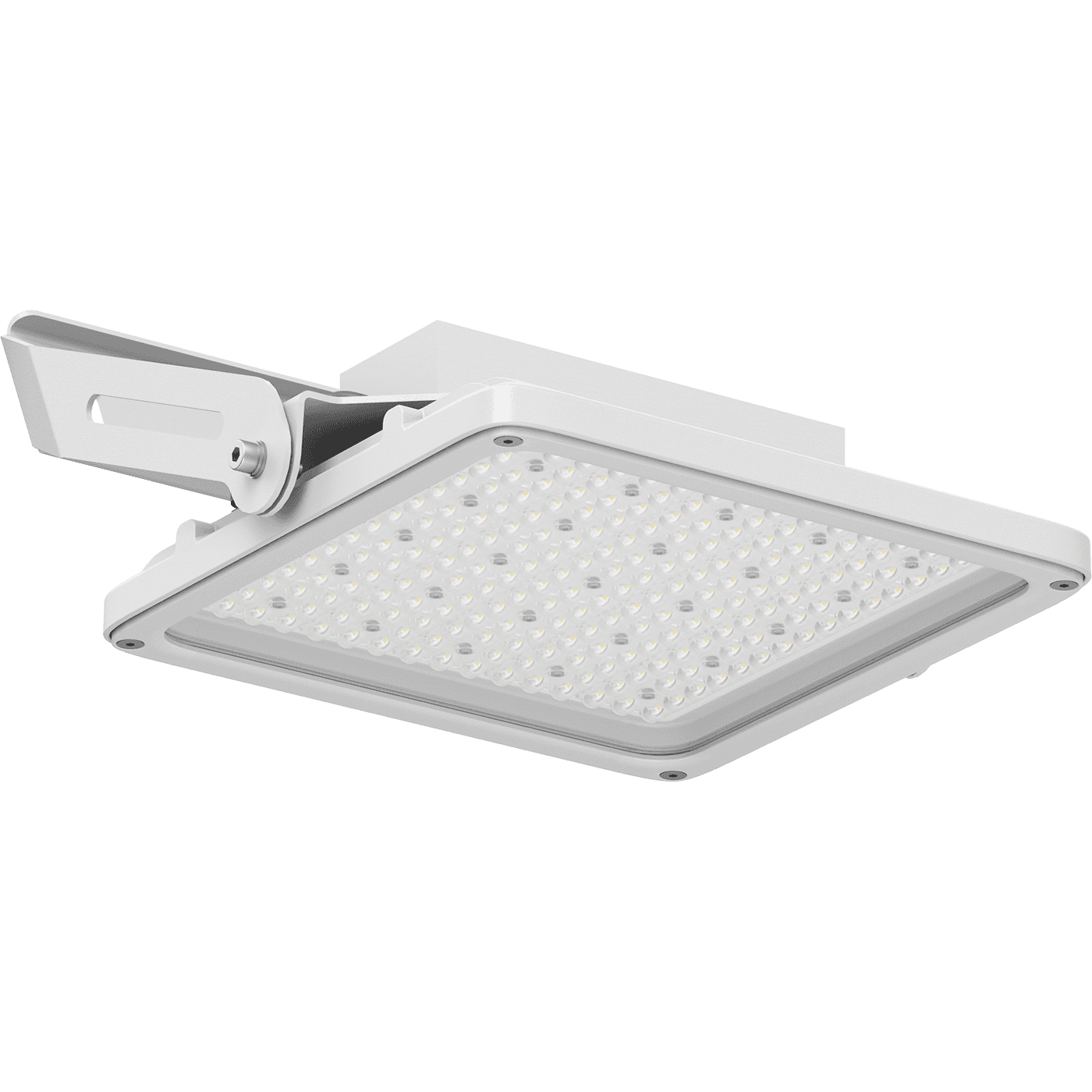

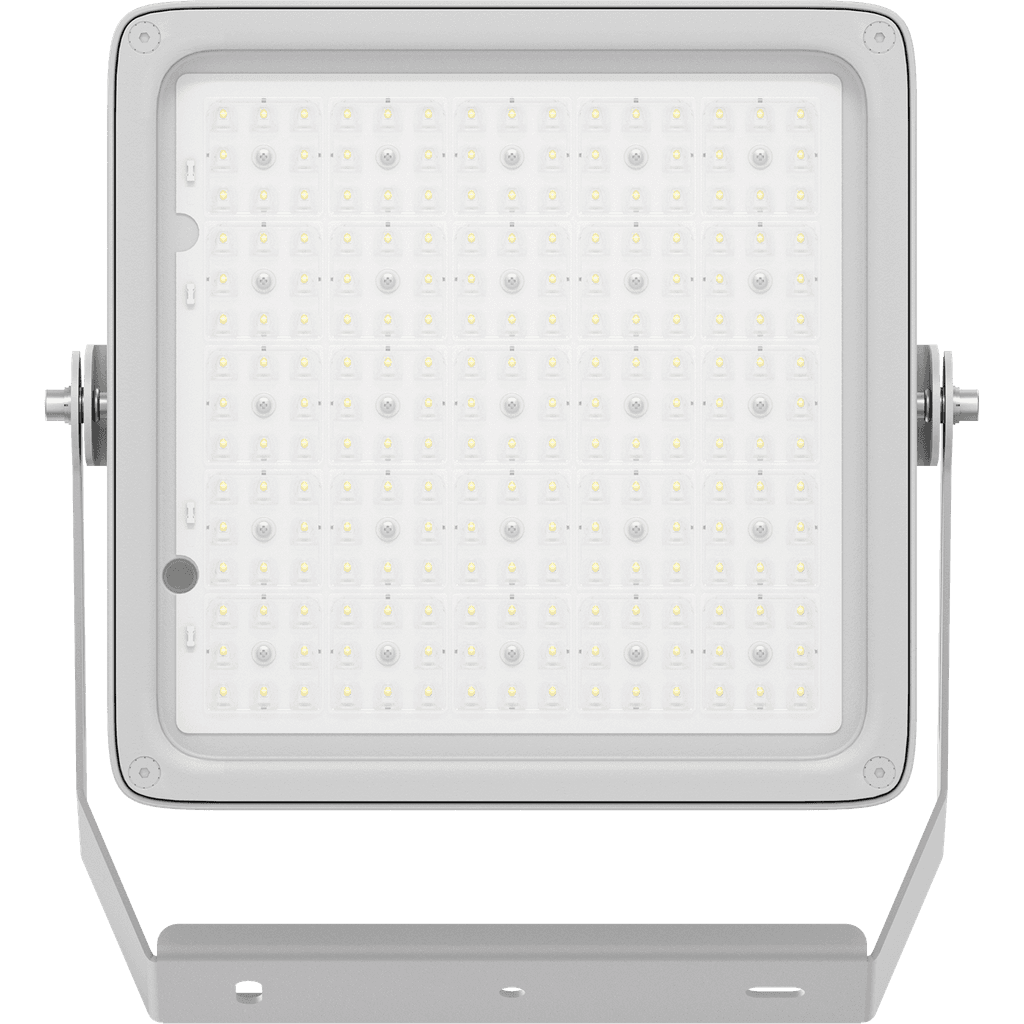

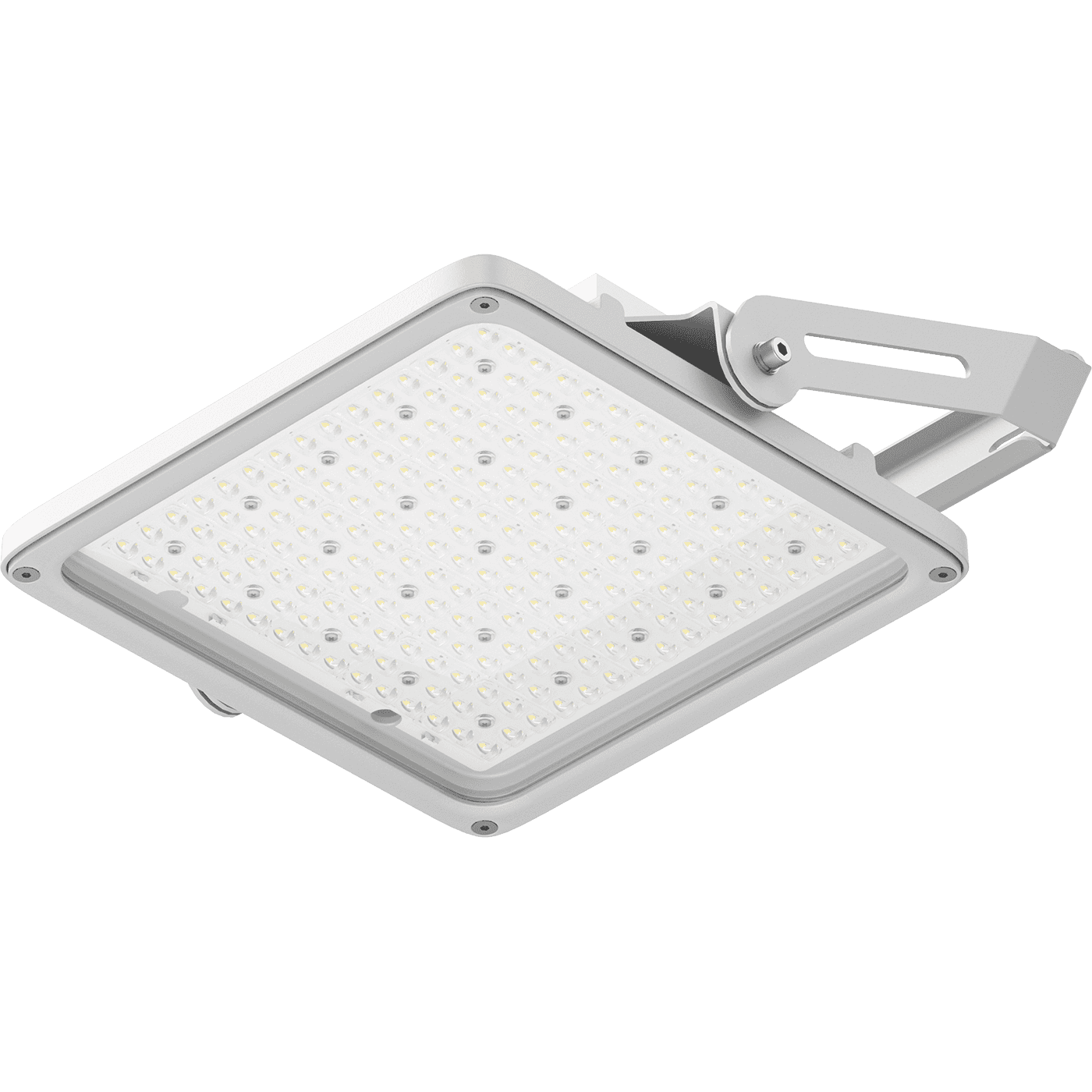

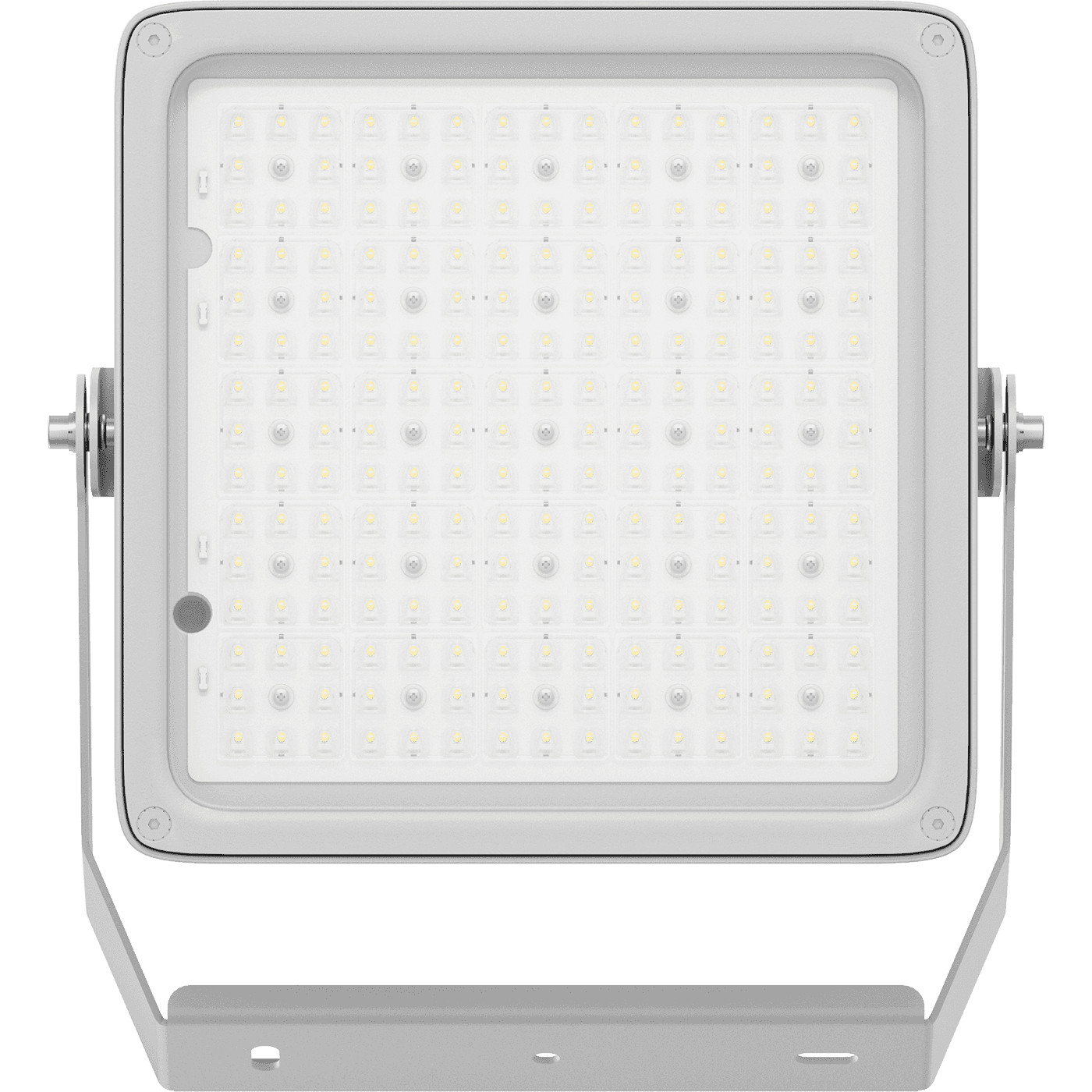

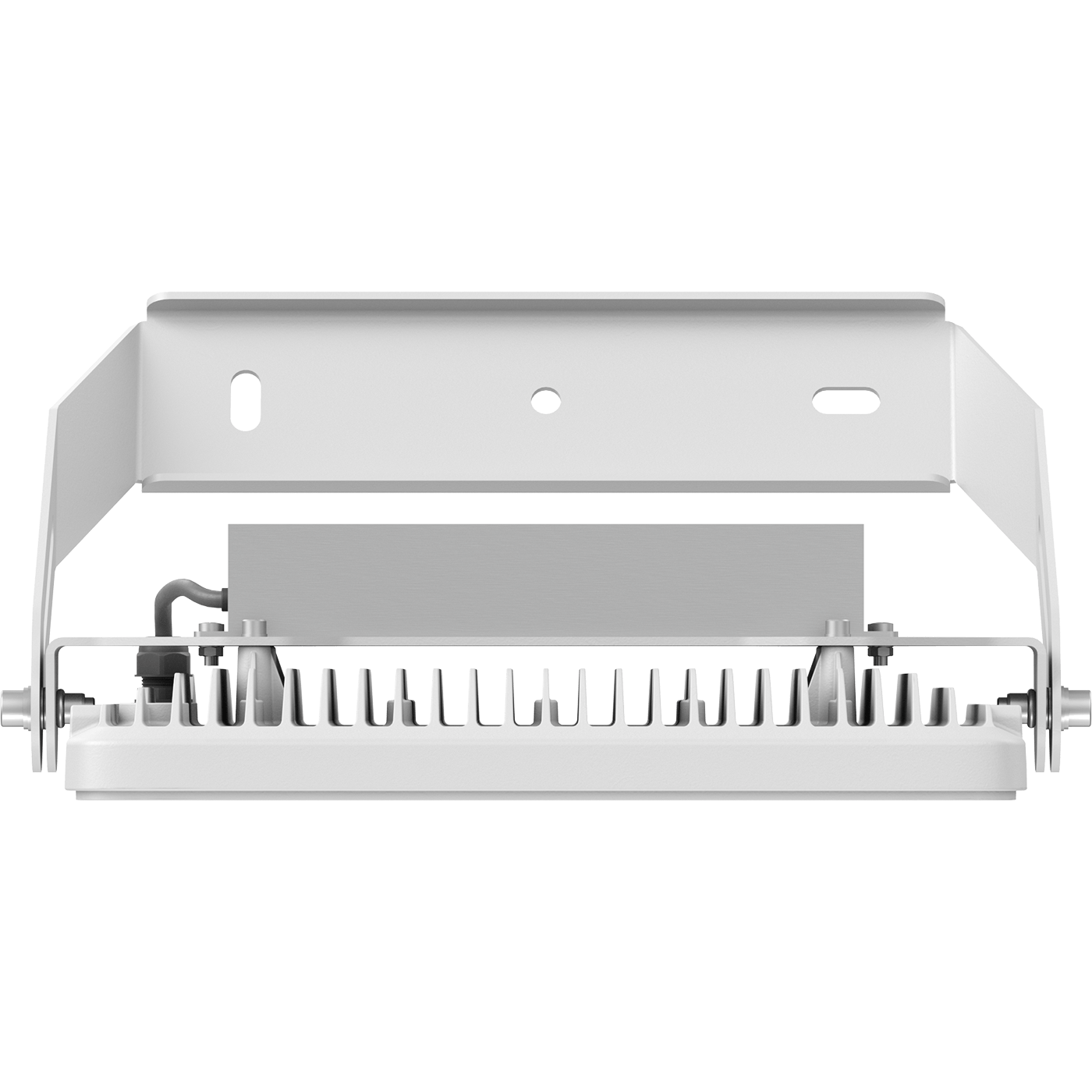

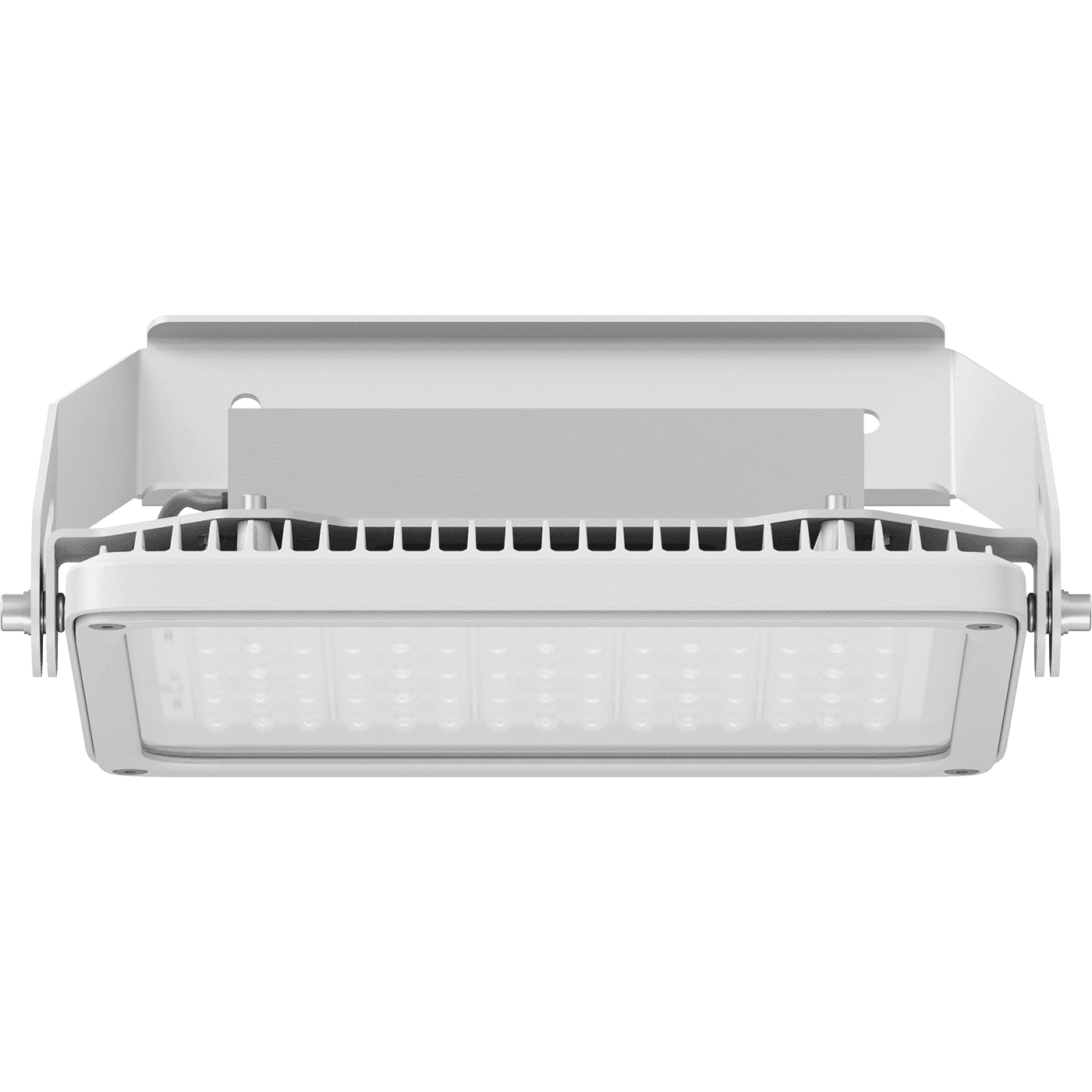

ATHLET 70W A30 750 WH SBL

ATHLET 70W A30 750 WH SBL
76 Wluminaire power
12000 lmlight flow
158 lm/Wenergy efficiency
code1875002250
beam angleA30
color temperature5000 K
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
158 lm/W
color rendition index (CRI)
>70
light flow
12000 lm
flickering factor
<2%

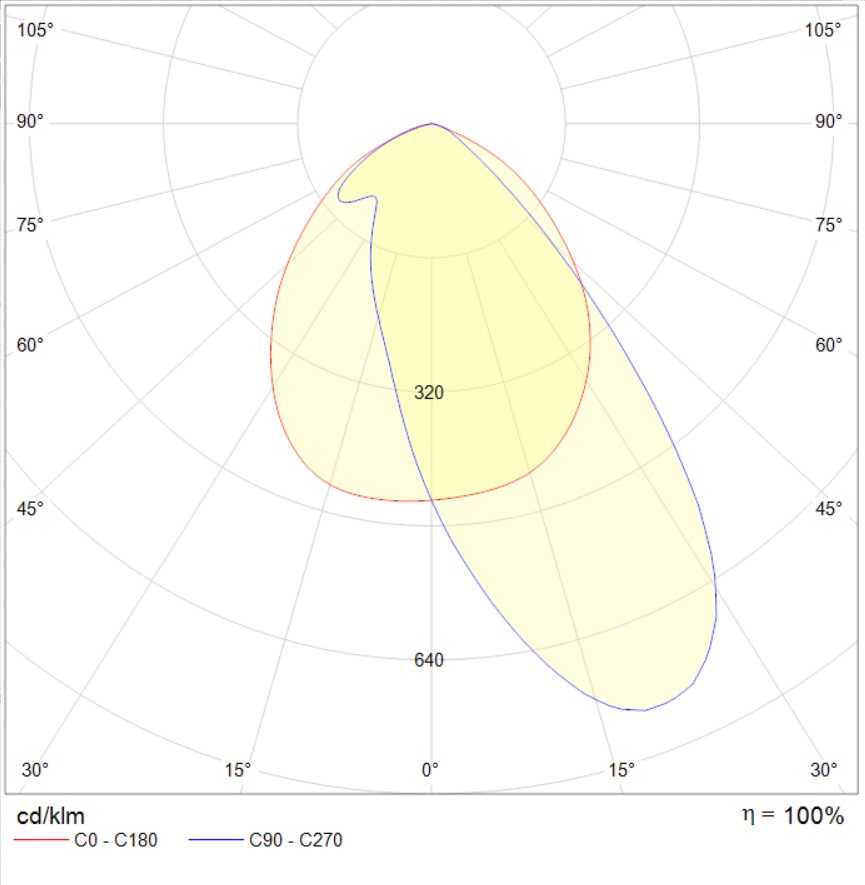

beam angle
A30
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
158 lm/W
color rendition index (CRI)
>70
light flow
12000 lm
flickering factor
<2%
beam angle
A30
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
luminaire power
76 W
electric shock protection
I
starting current pulse time
300 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
142-431 V
supply voltage, alternating current
100-305 V
power factor
> 0,96
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
width
410 mm
height
215 mm
installation length
220 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
385 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
8 kg
common
code
1875002250
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +60 C
service life
100 000 h
ETIM class
Прожектор / Светильник направленного света
