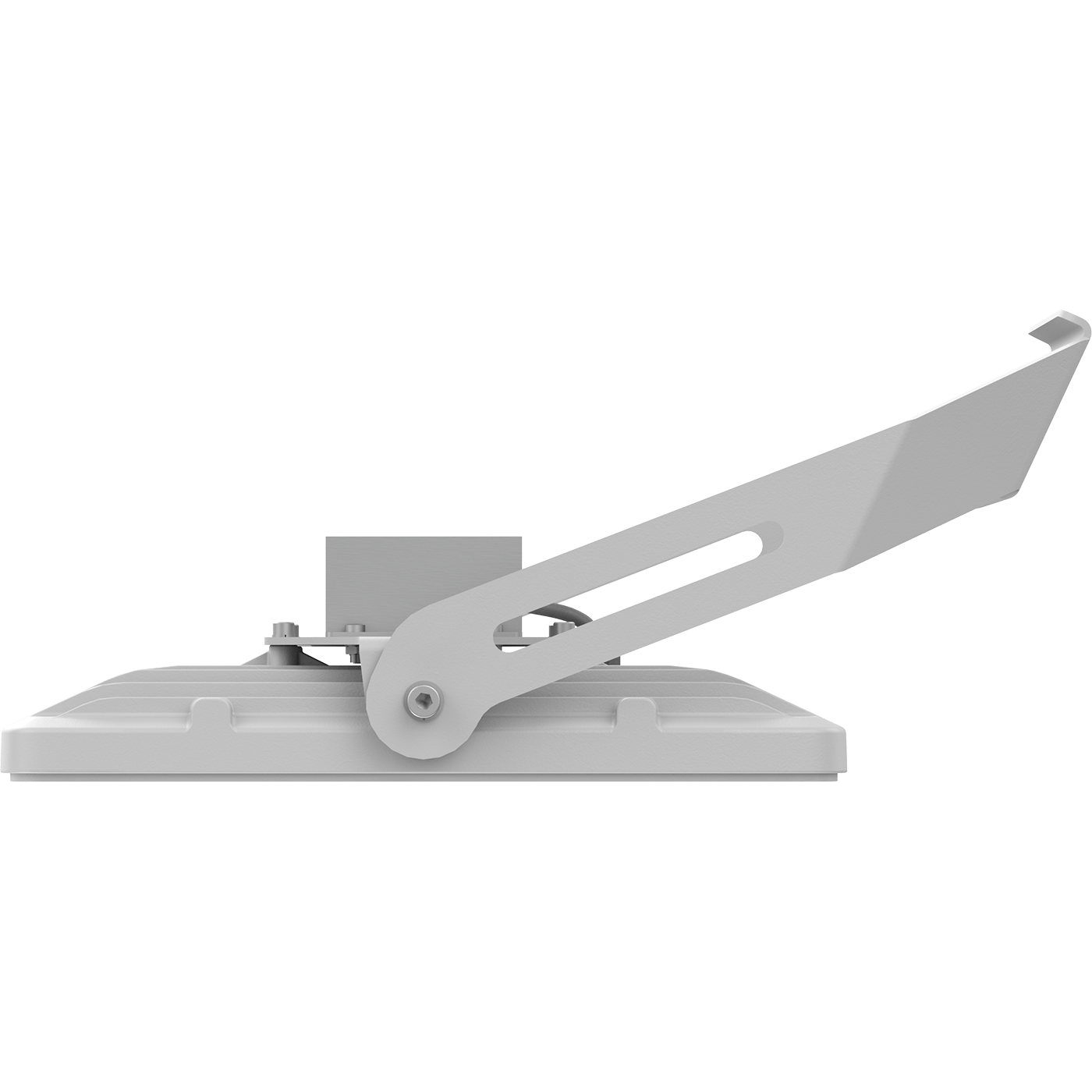

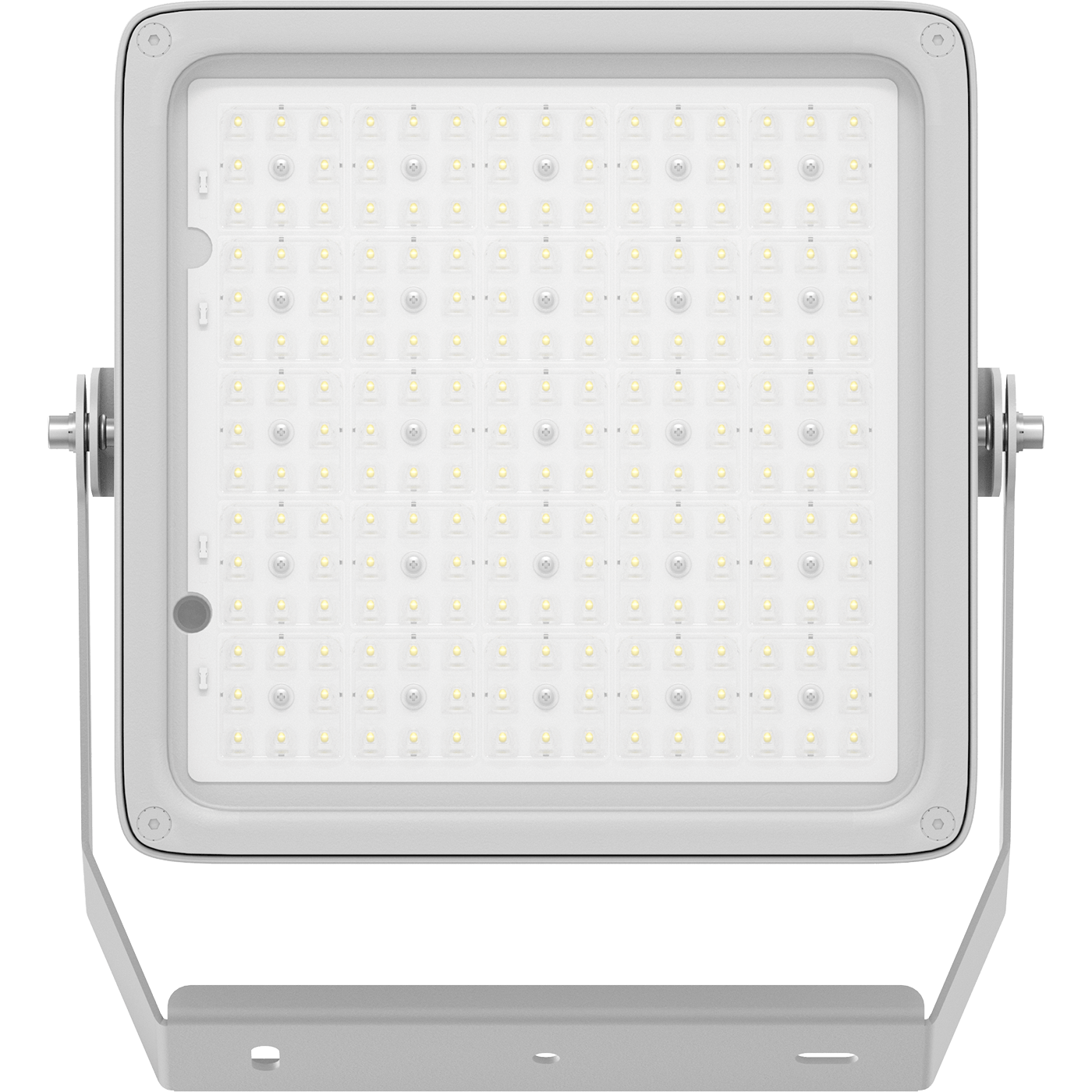

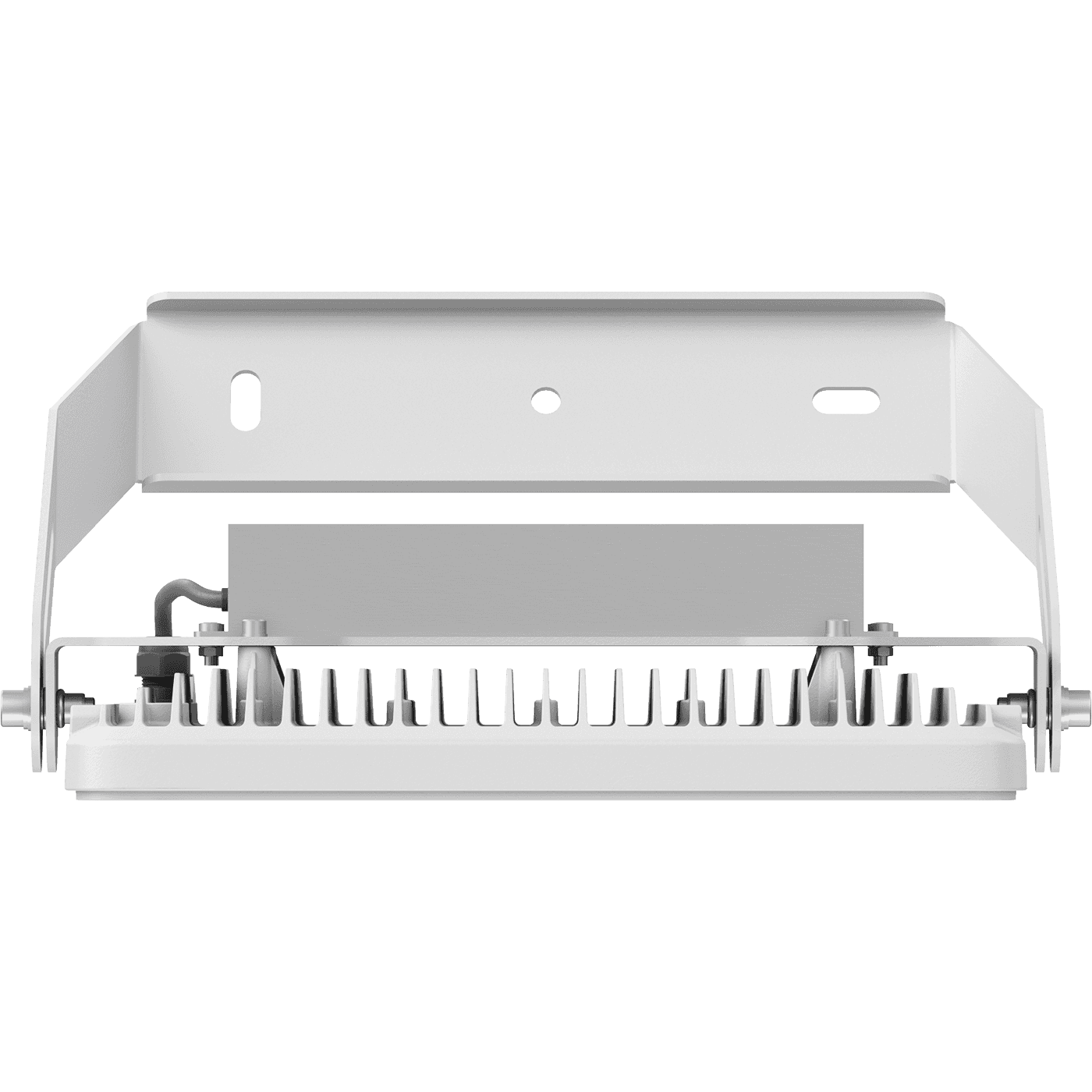

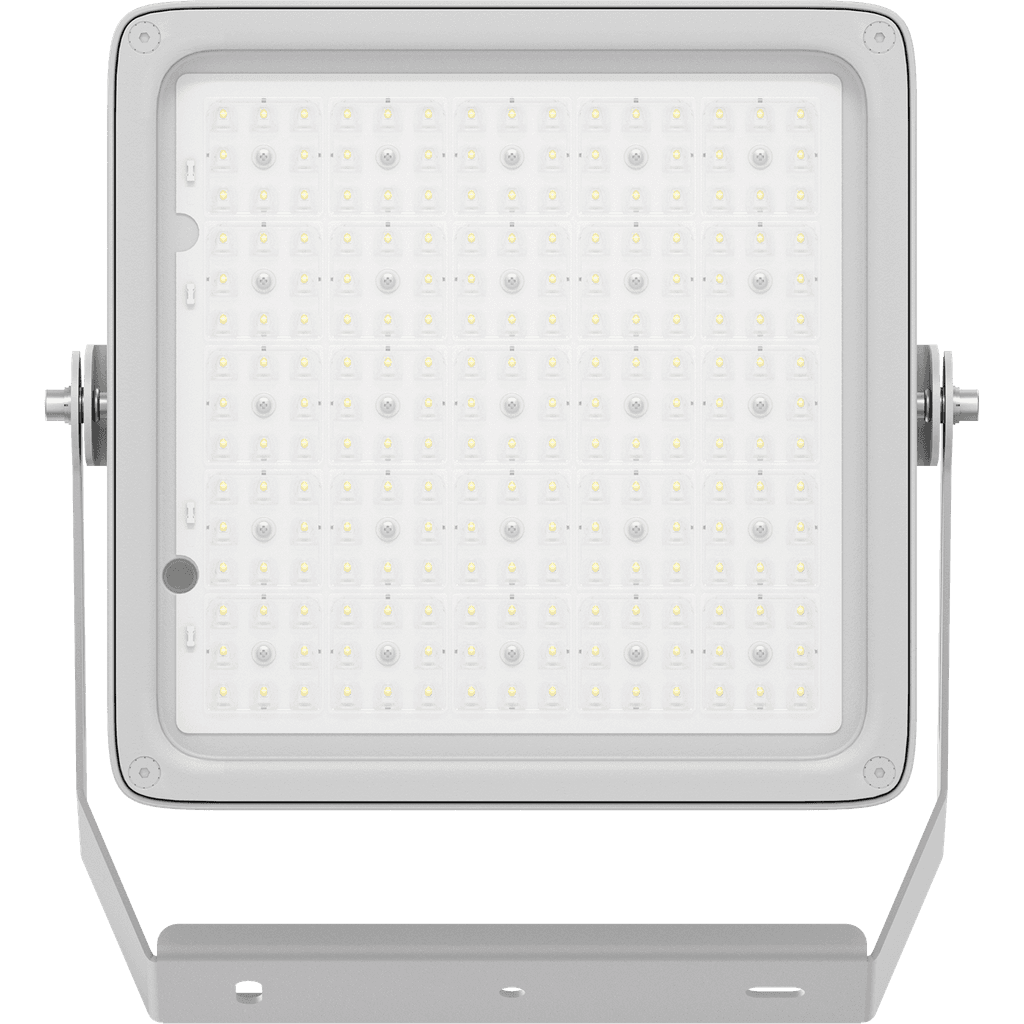

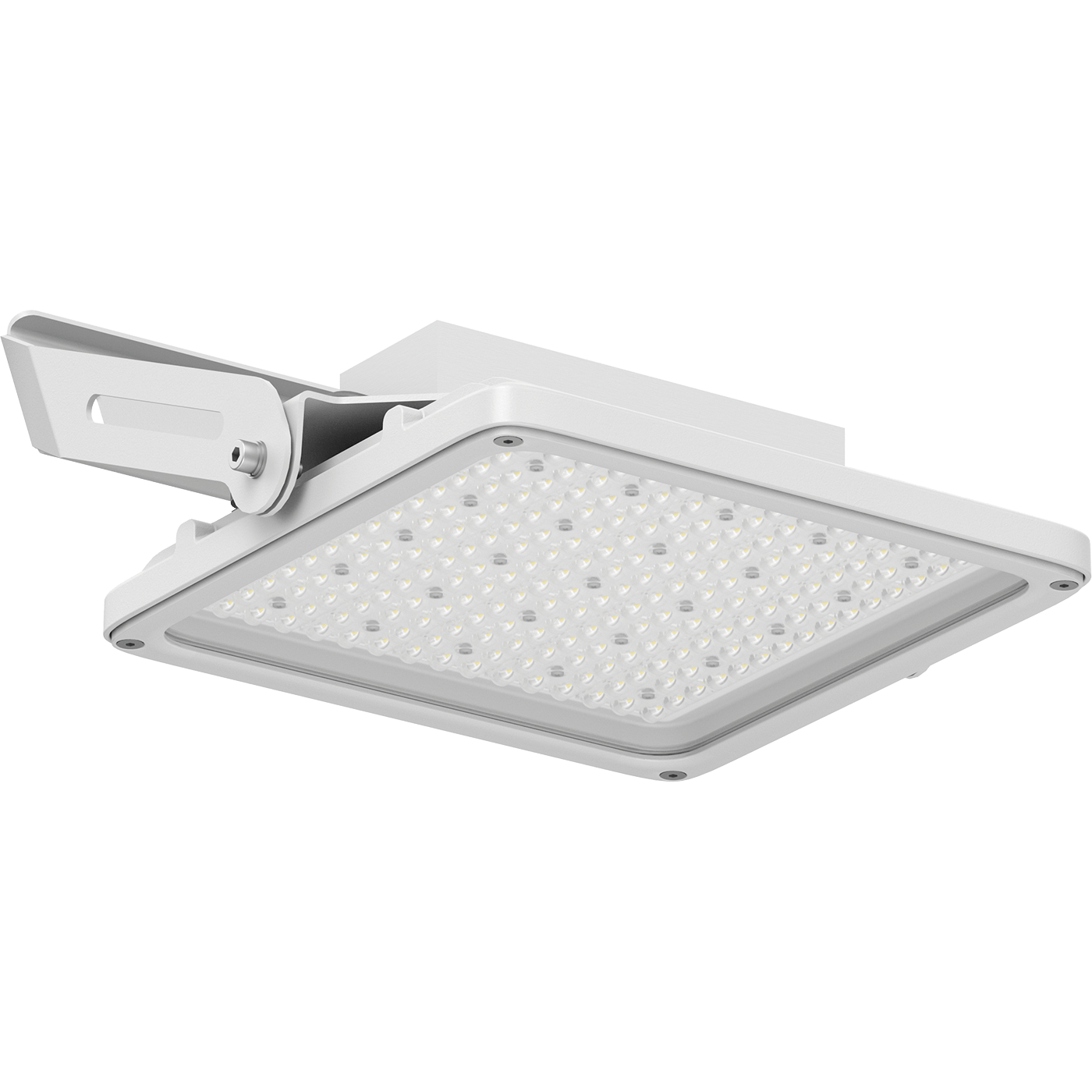

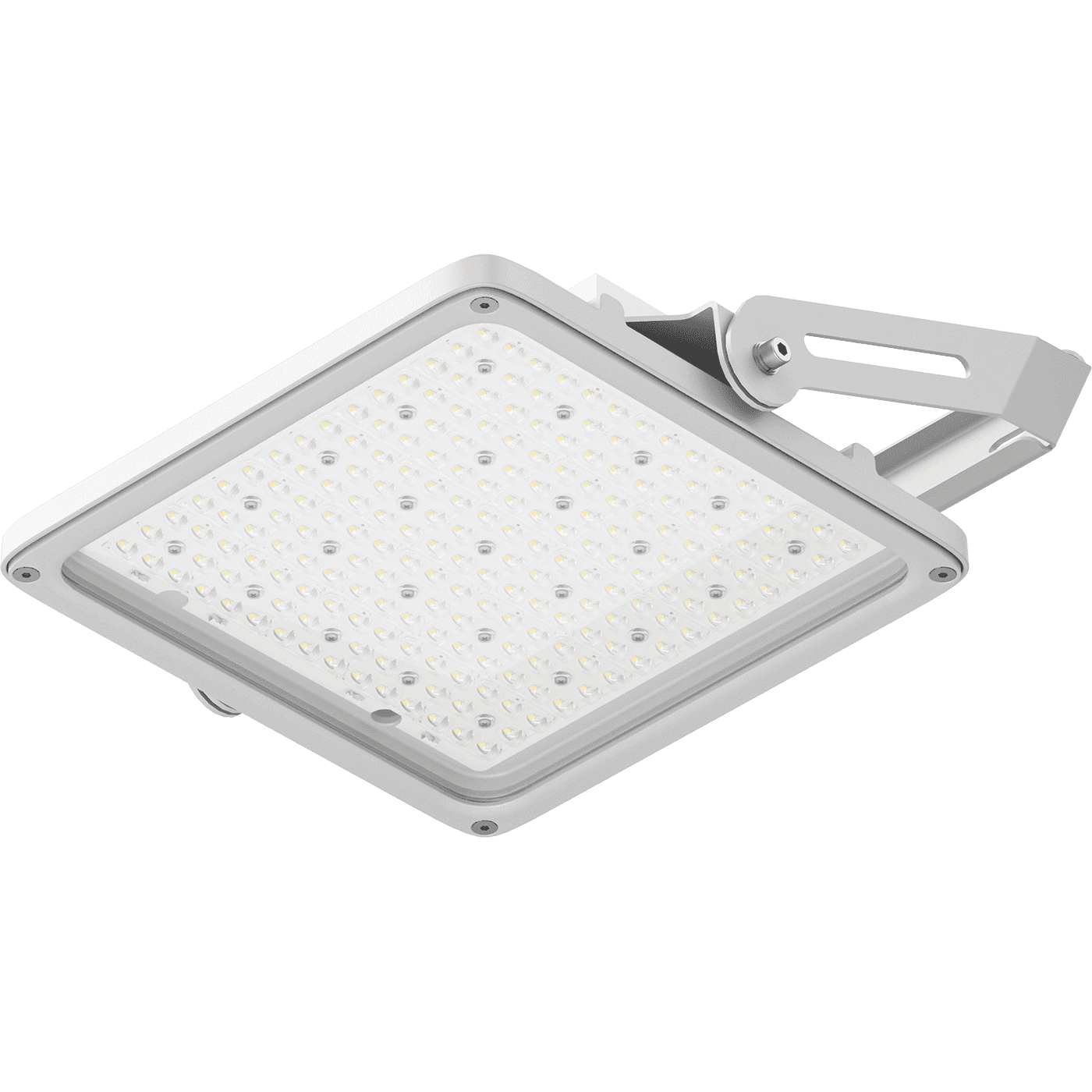

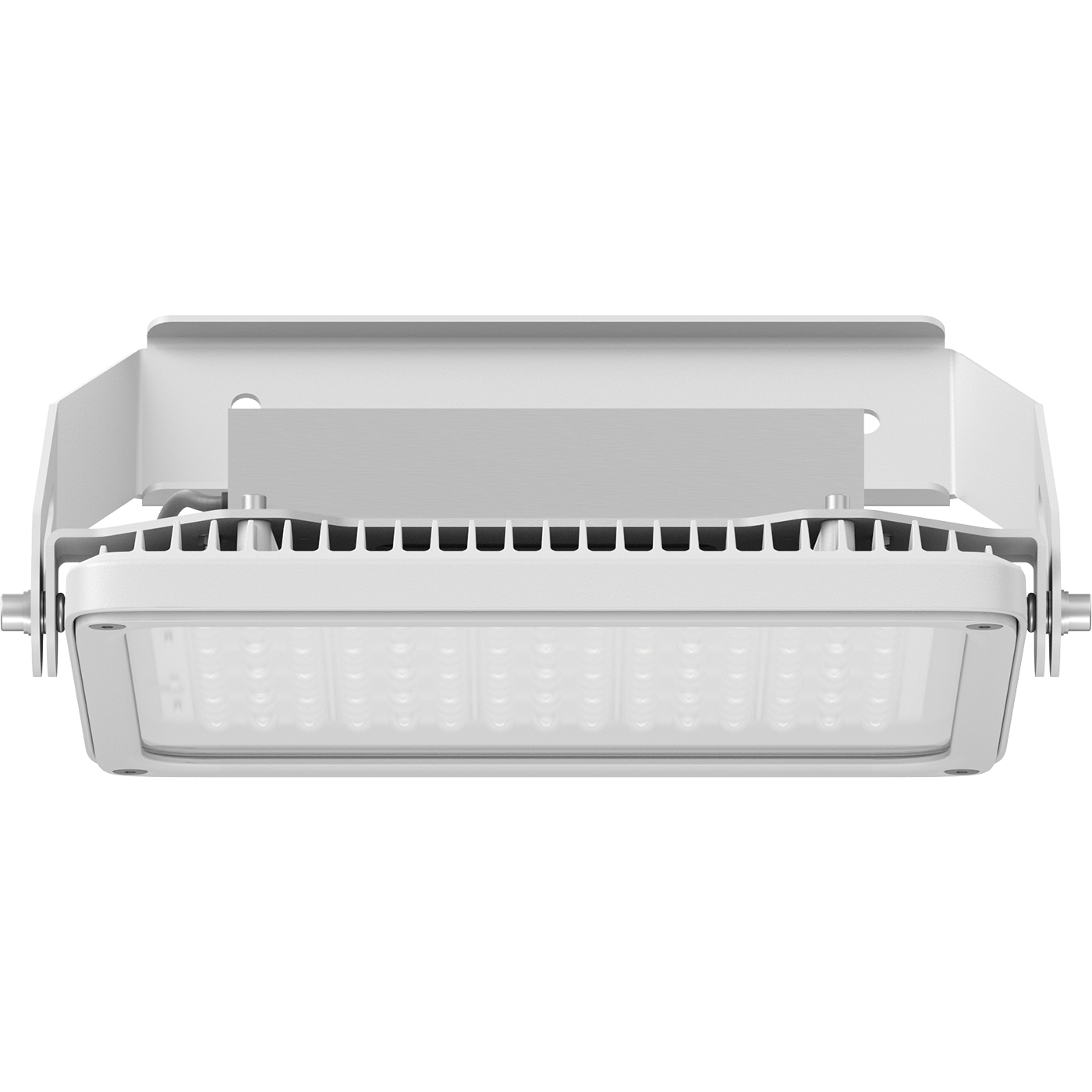

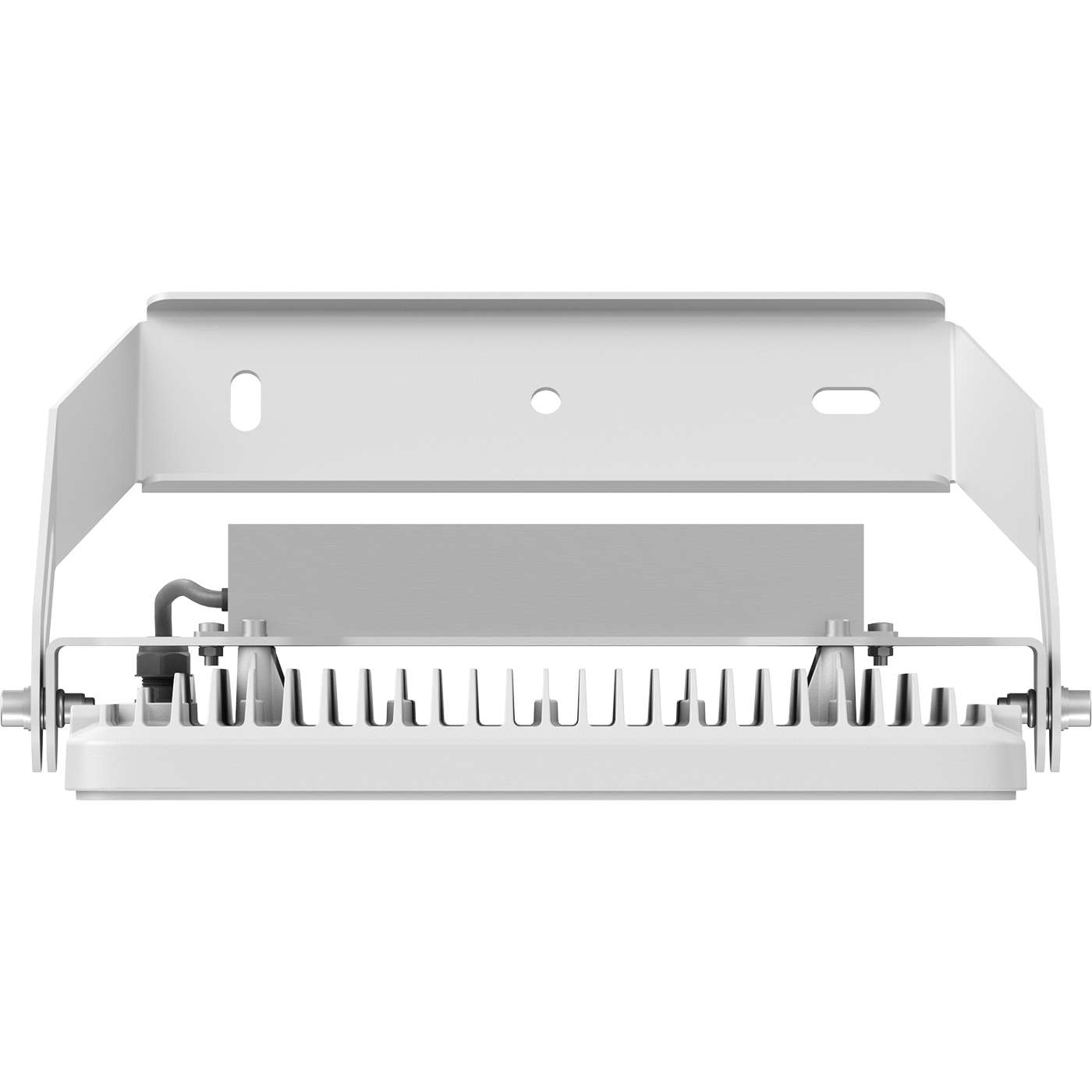

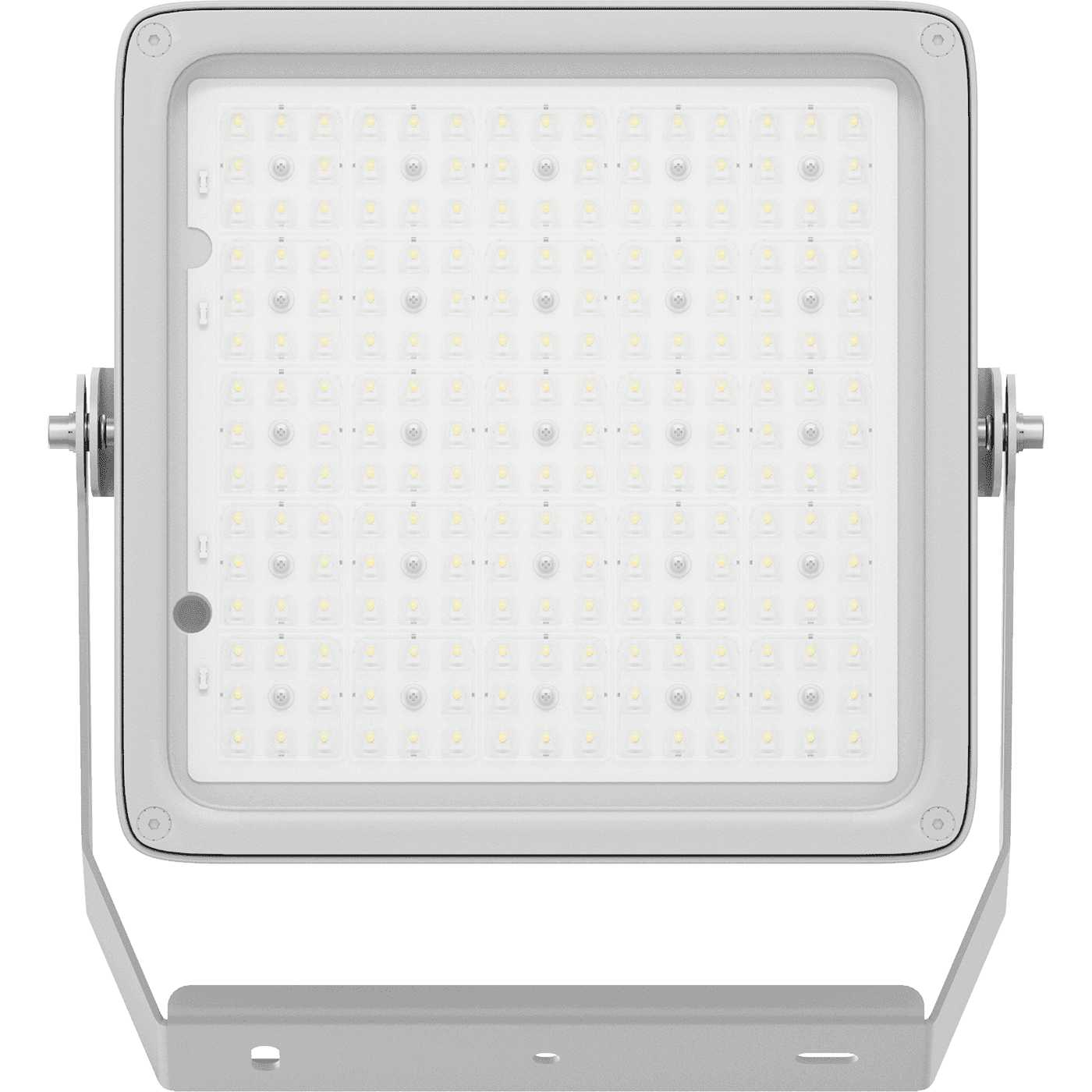

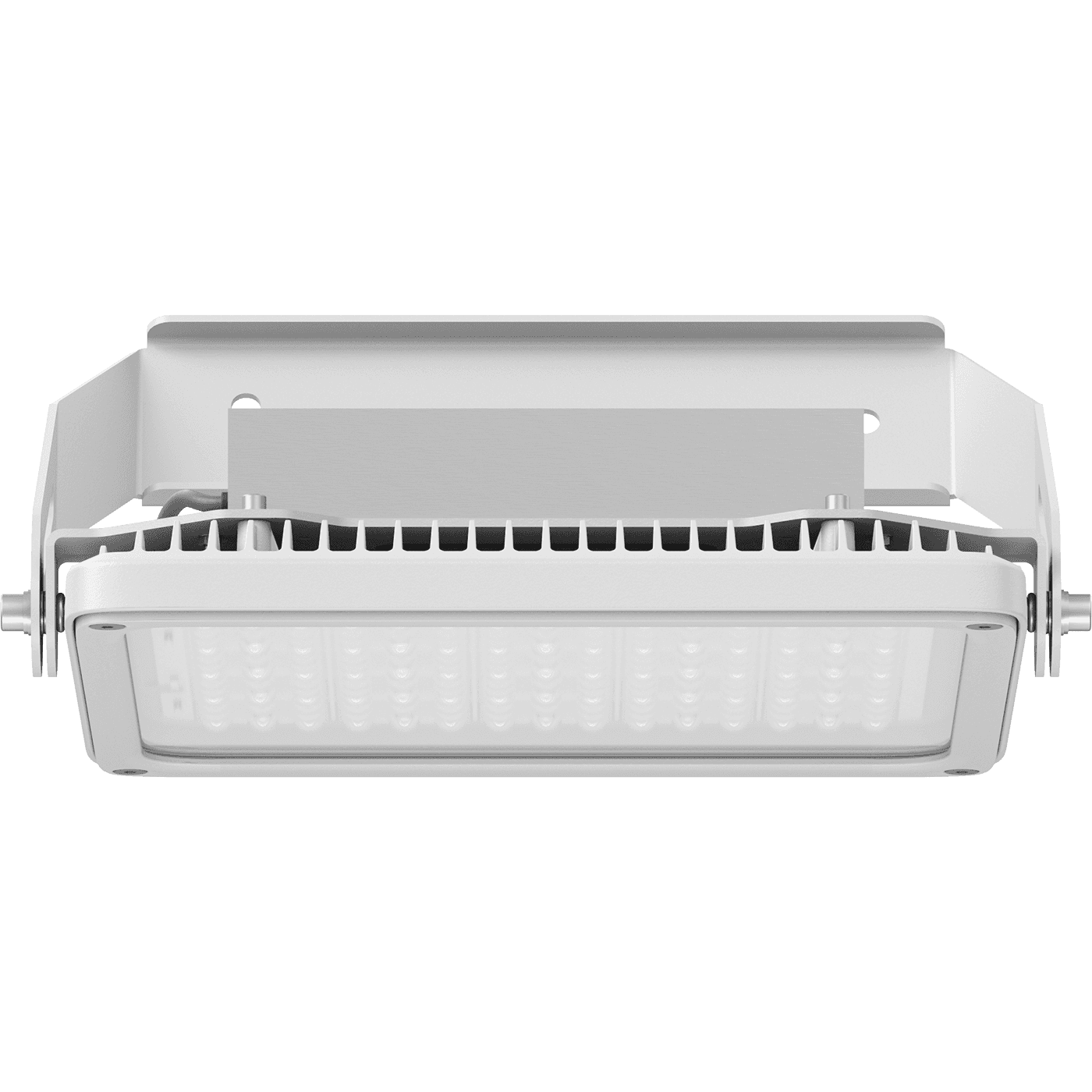

ATHLET 260W A30 740 WH SBL
ATHLET 260W A30 740 WH SBL
280 Wluminaire power
39800 lmlight flow
142 lm/Wenergy efficiency
code1875000090
beam angleA30
color temperature4000
weight8 kg
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
280 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
luminaire power
280 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
8 kg
length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
220 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1875000090
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
142 lm/W
color rendition index (CRI)
>70
light flow
39800 lm
flickering factor
<5%
beam angle
A30
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
сертификаты
media

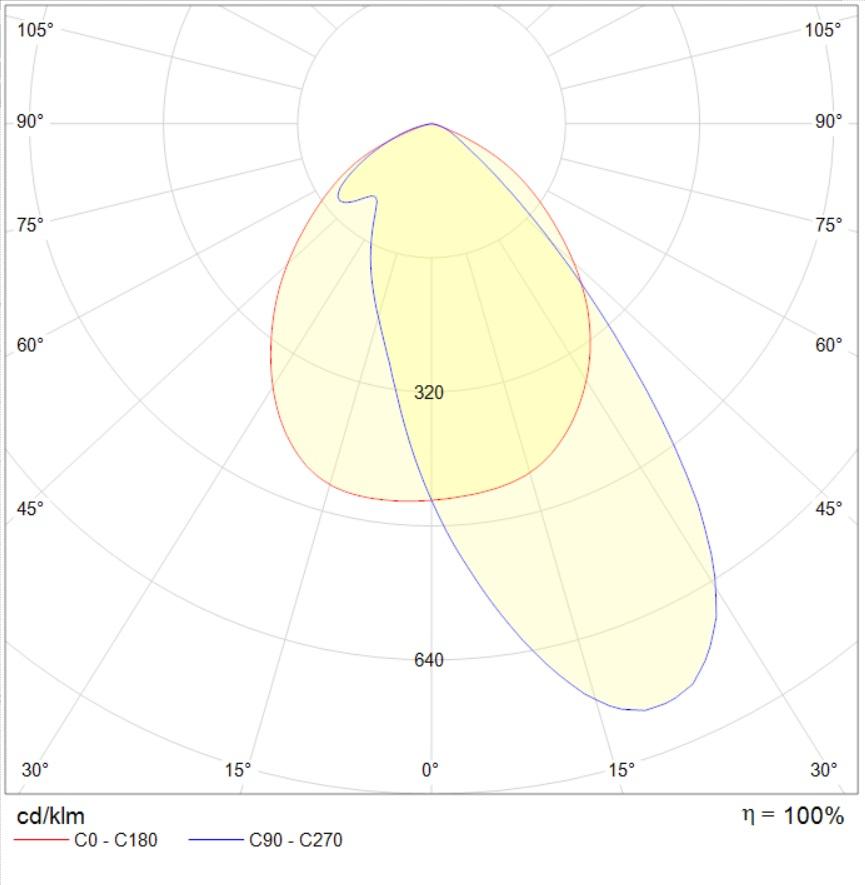

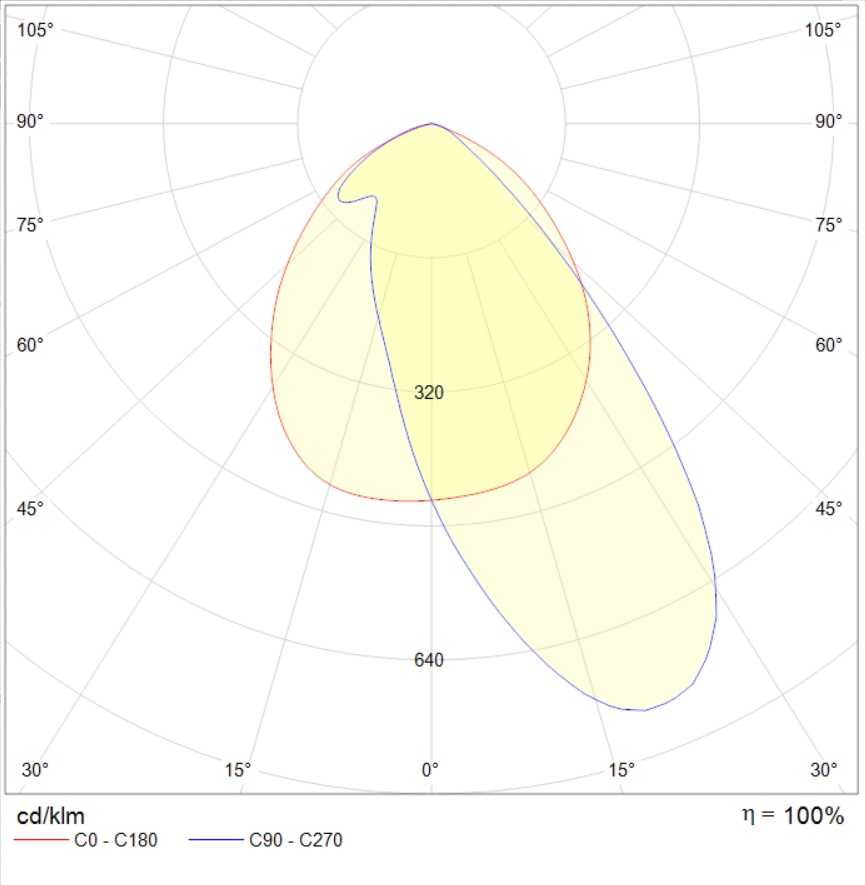

photometric files
ies107 kB
jpg82.3 kB
ldt66 kB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
media
brochure4.9 mB
