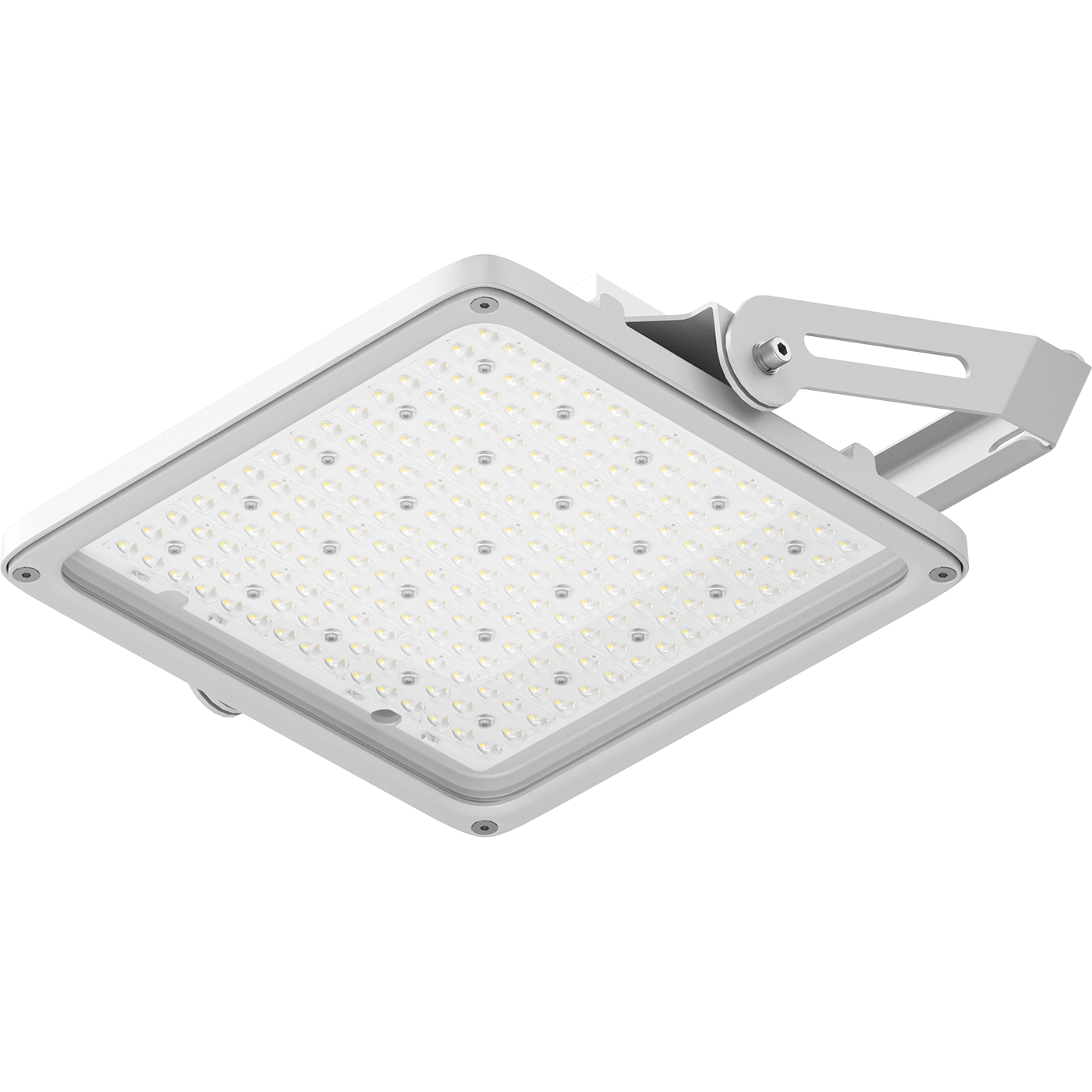

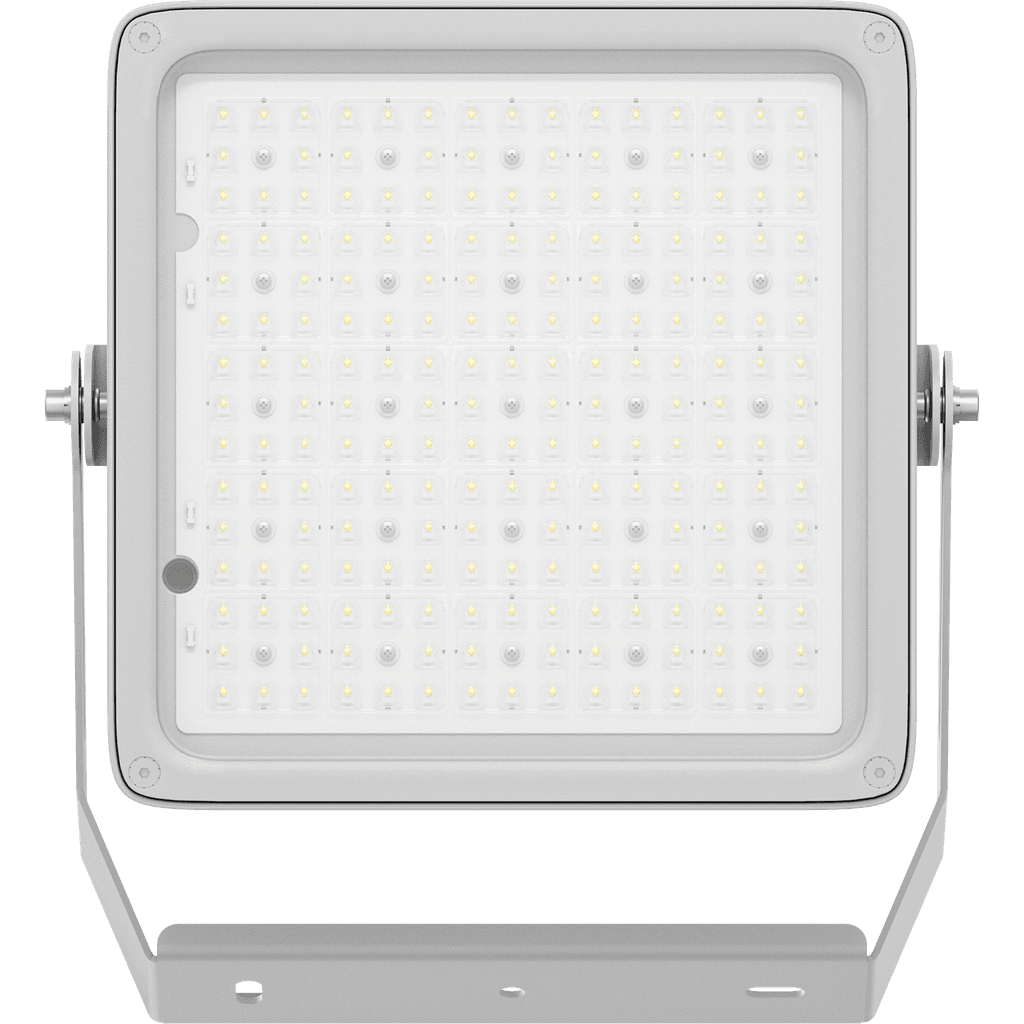

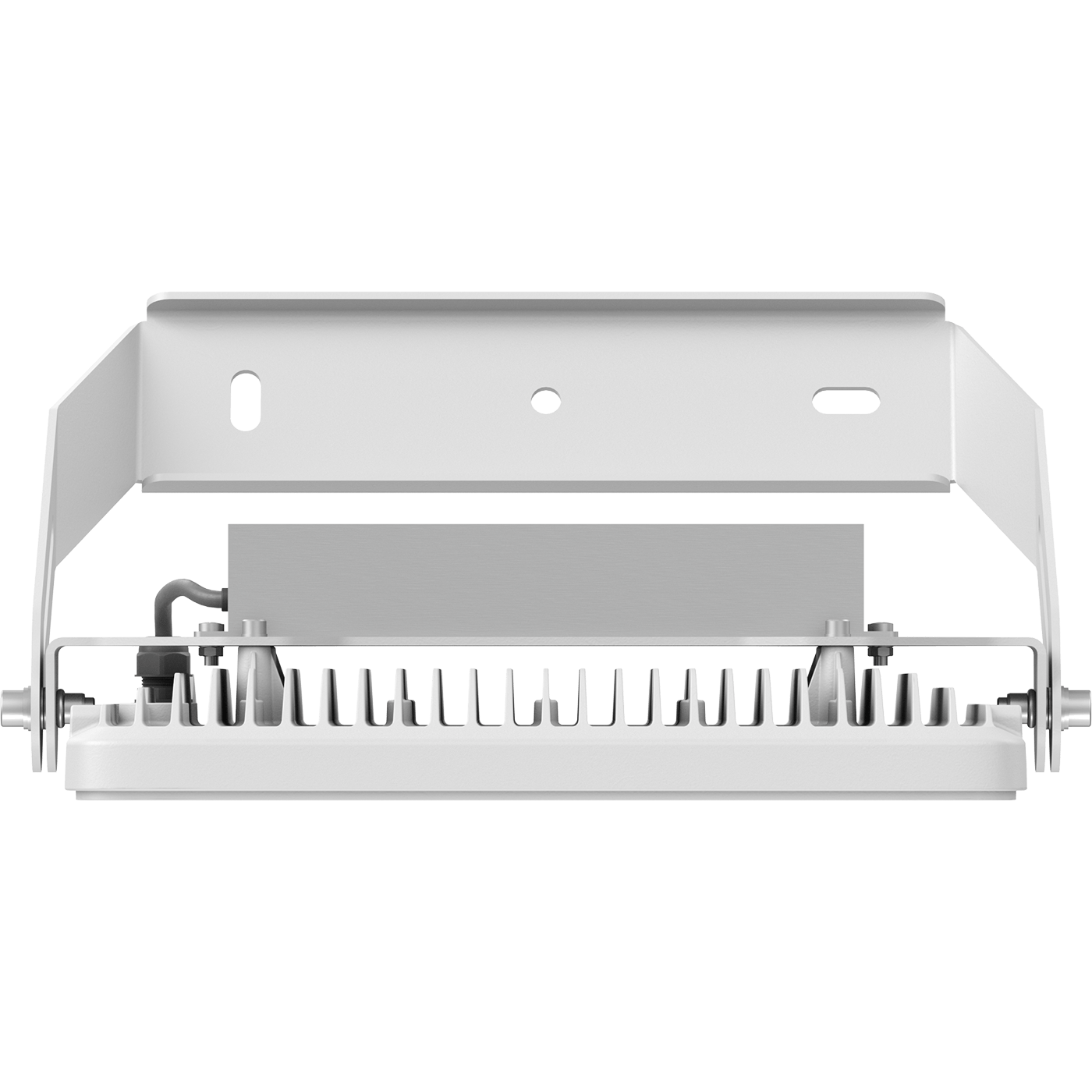

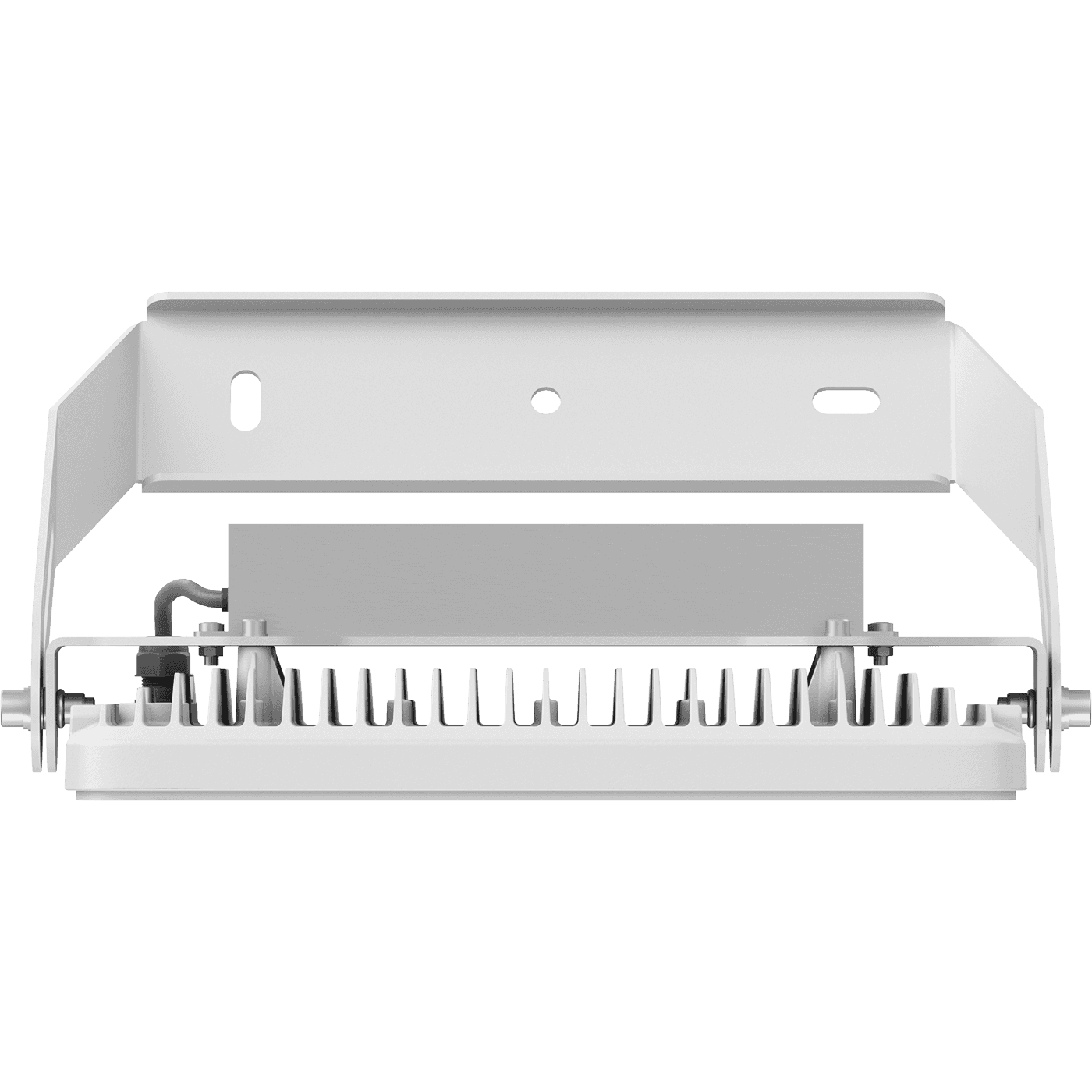

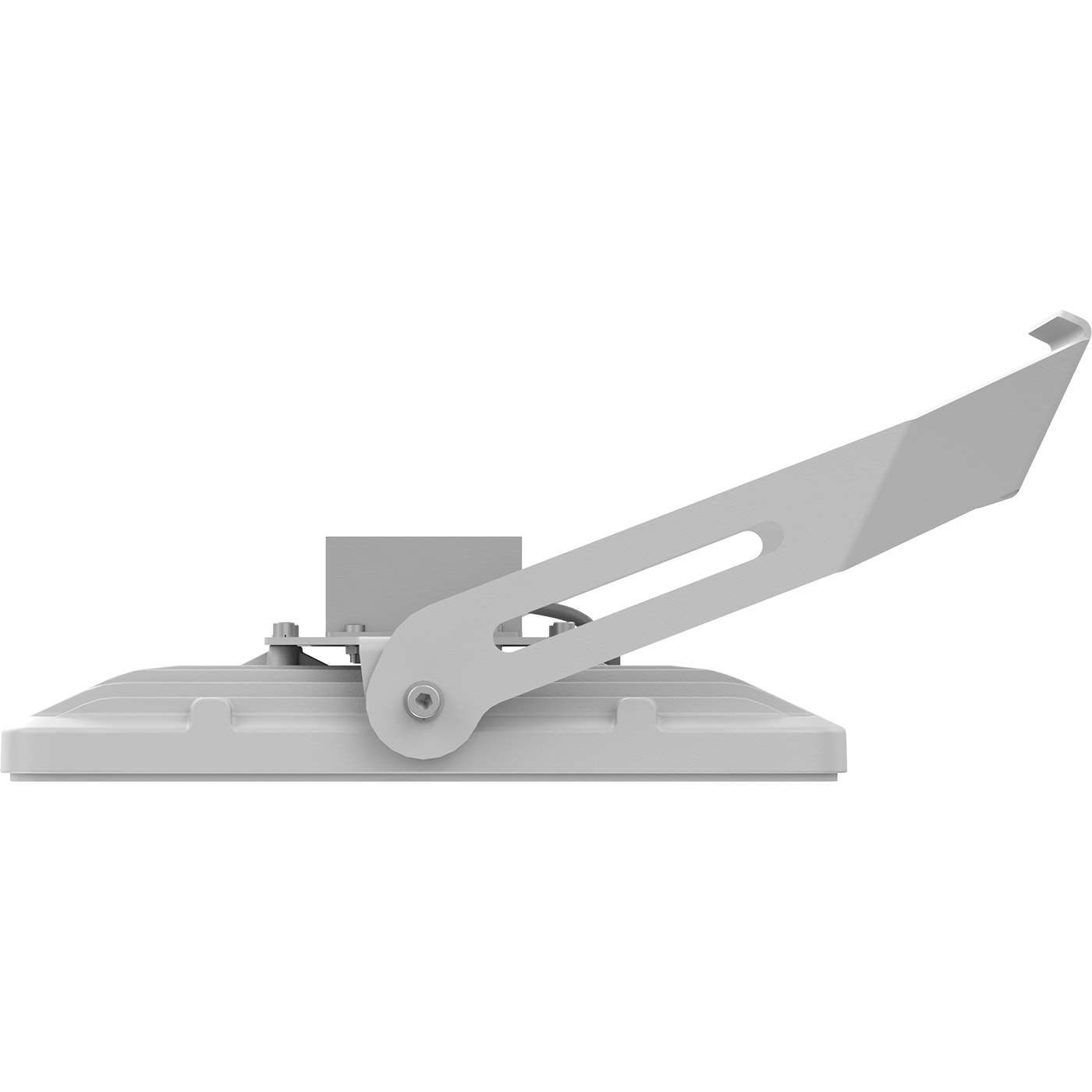

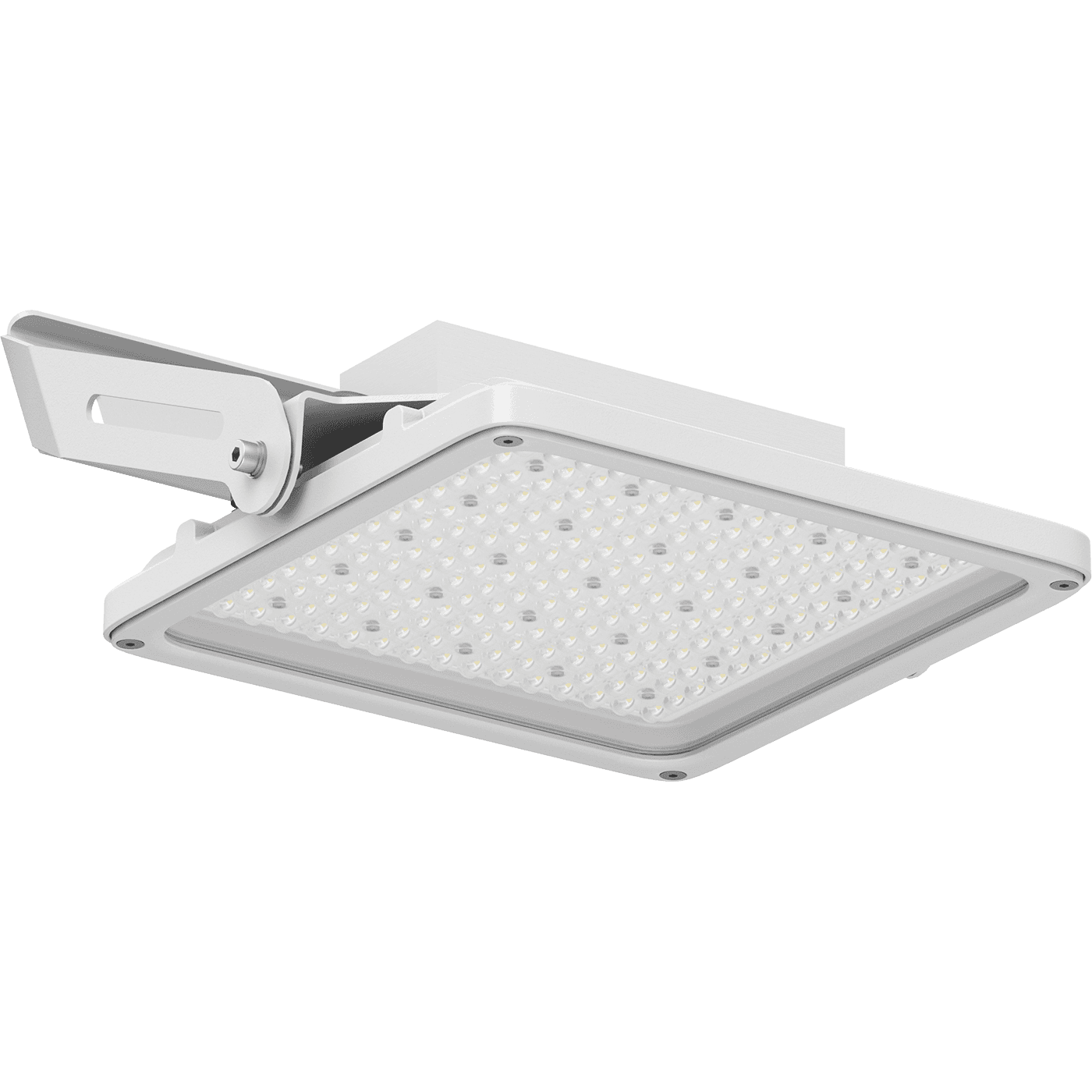

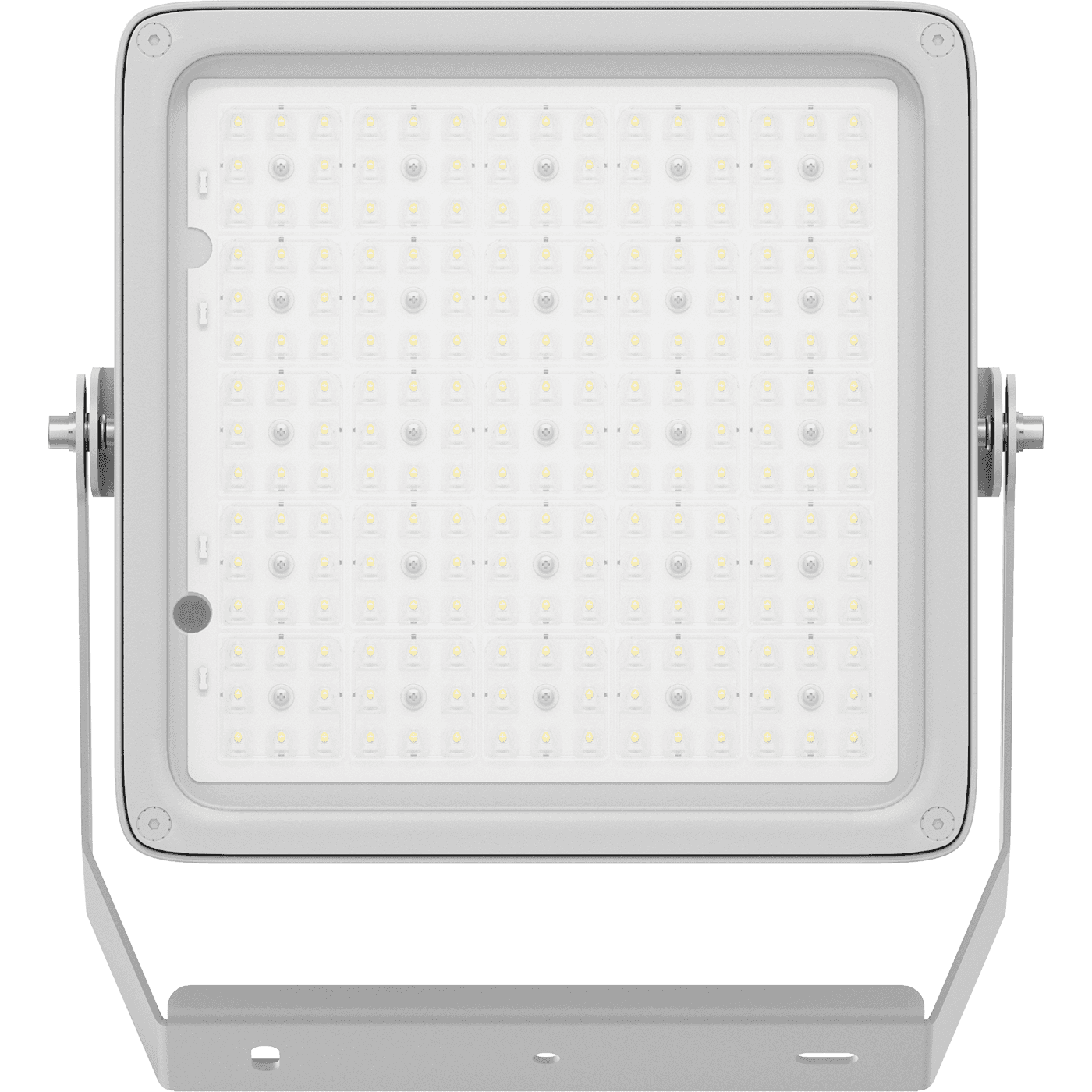

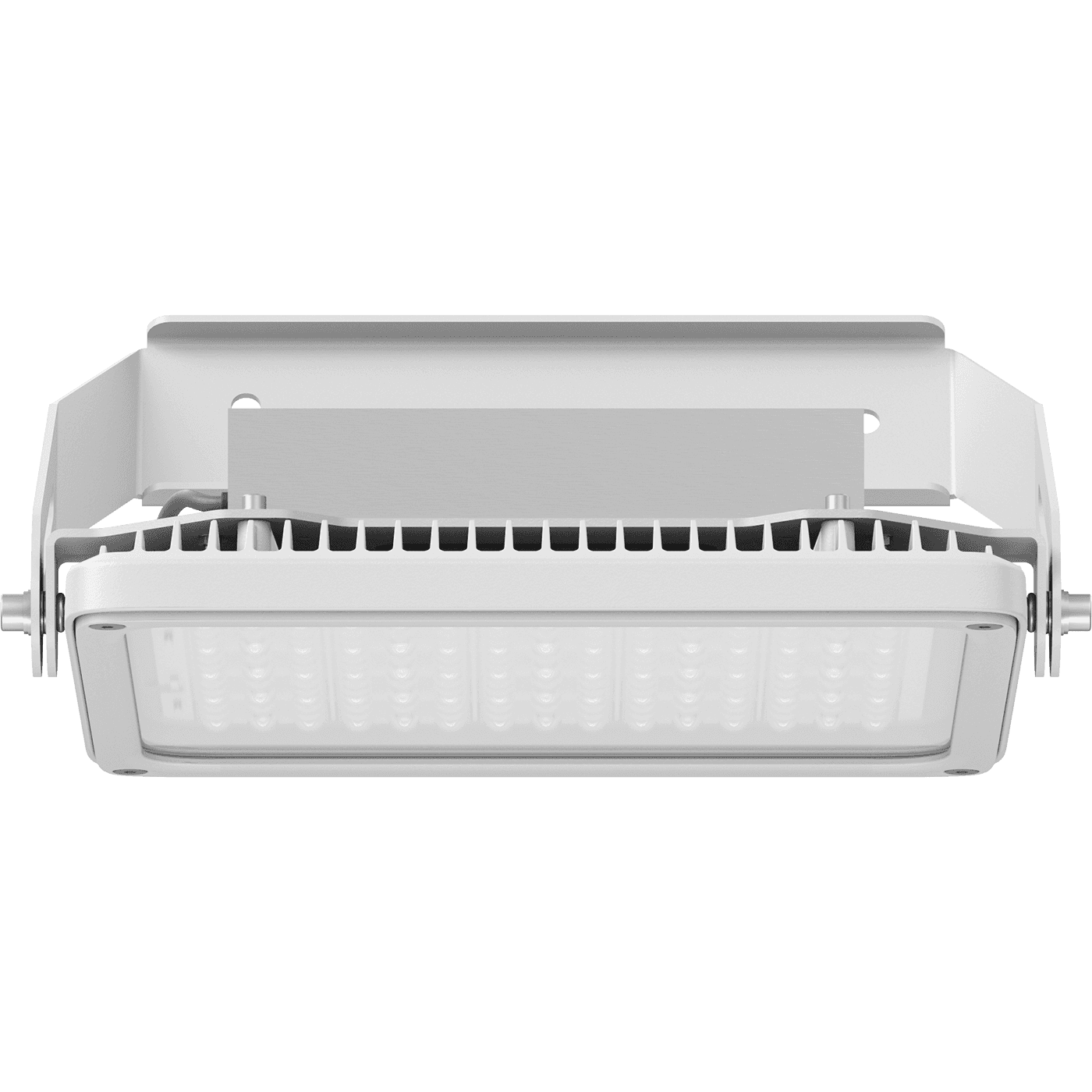

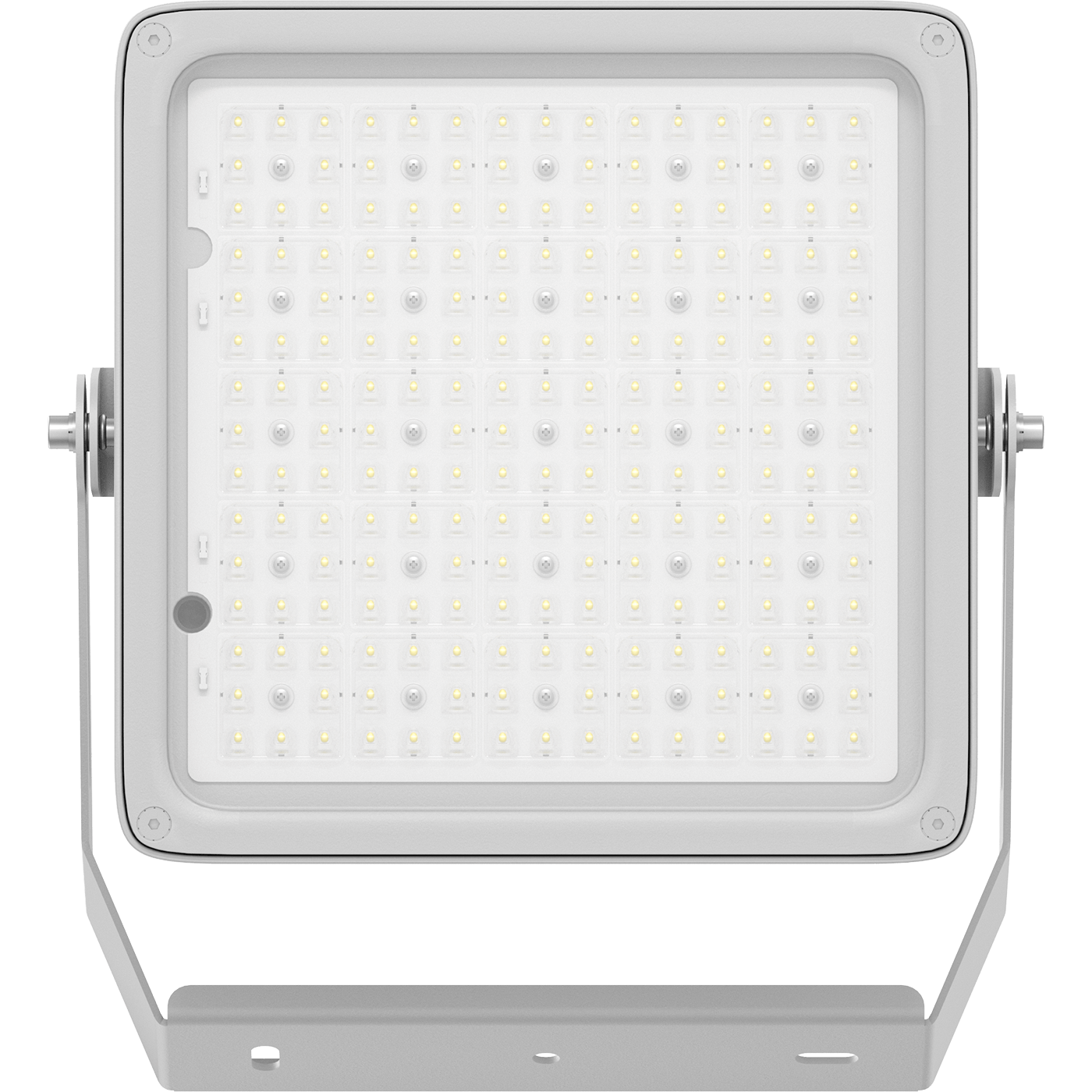

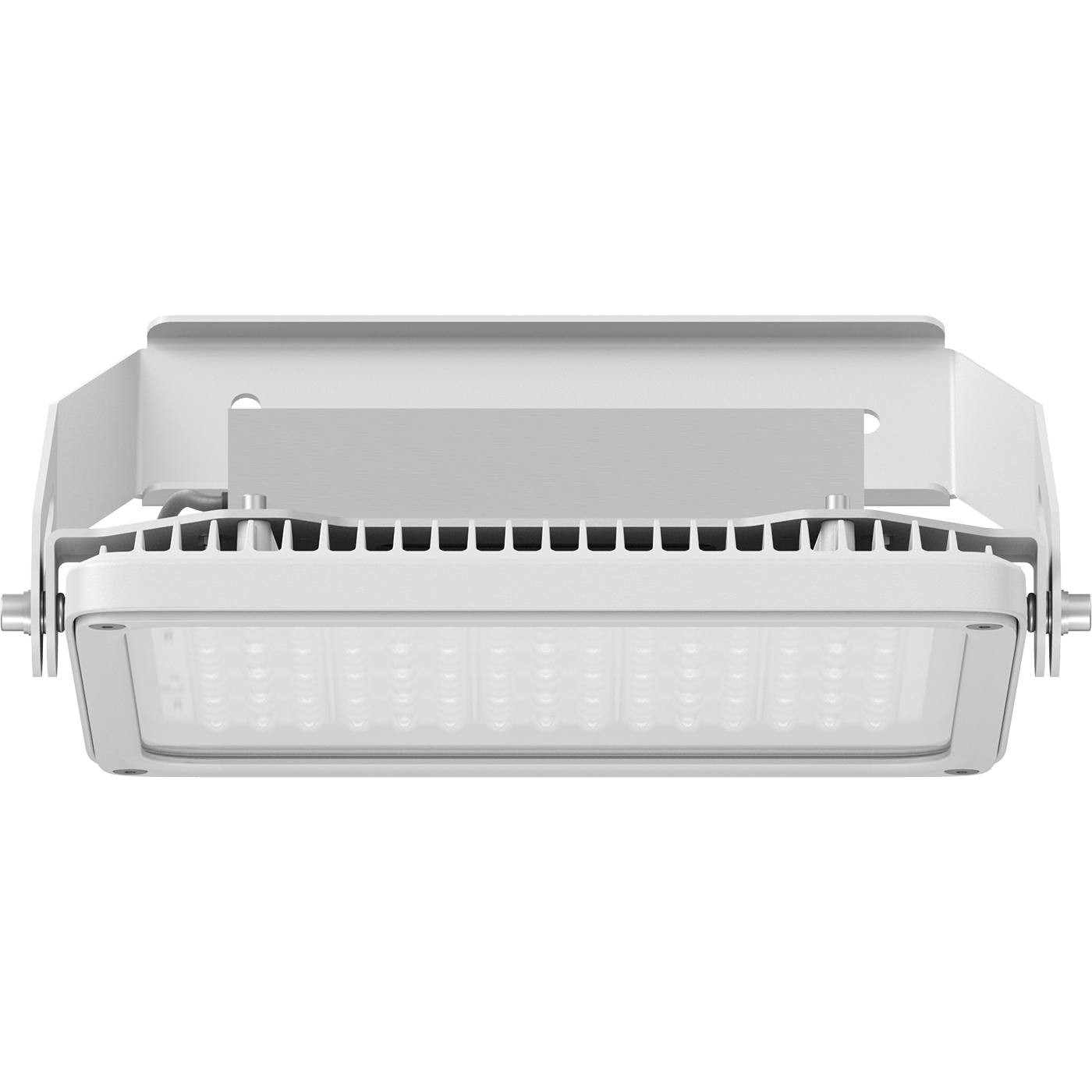

ATHLET 100W A30 750 WH SBL
ATHLET 100W A30 750 WH SBL
108 Wluminaire power
17200 lmlight flow
159 lm/Wenergy efficiency
code1875001900
beam angleA30
color temperature5000
weight8 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
33 Astarting current pulse time, µs
380 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-300 Vsupply voltage, direct current
90-300 Vluminaire power
108 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
33 A
starting current pulse time, µs
380 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-300 V
supply voltage, direct current
90-300 V
luminaire power
108 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
8 kg
length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
220 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1875001900
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
159 lm/W
color rendition index (CRI)
>70
light flow
17200 lm
flickering factor
<2%

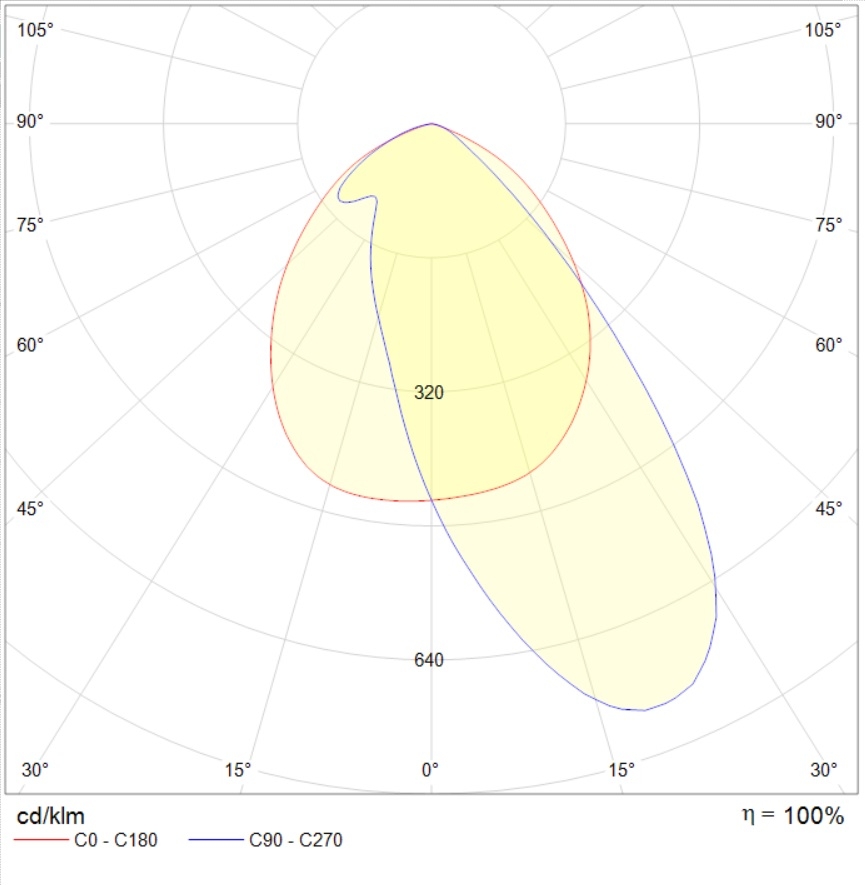

beam angle
A30
color temperature
5000
light source type
LED
emission color
Белый
model files
model files

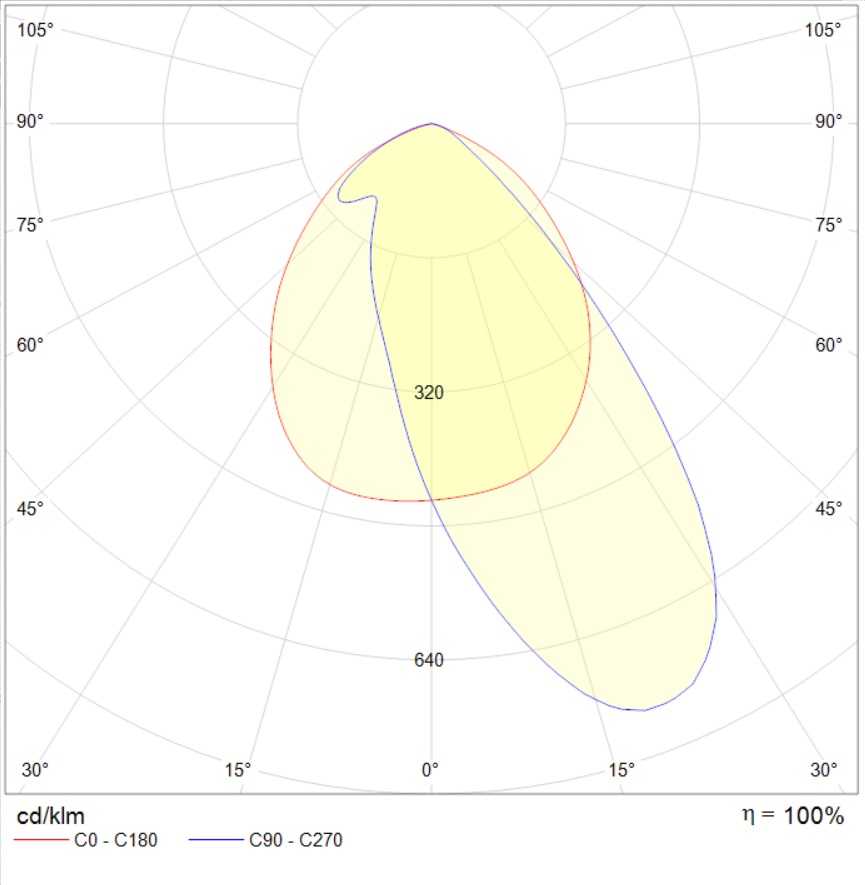

photometric files
сертификаты
media
photometric files
ies107 kB
jpg82.3 kB
ldt66 kB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011285.6 kB
Declaration of Conformity EAEU TR 037/2016505.1 kB
media
brochure4.9 mB
