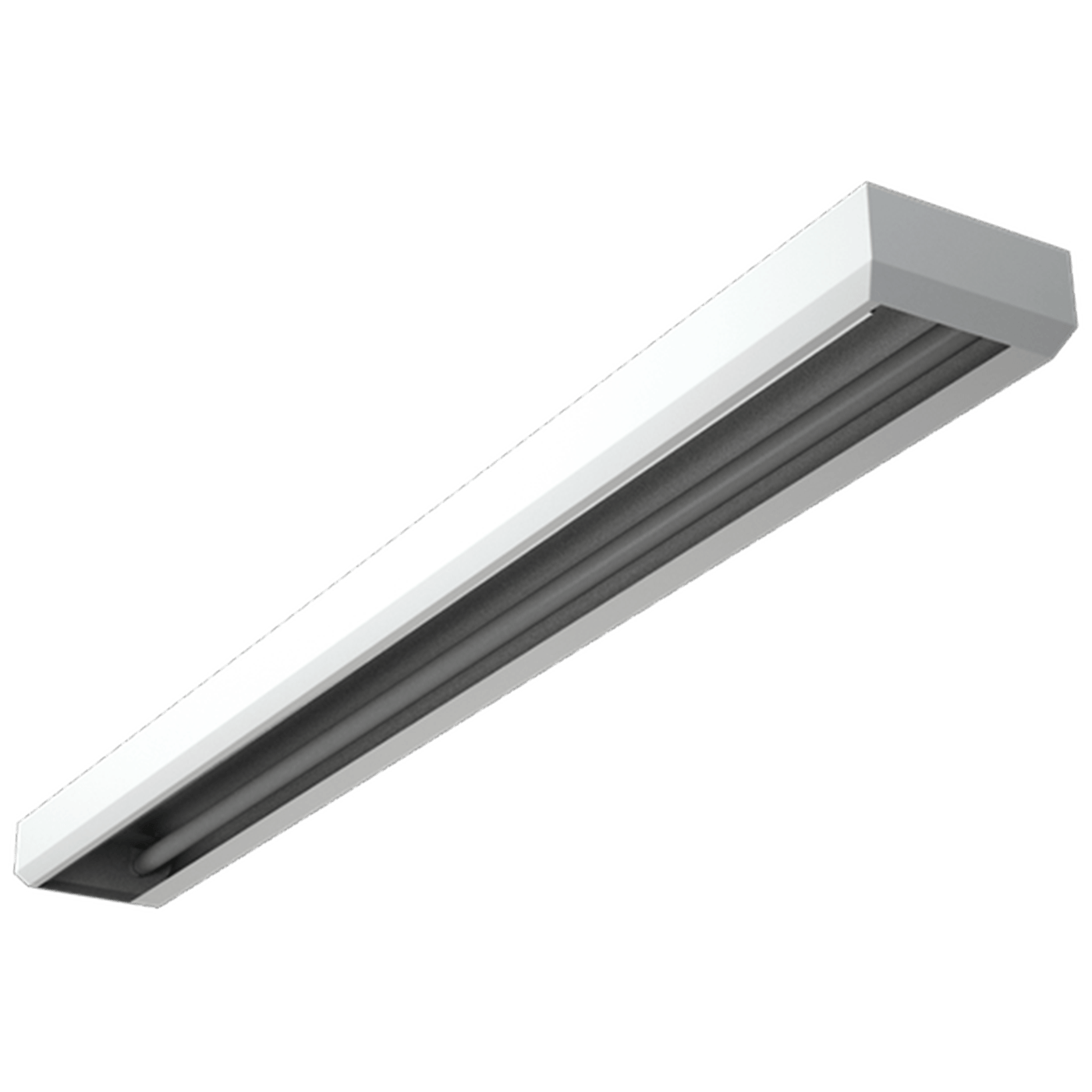

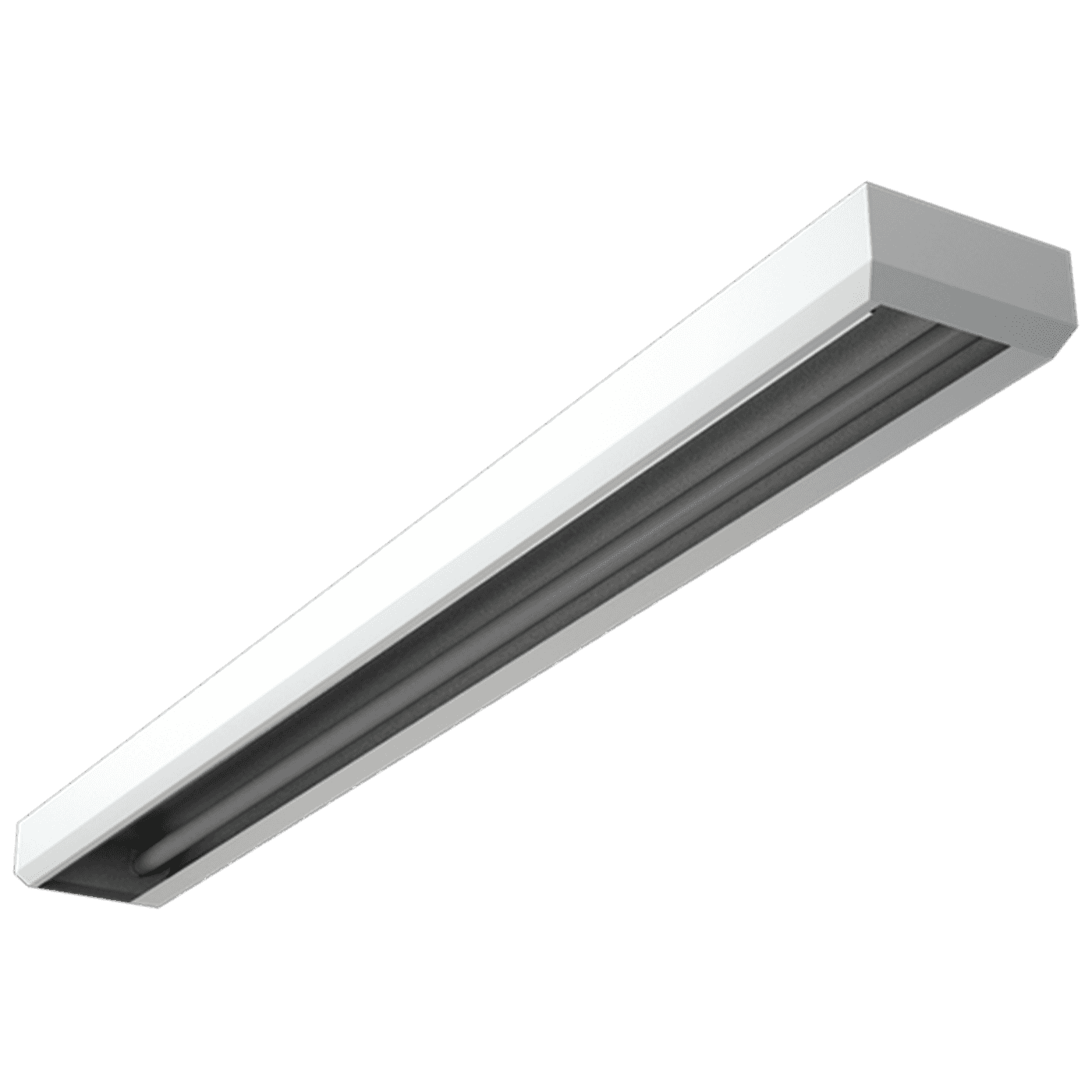

ASM/S 136 HF
ASM/S 136 HF
36 Wluminaire power
3250 lmlight flow
53 lm/Wenergy efficiency
code1285000070
number of lamps1
performance factor59
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
36 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
36 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
3.08 kg

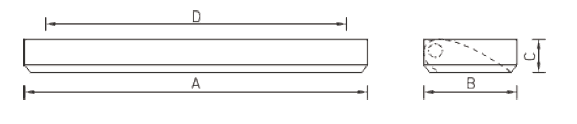

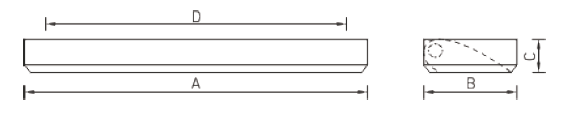

length, mm
1240 mm
width, mm
180 mm
height, mm
80 mm
housing color
Белый
installation length, mm
1050 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
G13
number of lamps
1
ballast
ЭПРА
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A
service life, hour
30 000 h
code
1285000070
illuminating
light flow
3250 lm
flickering factor
<5%
energy efficiency
53 lm/W
light source type
ЛЛ
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS24.9 kB
model 3dMax792 kB

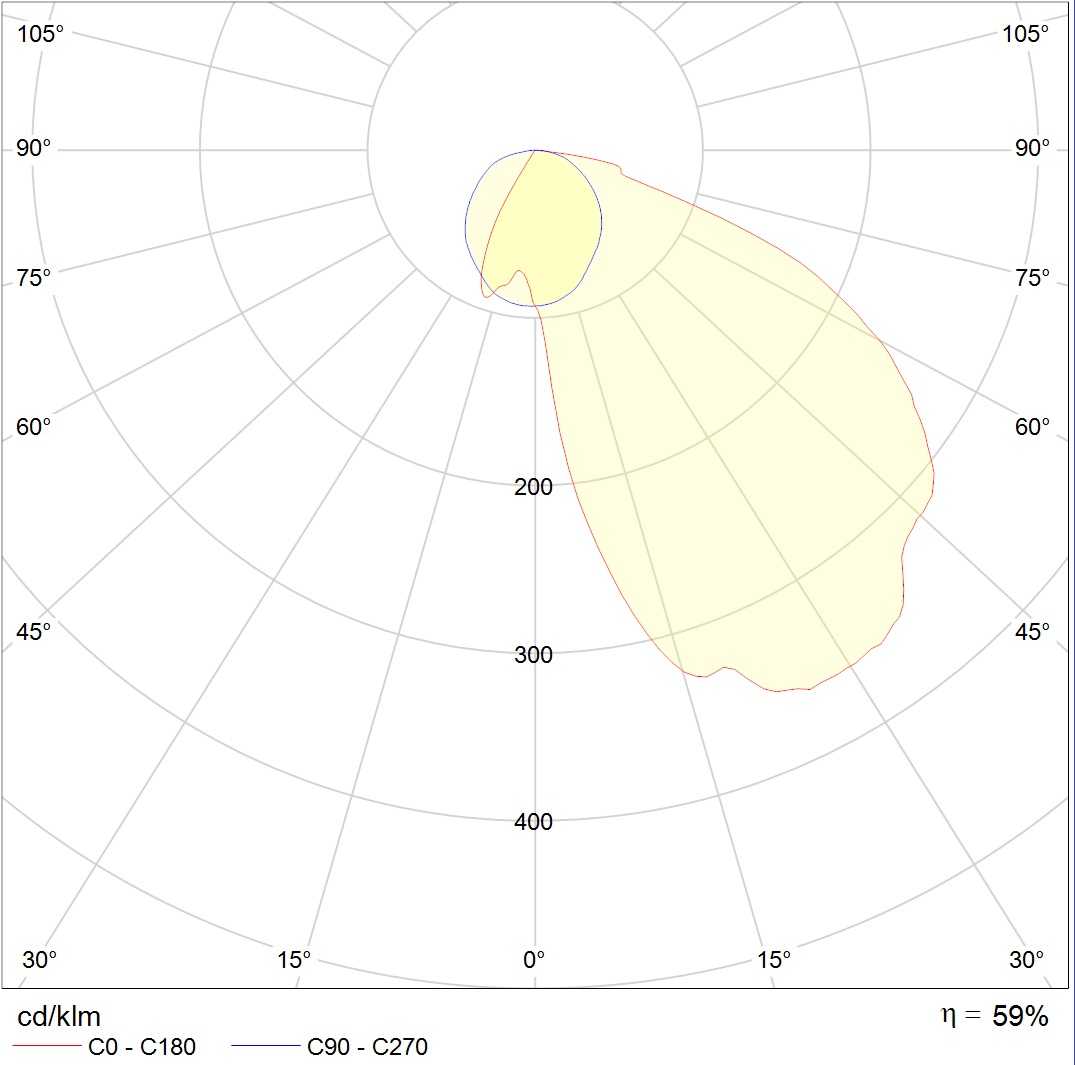

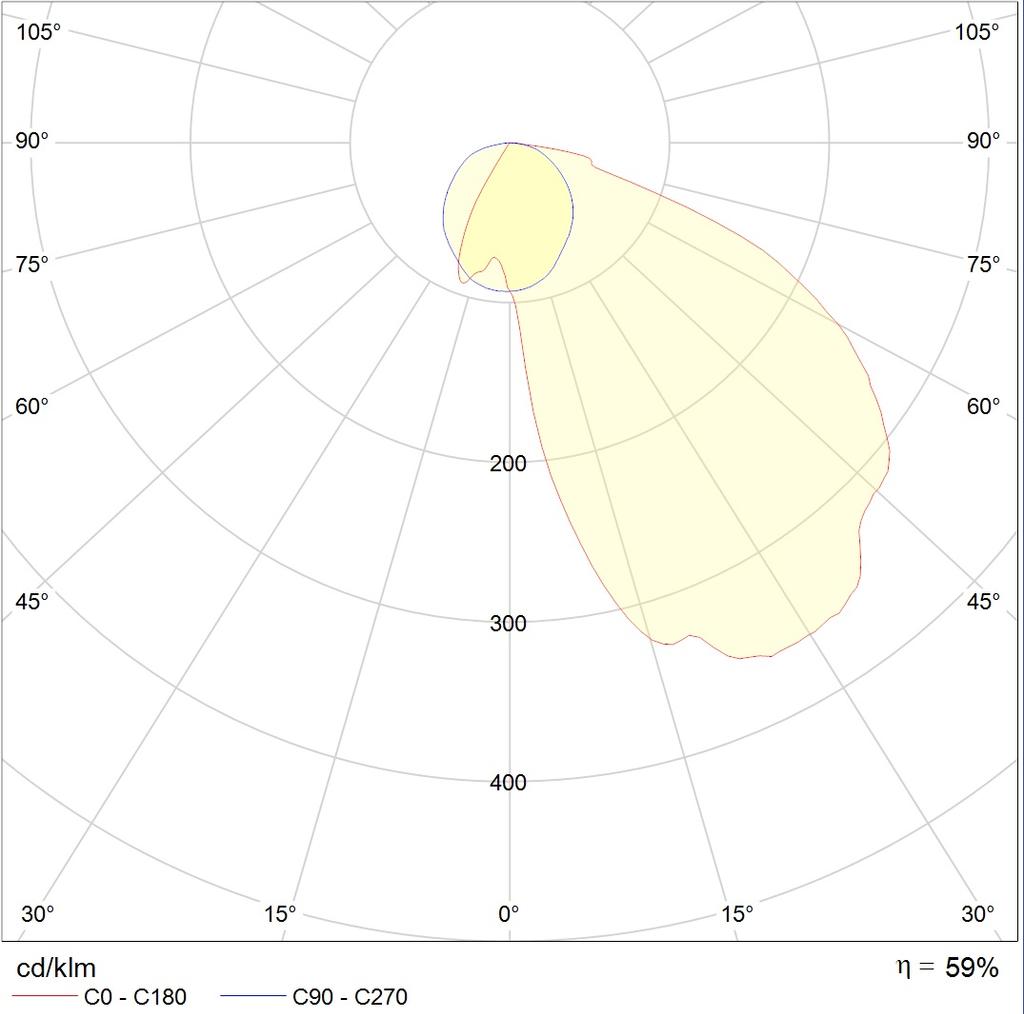

photometric files
ies263.2 kB
jpg124.2 kB
ldt169.2 kB
documents
passport975.7 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
accessories
Mounting kit X40.013kgarticle: 2995000040
Wall bracket BAT/ASM0.61kgarticle: 8101000080
