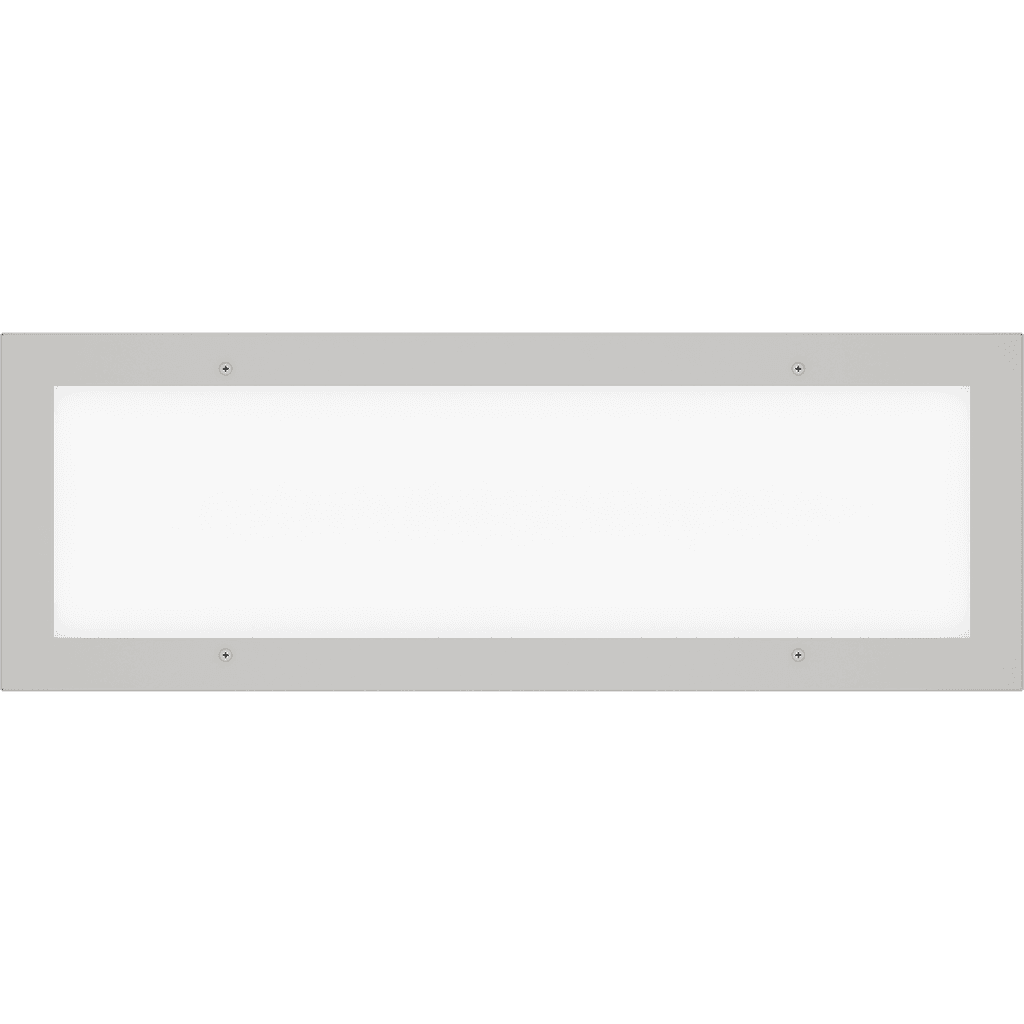

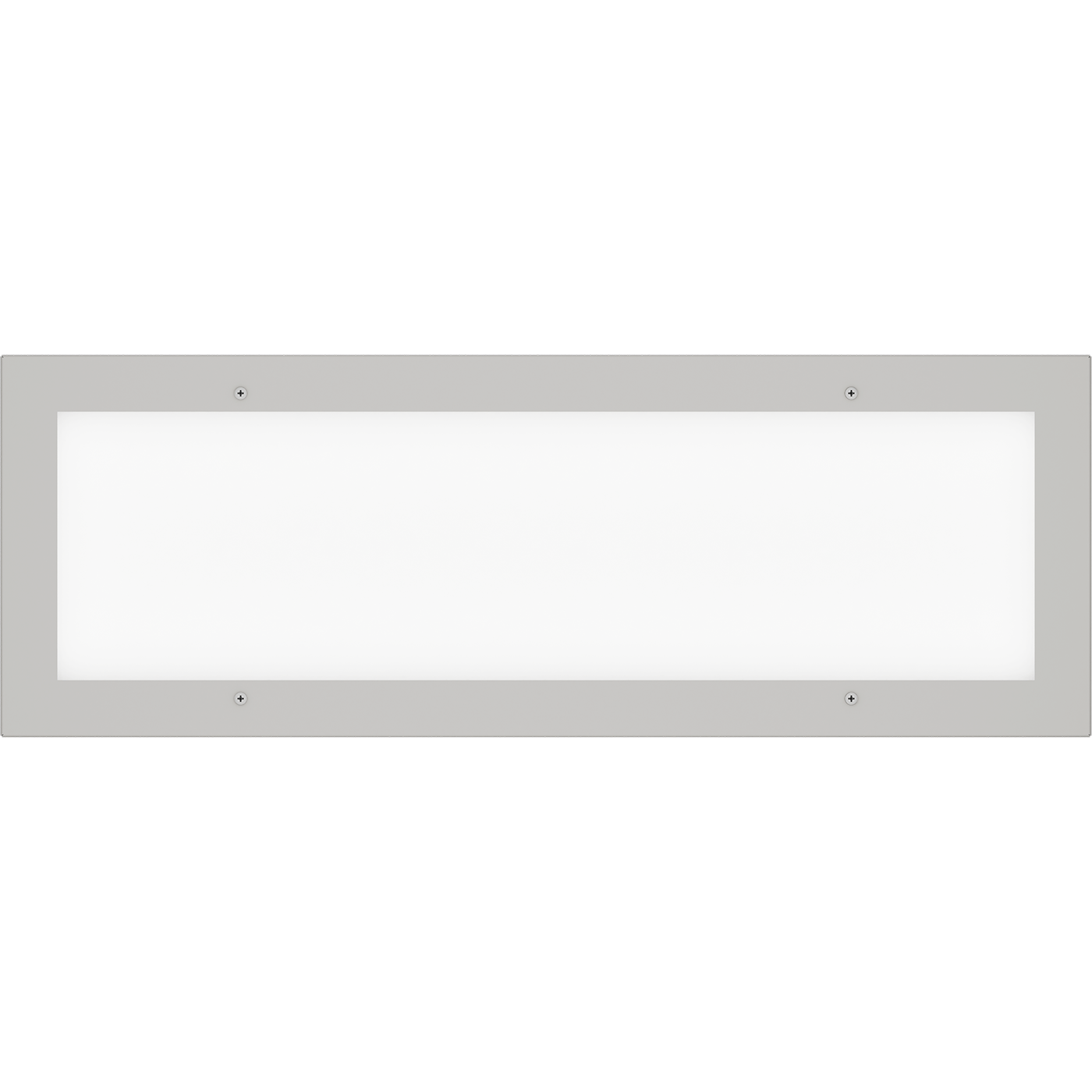

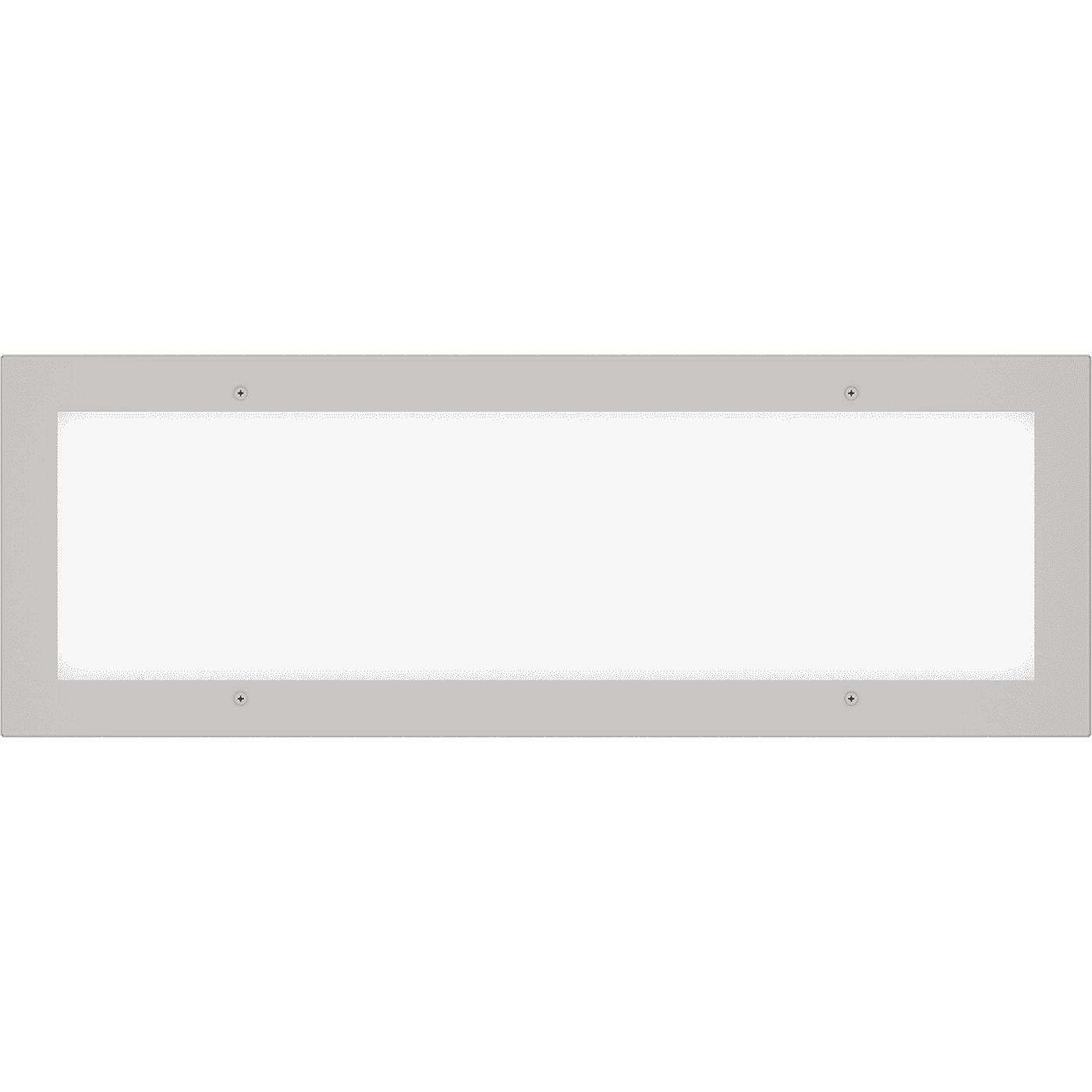

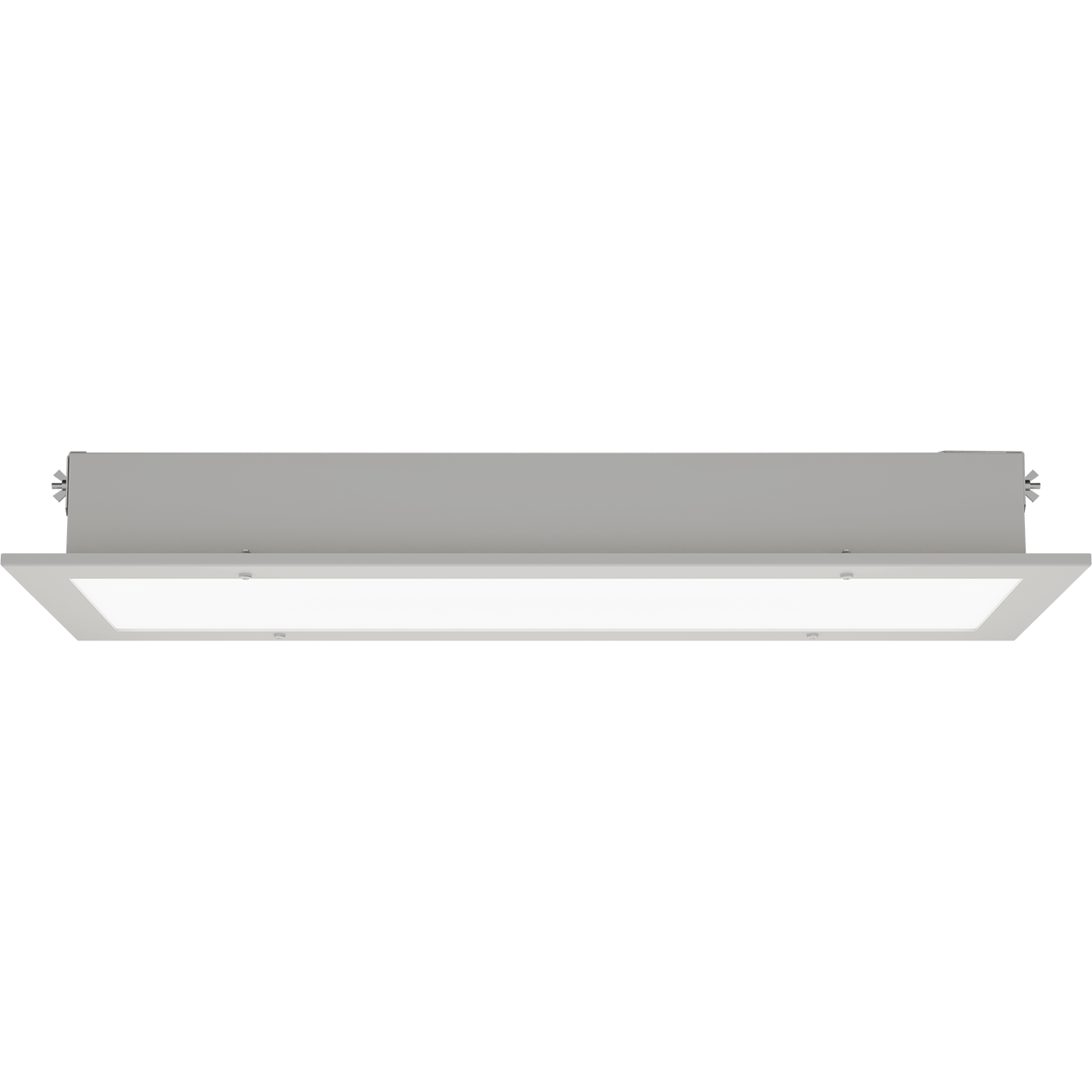

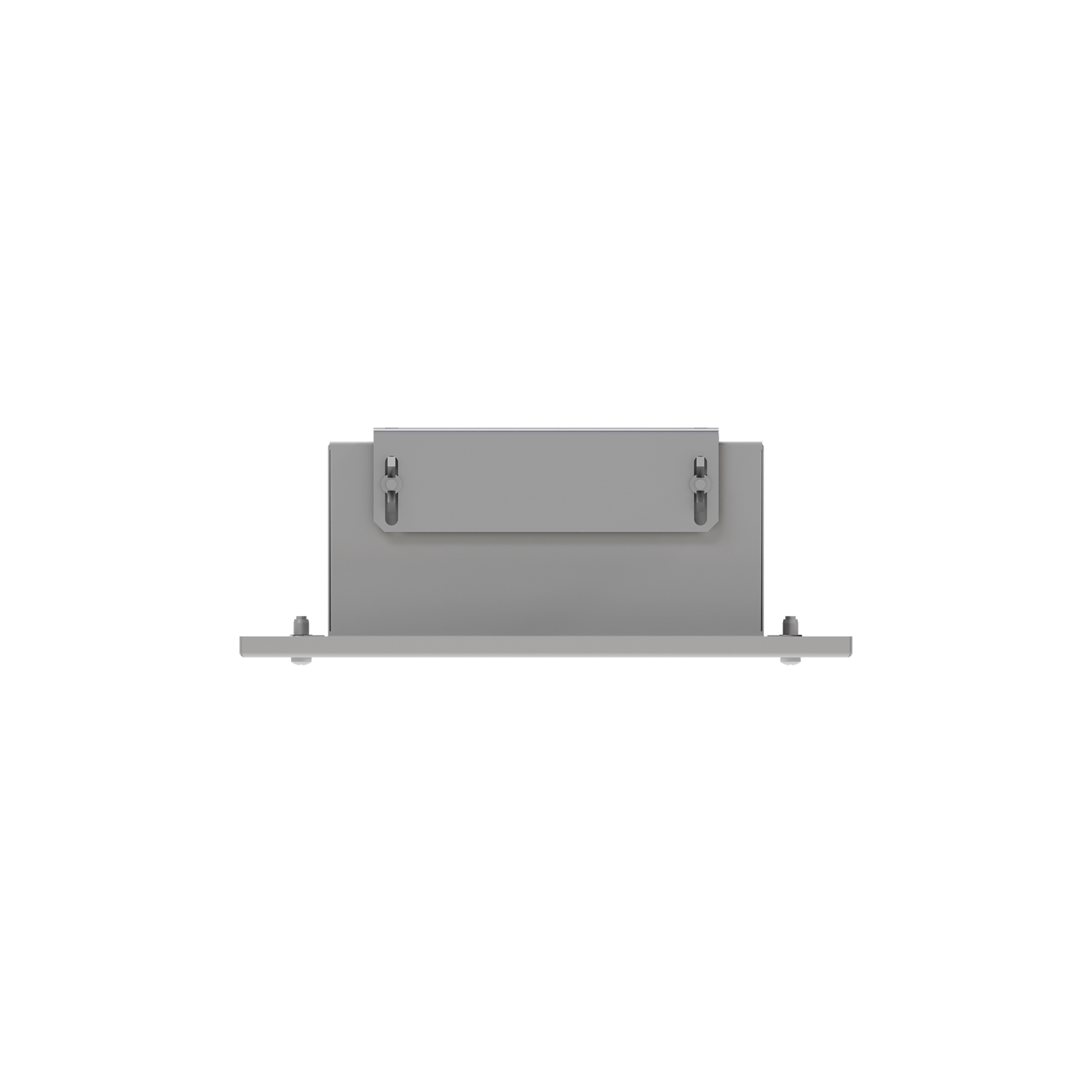

ALD LED MARINE 600 EM 4000K
ALD LED MARINE 600 EM 4000K
24 Wluminaire power
2000 lmlight flow
83 lm/Wenergy efficiency
code1835000110
color temperature4000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80light flow
2000 lmenergy efficiency
83 lm/Wbeam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
2000 lm
energy efficiency
83 lm/W
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
24 W
electric shock protection
I
power factor
> 0,90
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
material
Сталь
width
240 mm
height
90 mm
installation width
200 mm
housing color
Белый
length
680 mm
weight
4.6 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
ОМ1
emergency
operating time in emergency mode
1 h
common
code
1835000110
ETIM class
Настенно-потолочный светильник
energy efficiency class
A
service life
50 000 h
temperature range
от -40 до +45 C
model files
model files

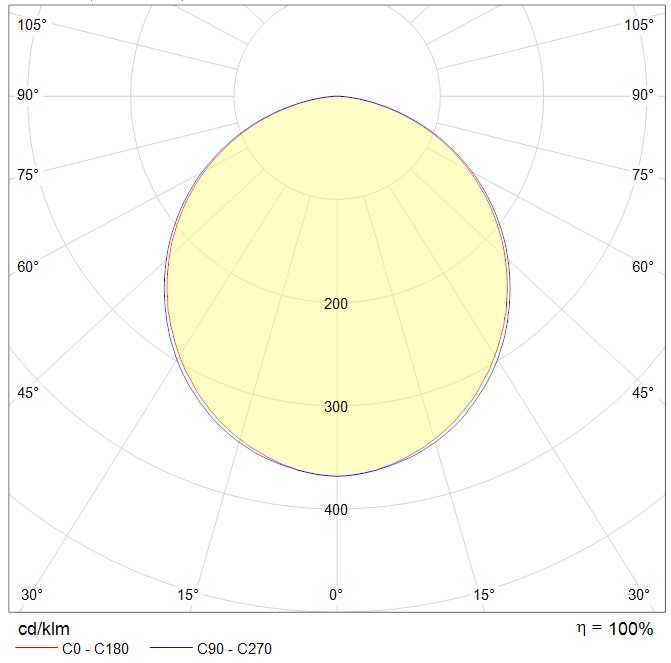

photometric files
сертификаты
photometric files
ies134.1 kB
jpg61 kB
ldt86.3 kB
сертификаты
Russian origin277.7 kB
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011530.5 kB
Declaration of Conformity EAEU TR 037/2016508.2 kB
